Home / Products / Deep Groove Ball Bearing

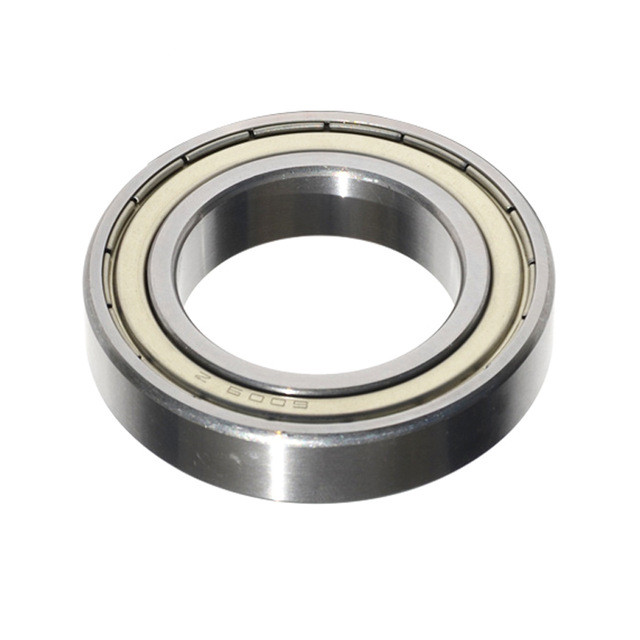

6000 Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

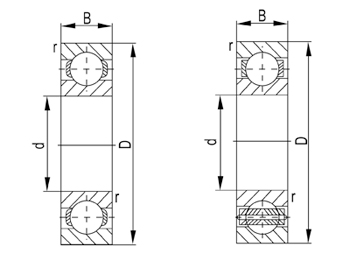

deep groove ball bearings gongcheng.jpg


Bearing No.Boundary dimensionsBasic load ratings (kN)Limiting speedMass
mmDynamicStaticrpmKg
dDBrs minCrCorGreaseOil≈
6000102680.34.581.9829000340000.019
6001122880.35.12.3826000300000.022
6002153290.35.582.8522000260000.031
60031735100.363.2520000240000.040
60042042120.69.385.0218000210000.068
60052547120.6105.8515000180000.078
6006305513113.28.313000150000.110
6007356214116.210.512000140000.148
6008406815117.211.810000120000.185
600945751612114.89200110000.230
601050801612216.2840098000.258
60115590181.130.221.8770090000.362
60126095181.131.524.2700083000.385
601365100181.130.525.2650077000.435
601470110201.138.130.9610071000.602
601575115201.139.633.5570067000.638
601680125221.147.639.8530062000.850
601785130221.149.543.1500059000.890
601890140241.558.249.7470056001.160
601995145241.560.453.9450053001.210
6020100150241.560.254.2420050001.250
602110516026272.365.8400047001.590
60221101702828273380045001.960
60241201802828579.5350041002.070
6026130200332106101320038003.160
6028140210332110109300035003.350
6030150225352.1126126280032004.080
6032160240382.1143144260030005.050
6034170260422.1168172240028006.760
6036180280462.1189199230027008.800
6038190290462.1197215210025009.180
6040200310512.12182432000240011.900
