Home / Products / Deep Groove Ball Bearing

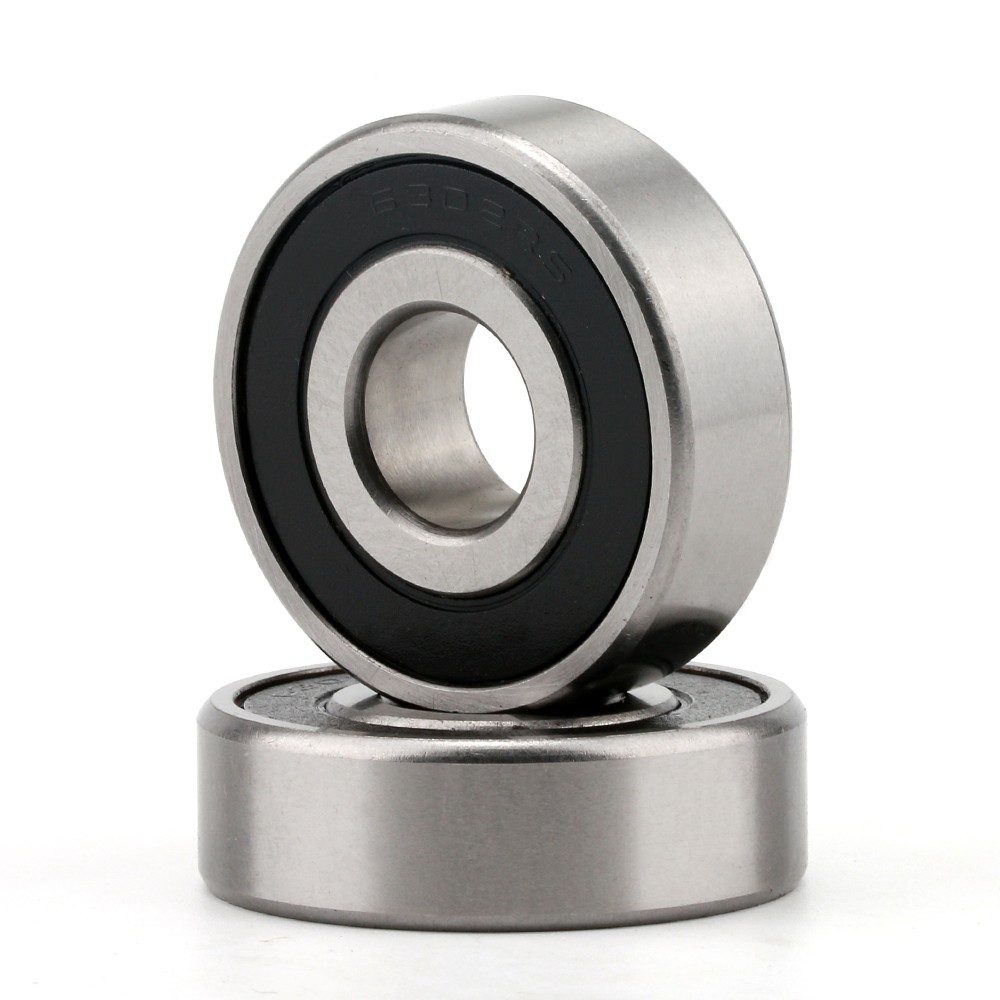

6300 Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types

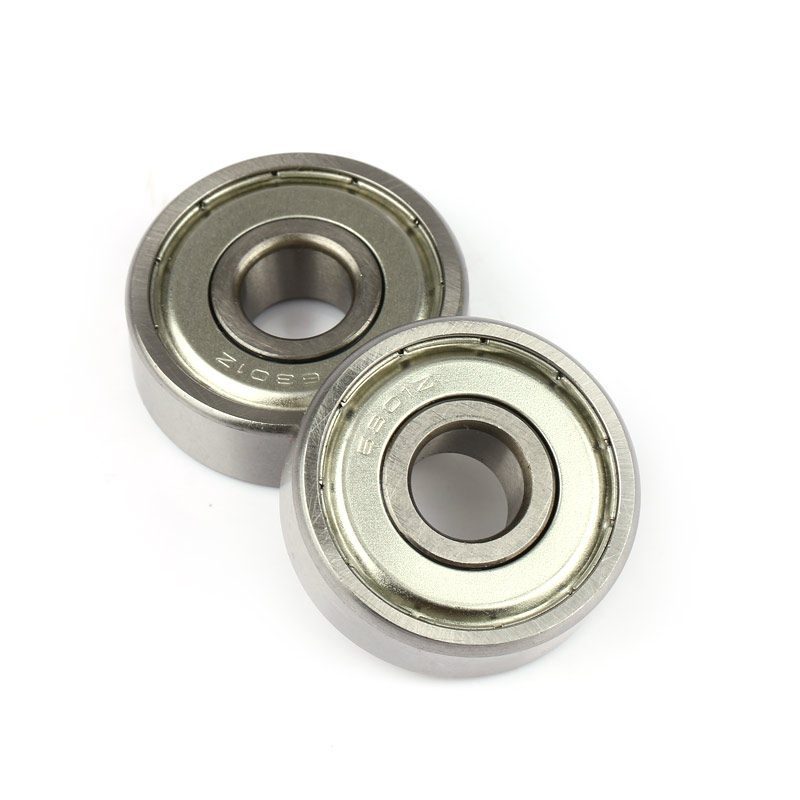

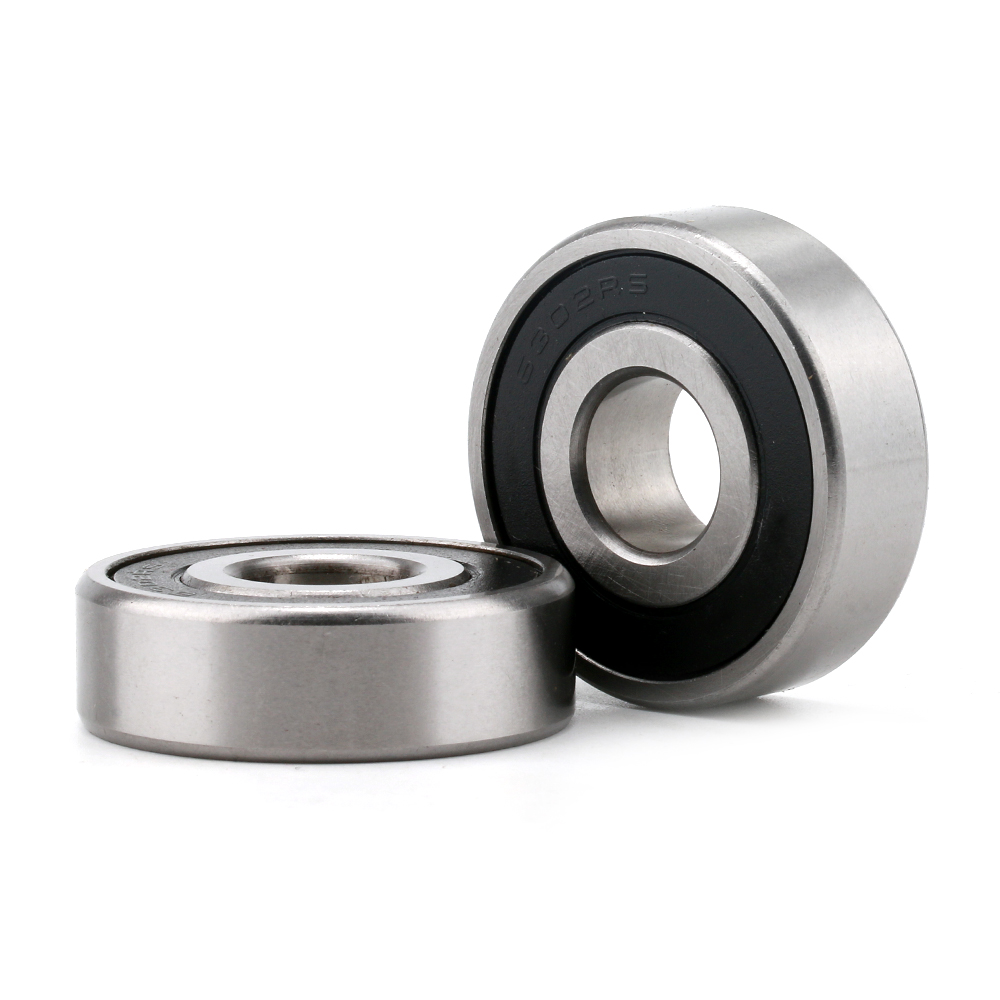

Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

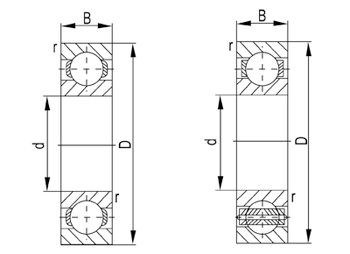

deep groove ball bearings gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings (kN)Limiting speedMass
mmDynamicStaticrpmKg
dDBrs minCrCorGreaseOil≈
63001035110.67.653.4823000270000.053
630112371219.725.0820000240000.061
6302154213111.55.4217000210000.080
6303174714113.56.5816000190000.109
63042052151.115.87.8814000170000.142
63052562171.122.211.512000140000.219
63063072191.12715.210000120000.349
63073580211.533.219.28800100000.455
63084090231.540.824780092000.639
630945100251.552.831.8700082000.873
6310501102726238.3640075001.070
63115512029271.645580068001.370
631260130312.181.952.2540063001.700
631365140332.192.759.9490058002.080
631470150352.110468.2460054002.520
631575160372.111377.2430050003.020
631680170392.112386.7400047003.590
63178518041313396.8380045004.230
631890190433143107360042004.910
631995200453153119330039005.670
6320100215473173141320037007.000
6321105225493184153300036008.050
6322110240503205180290034009.540
63241202605532071852600310012.400
63261302805842292142400280015.300
63281403006242532462200260018.500
63301503206542742842100240022.000
63321603406842782861900230026.000
63341703607243253551800210030.700
63361803807543554051700200035.600
63381904007853554151600190041.000
63402004208054105001500180046.300
63442204608854105201400160060.800
