Home / Products / Deep Groove Ball Bearing
6800 Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types

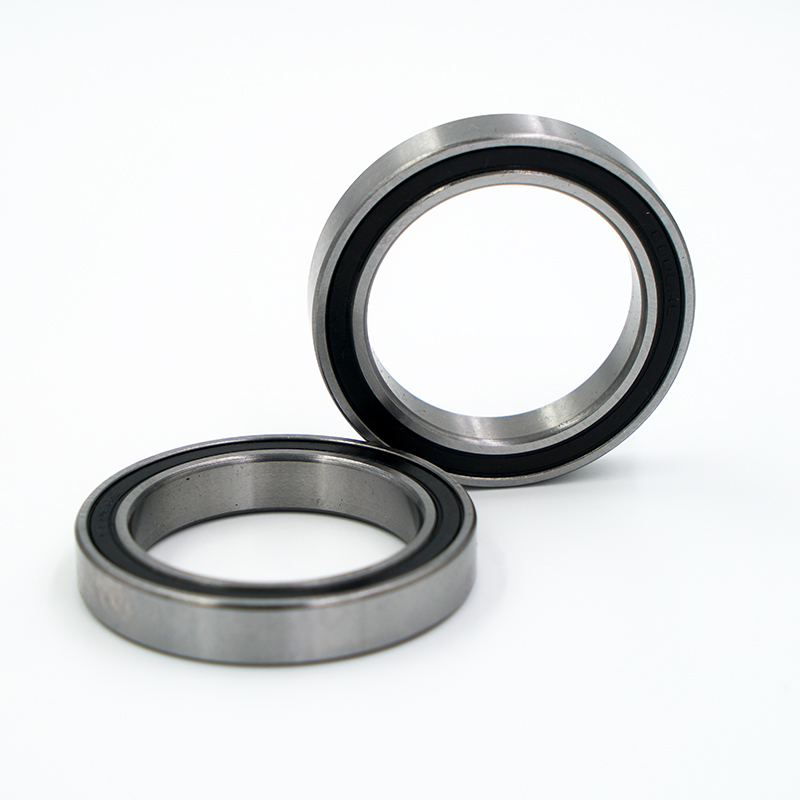

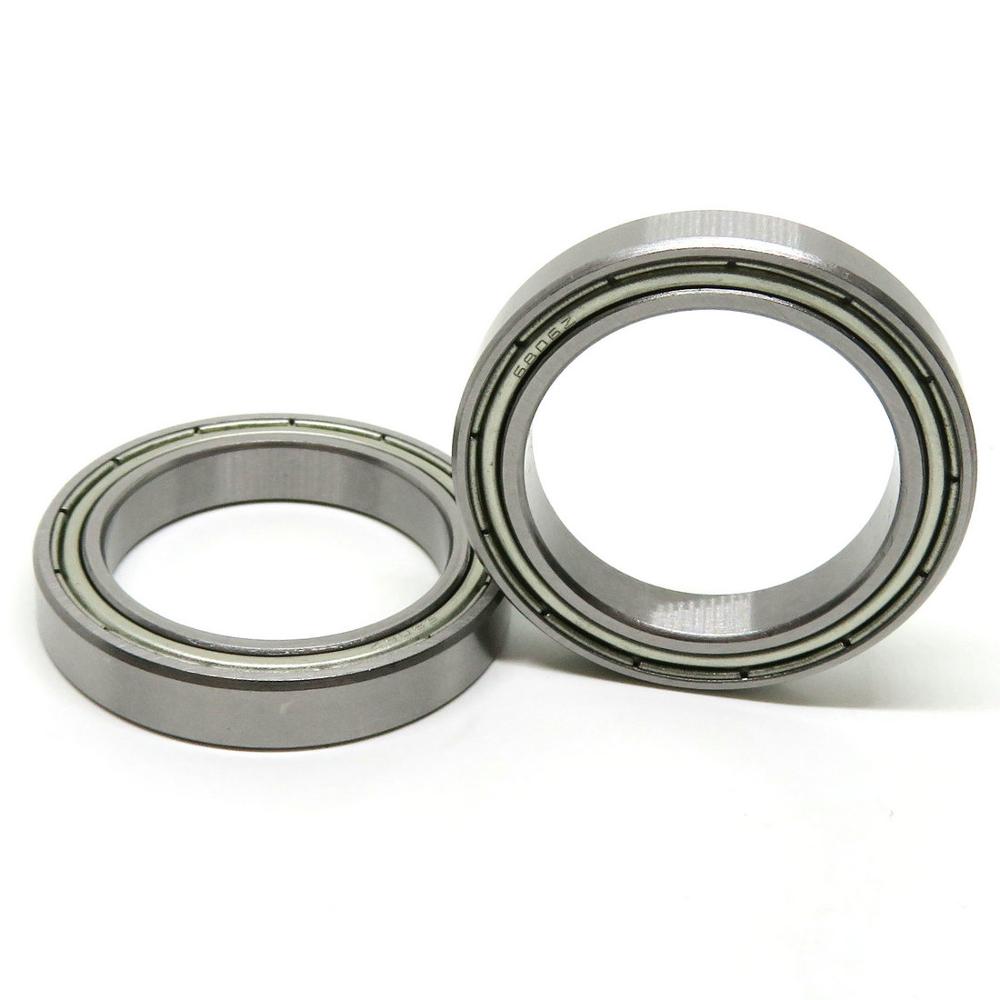

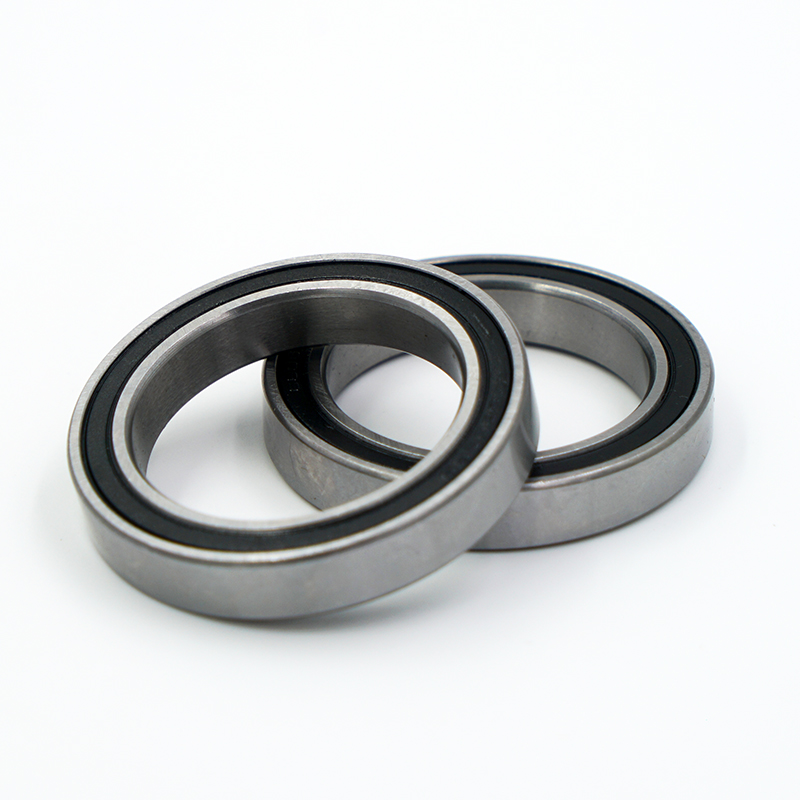

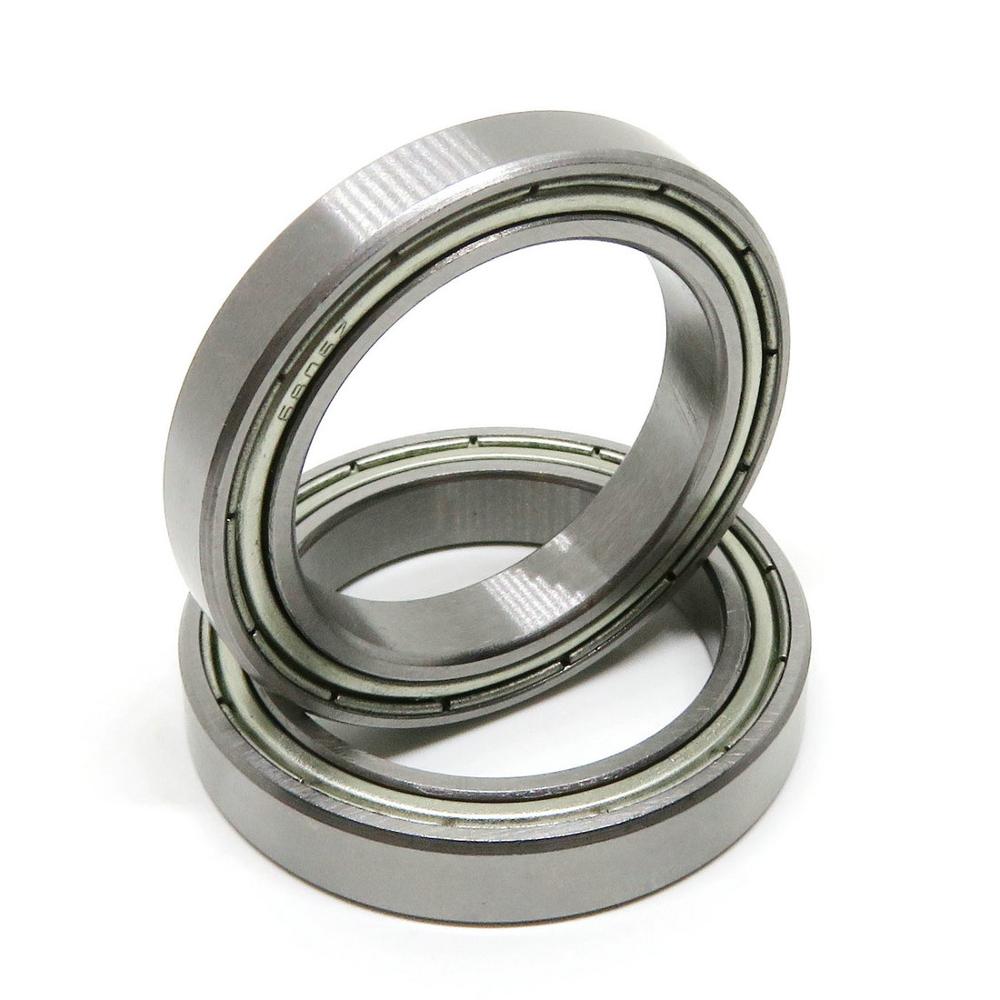

Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

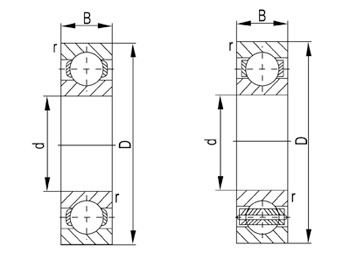

deep groove ball bearings gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings (kN)Limiting speedMass
mmDynamicStaticrpmKg
dDBrs minCrCorGreaseOil≈
6800101950.31.830.92532000380000.005
6801122150.31.921.0429000350000.006
6802152450.32.081.2626000310000.007
6803172650.32.811.7224000280000.008
6804203270.342.4721000250000.019
6805253770.34.32.9518000210000.022
6806304270.34.73.6515000180000.026
6807354770.34.94.0513000160000.029
6808405270.34.954.212000140000.033
6809455870.36.25.411000120000.040
6810506570.36.66.19600110000.052
6811557290.38.88.18700100000.083
68126078100.311.510.6800094000.104
68136585100.611.911.5740087000.126
68147090100.612.111.9690081000.134
68157595100.612.512.9640076000.142
681680100100.612.713.3600071000.150
68178511013118.719570067000.266
6818901151311919.7540063000.279
68199512013119.319.7500059000.705
682010012513119.621.2480056000.309
682110513013119.823.9460054000.324
682211014016128.130.7430051000.606
68241201501612933400047000.655
6826130165181.136.941.2370043000.939
6828140175181.138.244.4340040001.000
6830150190201.147.854.9310037001.400
6832160200201.148.557290034001.230
6834170215221.16070.5270032001.630
6836180225221.160.573260030002.030
6838190240241.57388240029002.620
6840200250241.57491.5230027002.730
