Home / Products / Deep Groove Ball Bearing

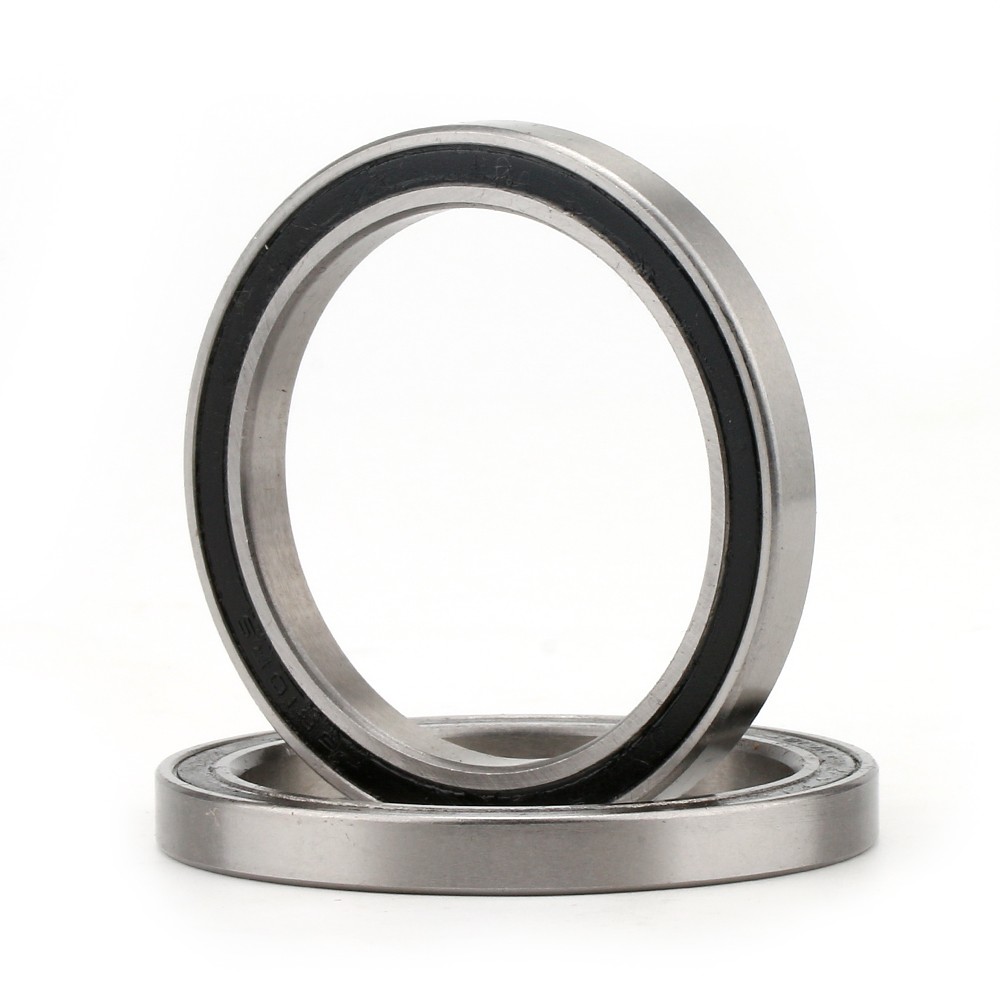

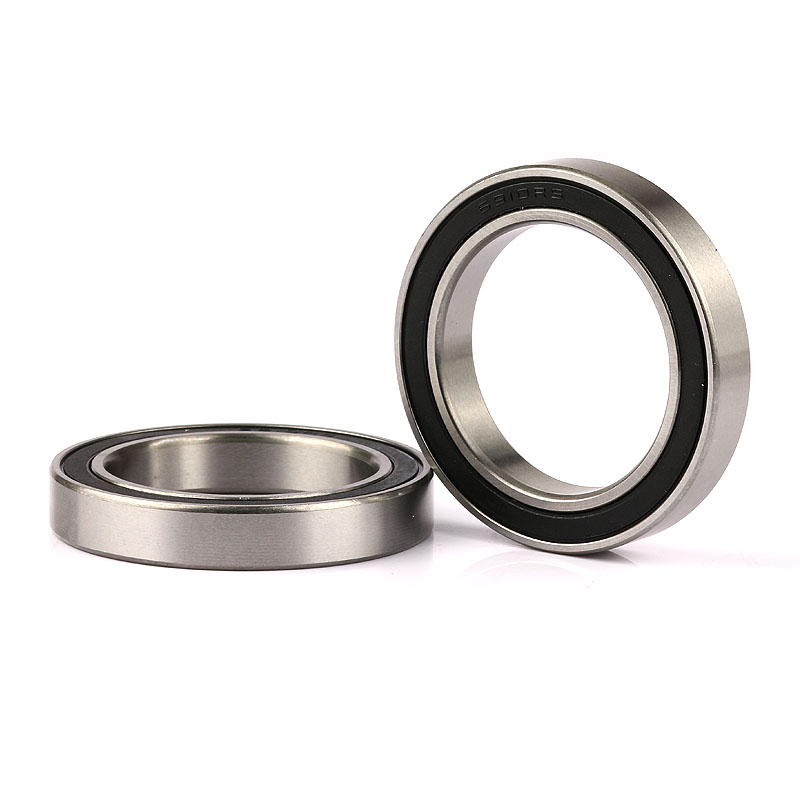

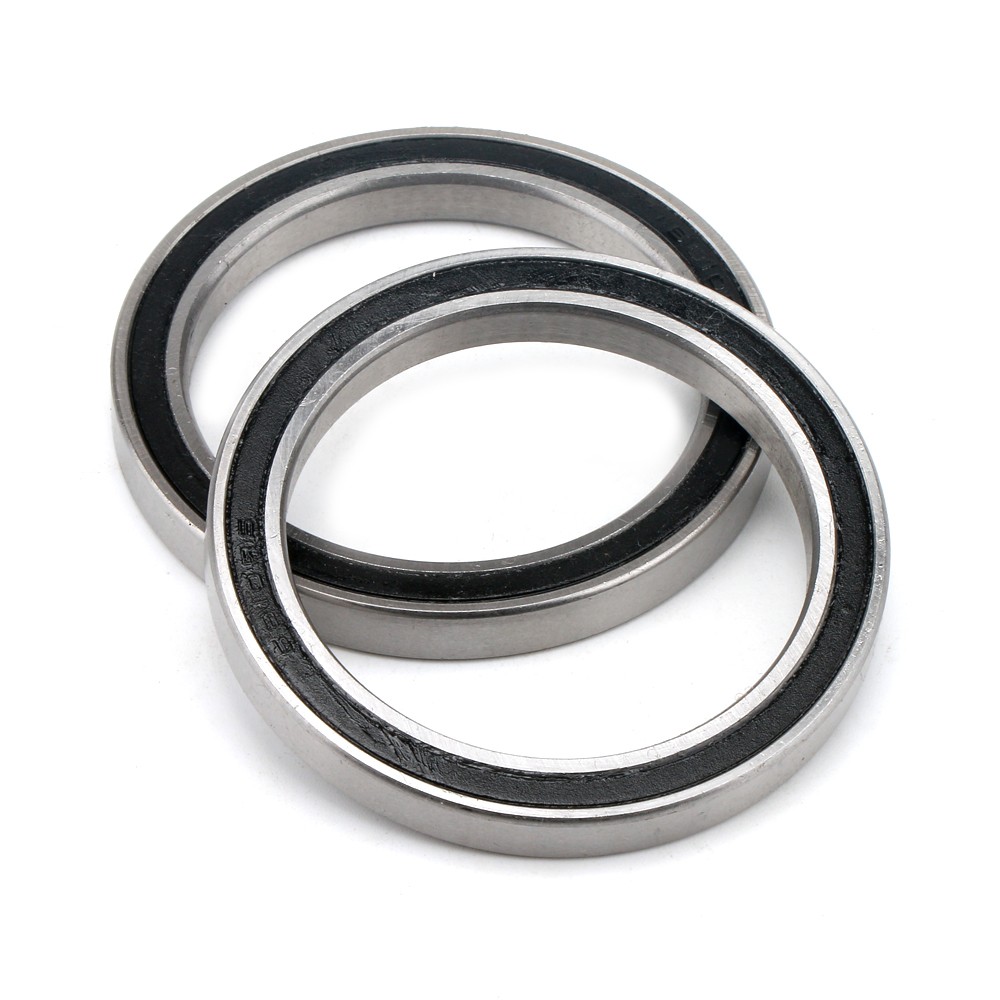

6900 Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types

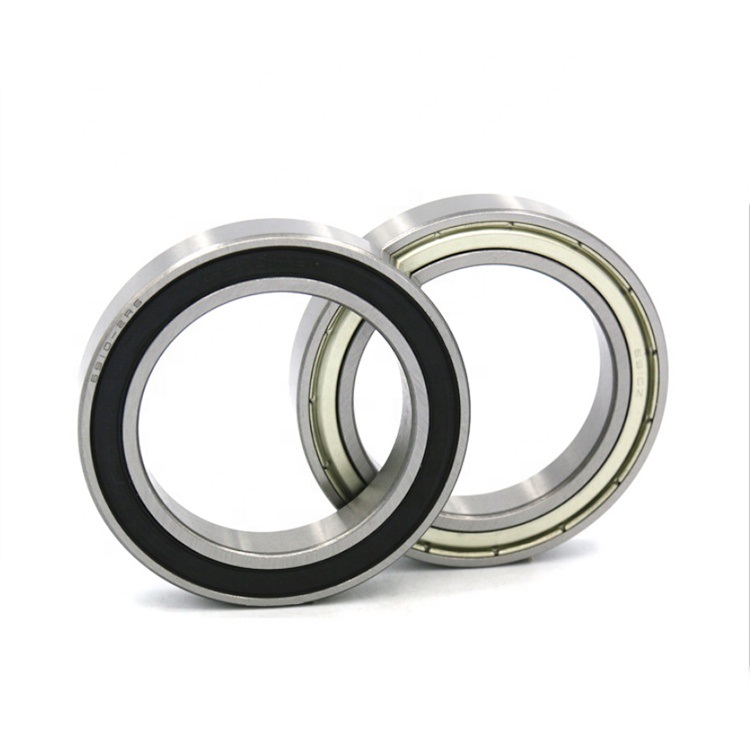

Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

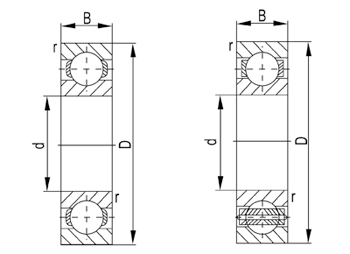

deep groove ball bearings gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings (kN)Limiting speedMass
mmDynamicStaticrpmKg
dDBrs minCrCorGreaseOil≈
6900102260.32.71.2530000360000.010
6901122460.32.91.4527000320000.011
6902152870.34.32.2524000280000.017
6903173070.34.62.5522000260000.018
6904203790.36.353.719000230000.036
6905254290.374.5516000190000.041
6906304790.37.25514000170000.045
69073555100.610.97.7512000150000.073
69084062120.613.79.9511000130000.112
69094568120.614.110.99800120000.132
69105072120.614.511.78900110000.133
6911558013116.614.1820096000.185
6912608513120.217.3760089000.193
6913659013117.416.1700082000.211
69147010016123.721.2650077000.342
69157510516124.422.6610072000.363
6916801101612524570067000.382
691785120181.131.929.6540063000.535
691890125181.132.831.6510060000.565
691995130181.133.733.5480057000.579
6920100140201.14541.9450053000.785
6921105145201.146.544.8430051000.816
6922110150201.147.947.8410048000.849
6924120165221.157.256.9380044001.150
6926130180241.569.670350041001.520
6928140190241.571.374.8320038001.620
693015021028293.494.3300035002.470
69321602202828796280033002.610
69341702302828695.5260031002.740
6936180250332110119240029004.760
6938190260332113127230027004.980
6940200280382.1157168220026007.100
