Home / Products / Deep Groove Ball Bearing

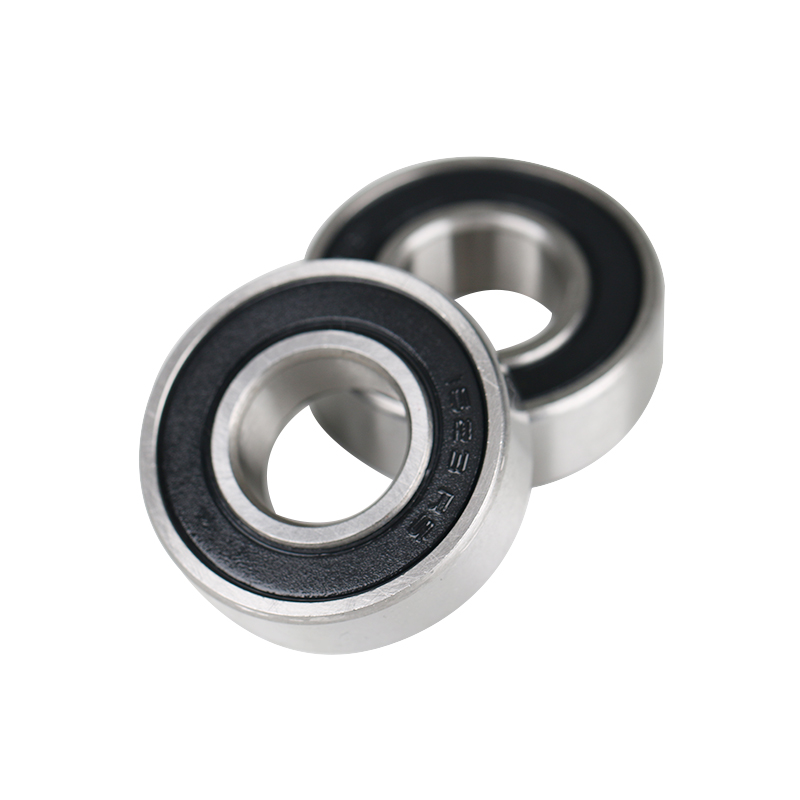

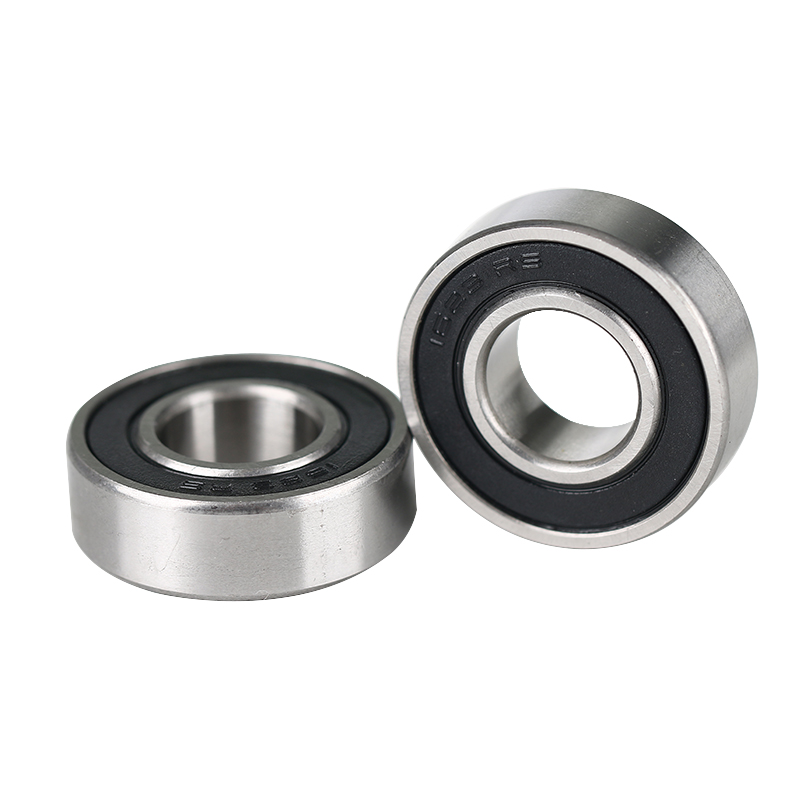

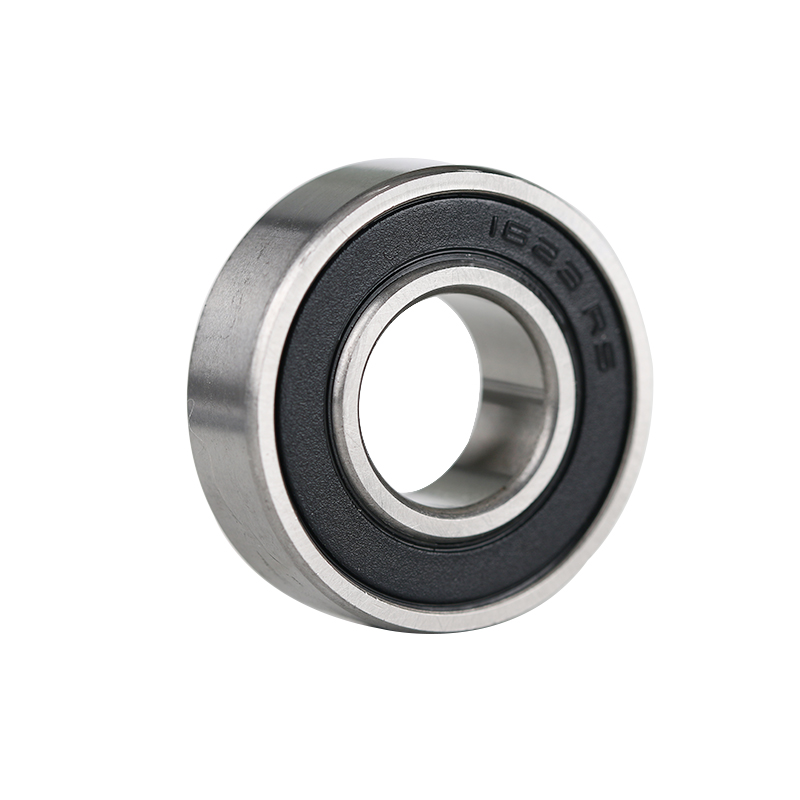

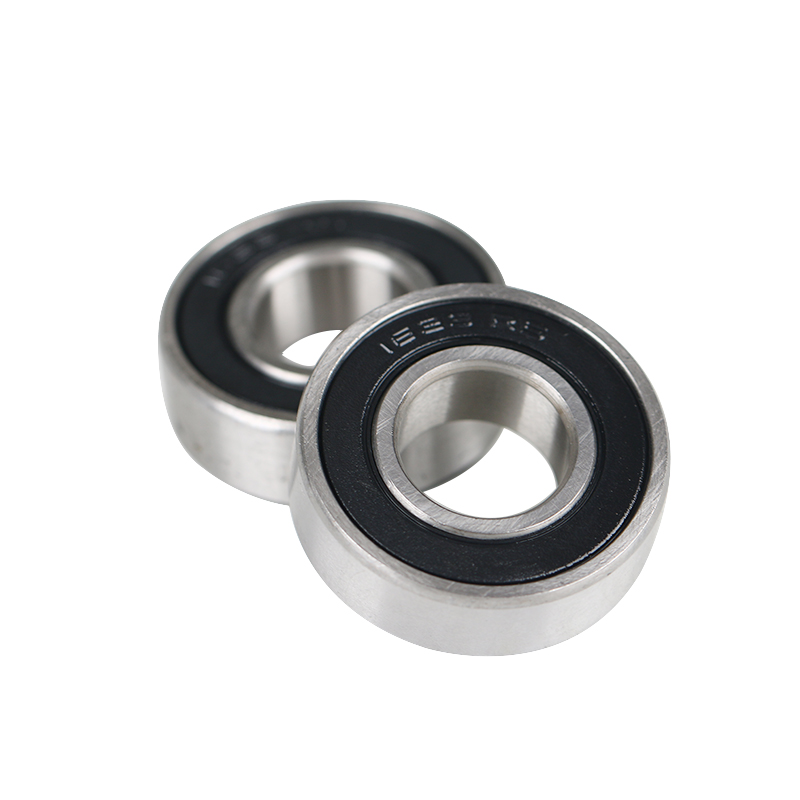

1600 series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

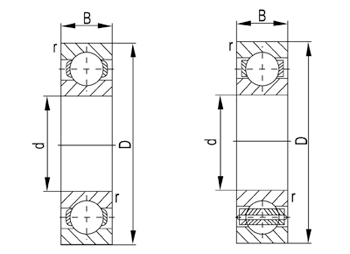

deep groove ball bearings gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings (kN)Mass
mmDynamicStaticKg
dDBrs minCrCor≈
16026.3517.4626.350.31.970.730.0064
16037.93822.2257.1440.33.291.360.0095
16049.52522.2257.1440.43.331.410.0086
16057.93823.0197.9380.33.331.410.0168
16069.52523.0197.9380.43.331.410.0218
160711.11223.0197.9380.42.691.270.0222
16149.52528.5759.5250.63.922.250.0350
161511.11228.5759.5250.63.922.250.0340
161612.728.5759.5250.63.922.250.0300
162011.11234.92511.1120.65.93.50.0500
162112.734.92511.1120.65.93.50.0480
162214.28834.92511.1120.65.93.50.0400
162315.87534.92511.1120.65.93.50.0480
162815.87541.27512.70.67.253.50.0720
163019.0541.27512.70.67.254.450.0650
163315.87544.4512.70.67.254.450.0920
163519.0544.4512.70.67.254.450.0850
163819.0550.814.2880.810.84.450.1200
164022.22550.814.2880.810.86.950.1120
164125.450.814.2880.810.86.950.1000
165228.57563.515.8750.812.86.950.2100
165431.7563.515.8750.812.88.40.1900
165731.865.117.50.816.510.60.2150
165833.365.117.50.816.510.60.2000
