Home / Products / Deep Groove Ball Bearing

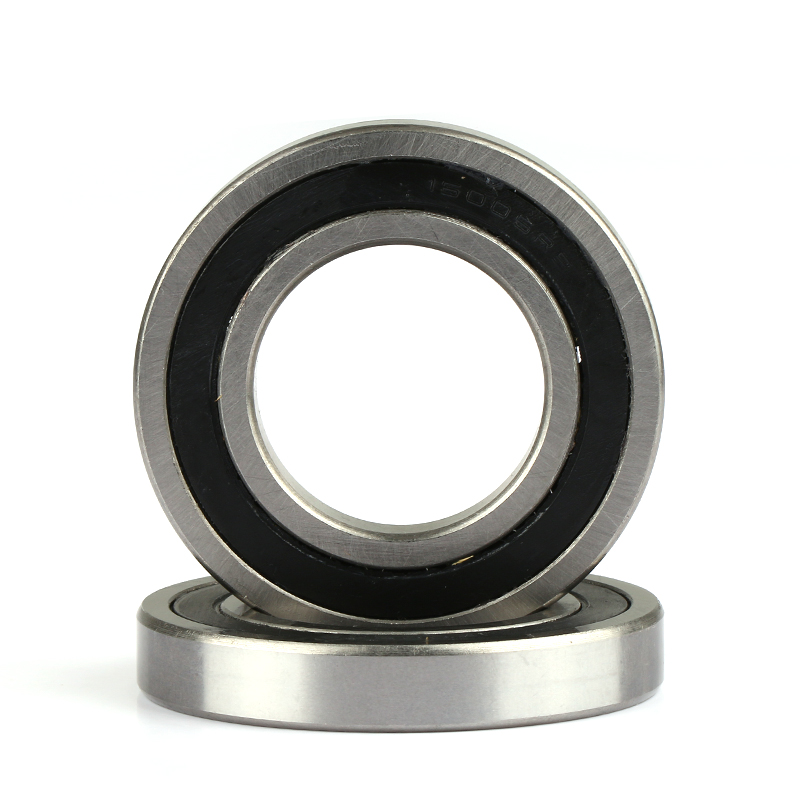

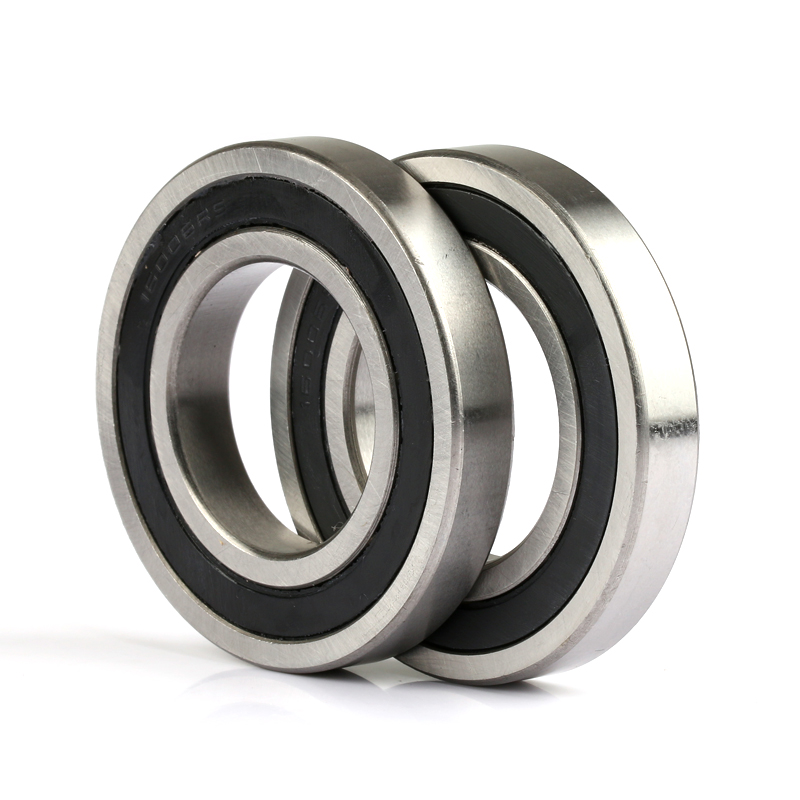

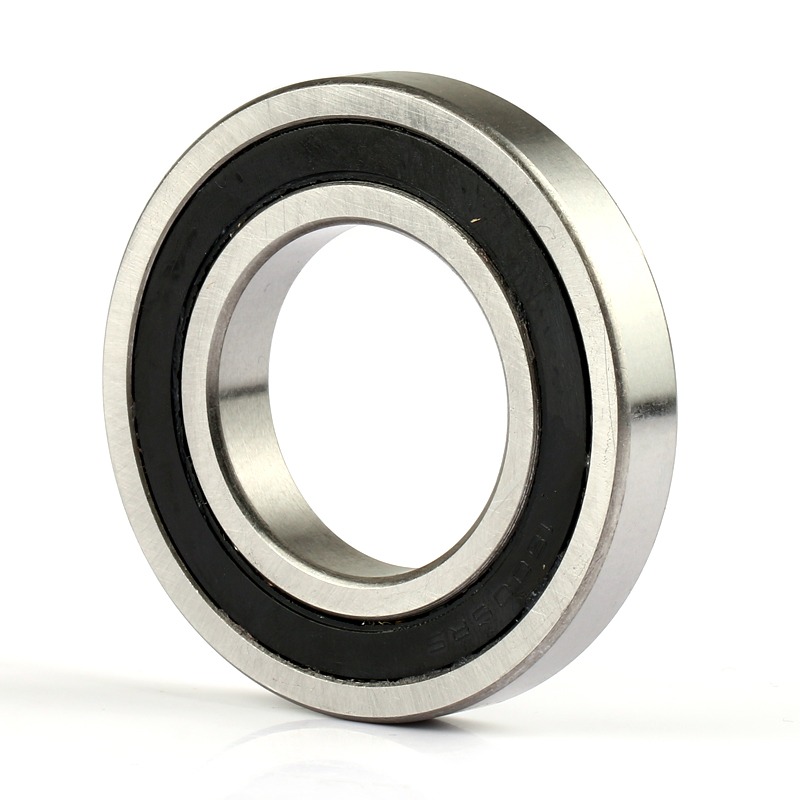

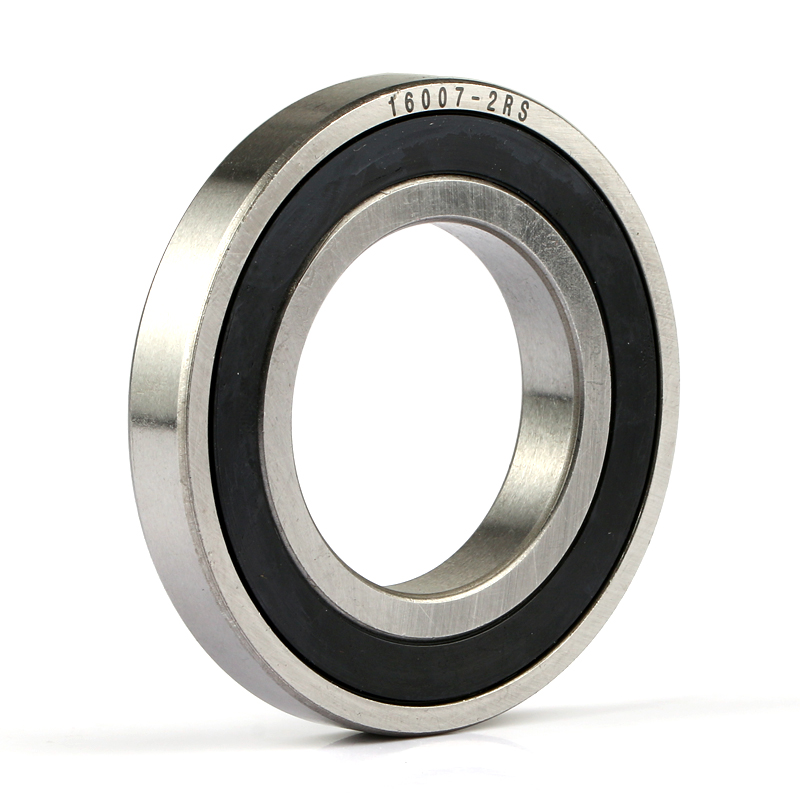

16000 Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

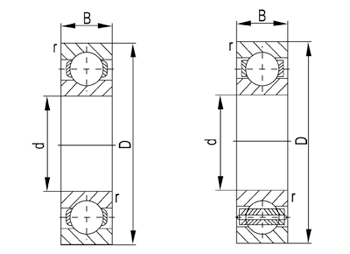

deep groove ball bearings gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings (kN)Limiting speedMass
mmDynamicStaticrpmKg
dDBrs minCrCorGreaseOil≈
16001122870.35.12.3926000300000.019
16002153280.35.62.8322000260000.025
16003173580.36.83.3520000240000.032
16004204280.37.94.518000210000.051
16005254780.38.355.115000180000.060
16006305590.311.27.3513000150000.091
16007356290.311.78.212000140000.110
16008406890.312.69.6510000120000.125
160094575100.612.910.59200110000.171
160105080100.613.211.3840098000.180
160115590110.618.615.3770090000.258
160126095110.62017.5700083000.283
1601365100110.620.518.7650077000.307
1601470110130.624.422.6610071000.441
1601575115130.62524570067000.464
1601680125140.625.425.1530062000.597
1601785130140.625.926.2500059000.626
160189014016133.533.5470056000.848
160199514516134.535450053000.885
160201001501613536.5420050000.910
160211051601815250.5400047001.200
1602211017019157.556.5380045001.460
160241201801916363.5350041001.560
16026130200221.18079.5320038002.310
16028140210221.18285300035002.450
16030150225241.196.5101280032003.070
16032160240251.599108260030003.640
16034170260281.5119128240028004.930
16036180280312117134230027006.490
16038190290312134156210025006.770
16040200310342142160200024008.680
