Home / Products / Deep Groove Ball Bearing

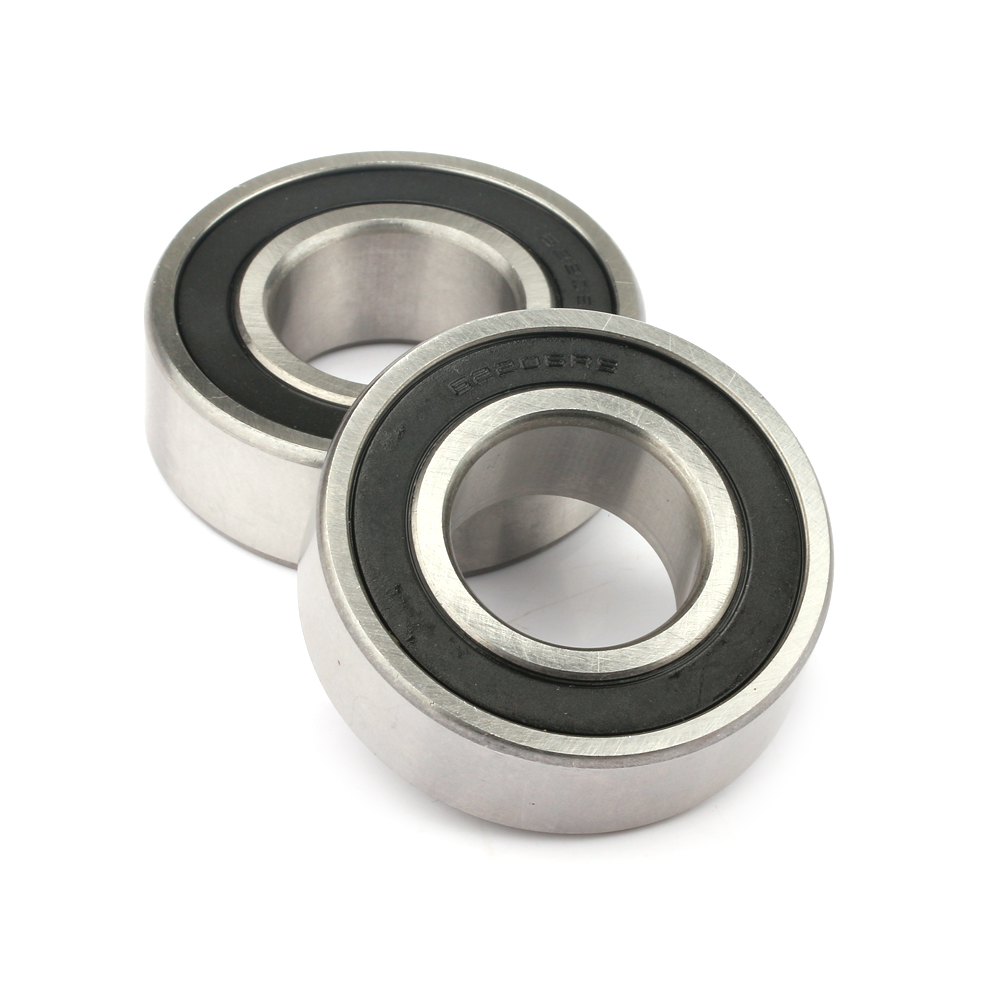

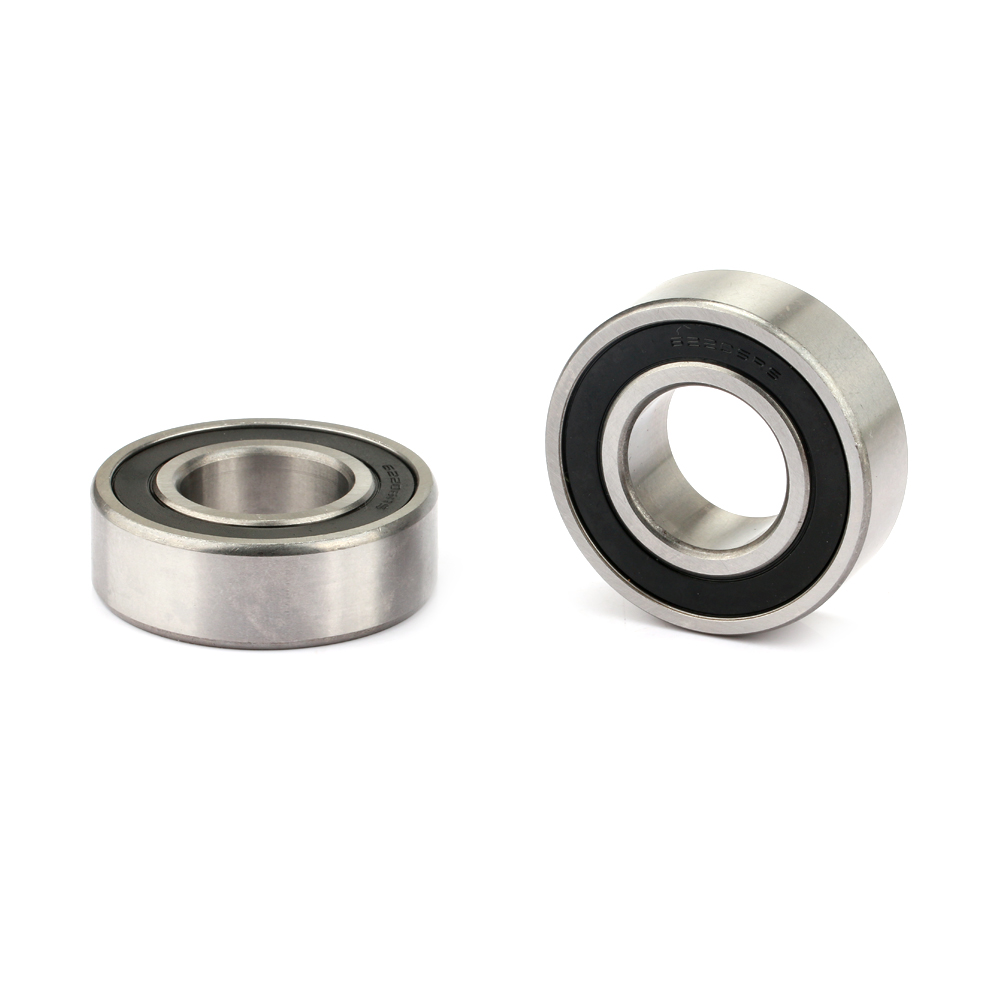

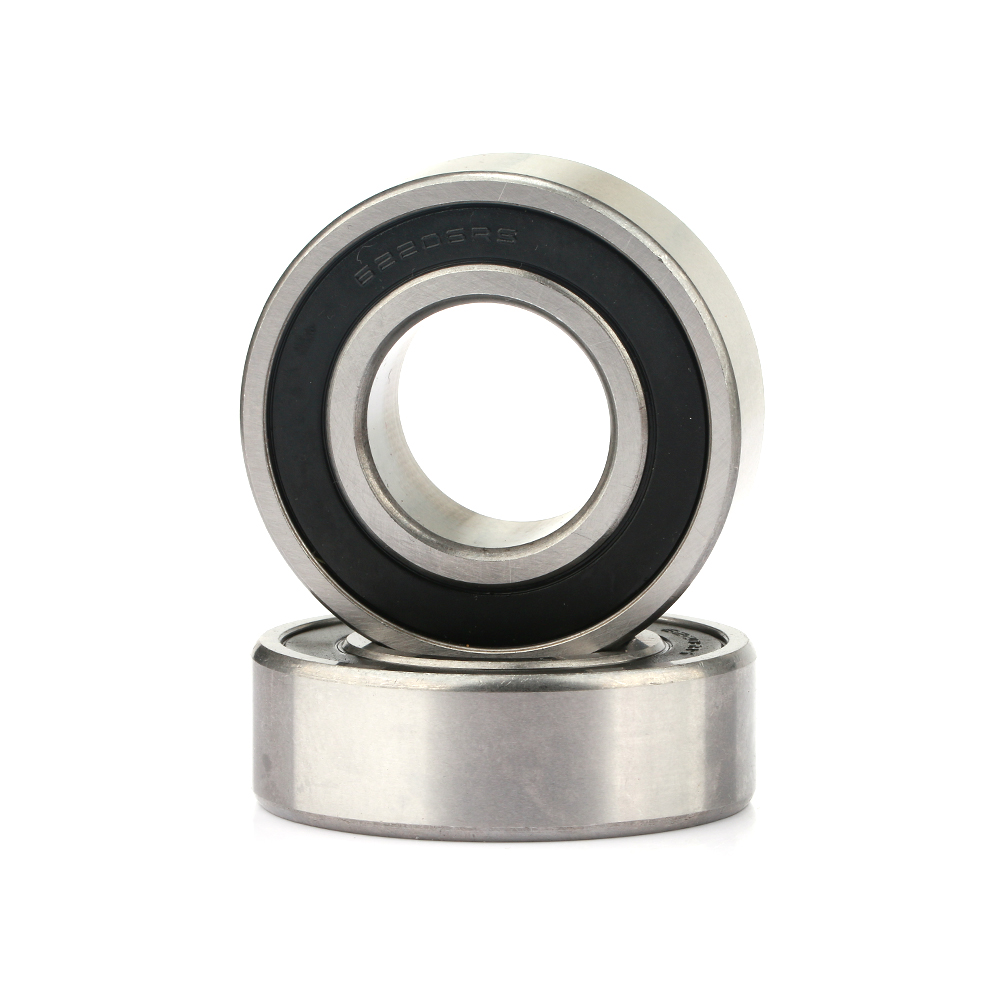

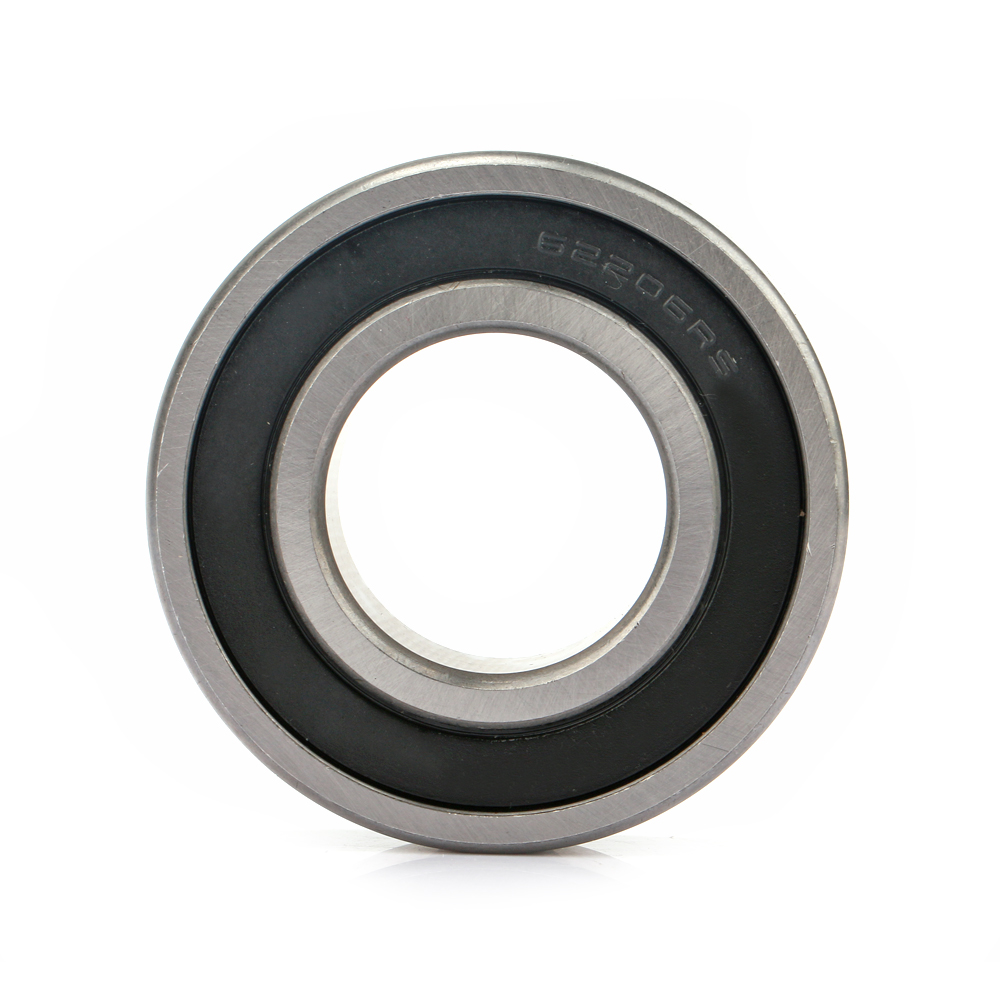

62200 Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

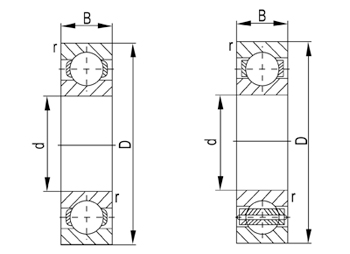

deep groove ball bearings gongcheng.jpg


Bearing No.Boundary dimensionsBasic load ratings (kN)BallLimiting speedMass
dDBrs minDynamicStatic
rpmKg
mm inmm inmm inmm CrCorQty.Size.mmGreaseOil≈
62200100.3937301.1811140.55120.65.12.3984.76325000300000.044
62201120.4724321.2598140.55120.66.12.7575.93522000260000.053
62202150.5906351.378140.55120.67.753.685.95319000230000.065
62203170.6693401.5748160.62990.69.64.686.74718000210000.096
62204200.7874471.8504180.7086112.86.6587.93816000180000.15
62205250.9843522.1645180.70861147.8597.93813000150000.178
62206301.1811622.4409200.7874119.511.399.52511000130000.215
62207351.3779722.8346230.90551.125.715.3911.1129800110000.31
62208401.5748803.1496230.90551.129.117.89128700100000.406
62209451.7716853.3464230.90551.132.520.41012780092000.455
62210501.965903.5464230.90551.13523.21012.7710083000.496
62211552.16531003.937250.98431.543.529.21014.288640076000.81
62212602.3621104.3307281.10241.552.5361015.081600070001.03
62213652.5591204.7244311.22051.557.5401016.66955006500
62214702.75591254.9213311.22051.562441116.66951006000
62215752.95281305.1181311.22051.56649.51117.46248005600
62216803.14961405.7087331.2992272.5531118.25645005300
62217853.34541505.9055361.4173283.5641119.84442005000
62218903.54331606.2996401.574829671.51022.22540004700
62219953.74021706.6929431.69262.110982102437004400
622201003.9371807.0866461.8112.1122931025.435004200
