Home / Products / Deep Groove Ball Bearing

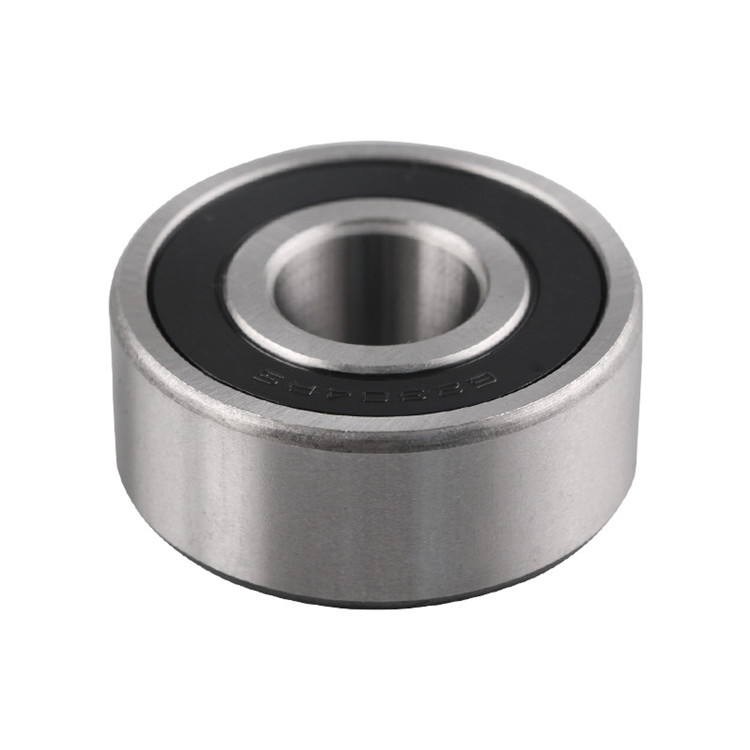

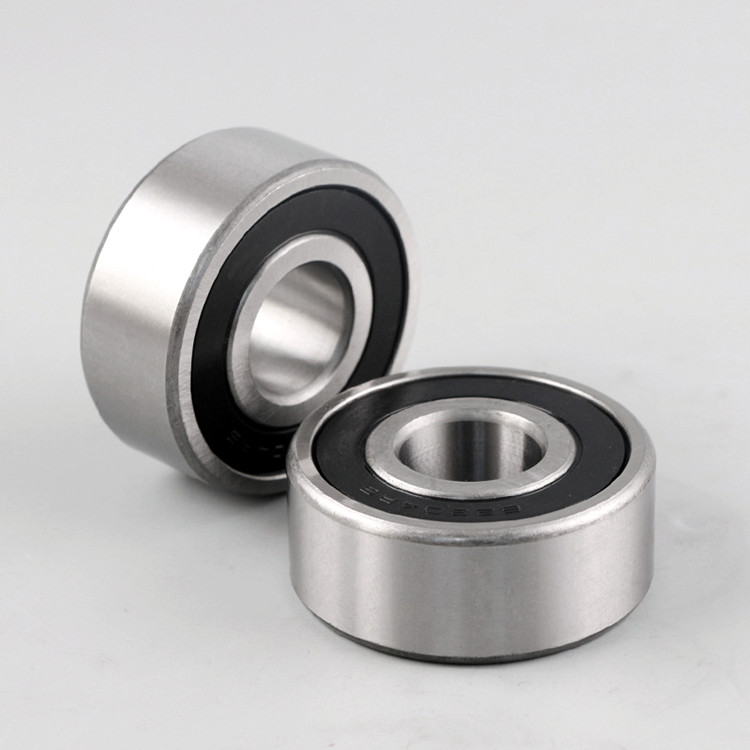

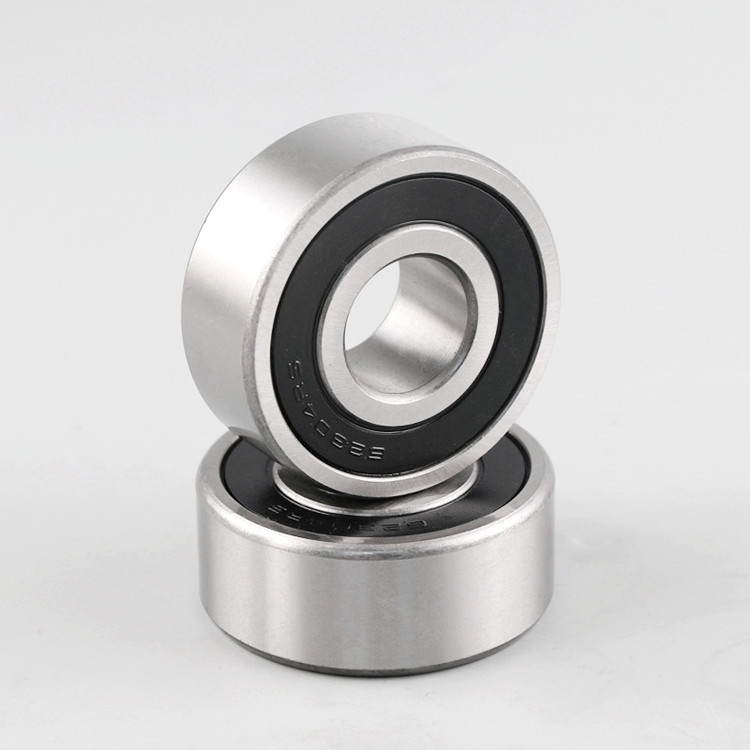

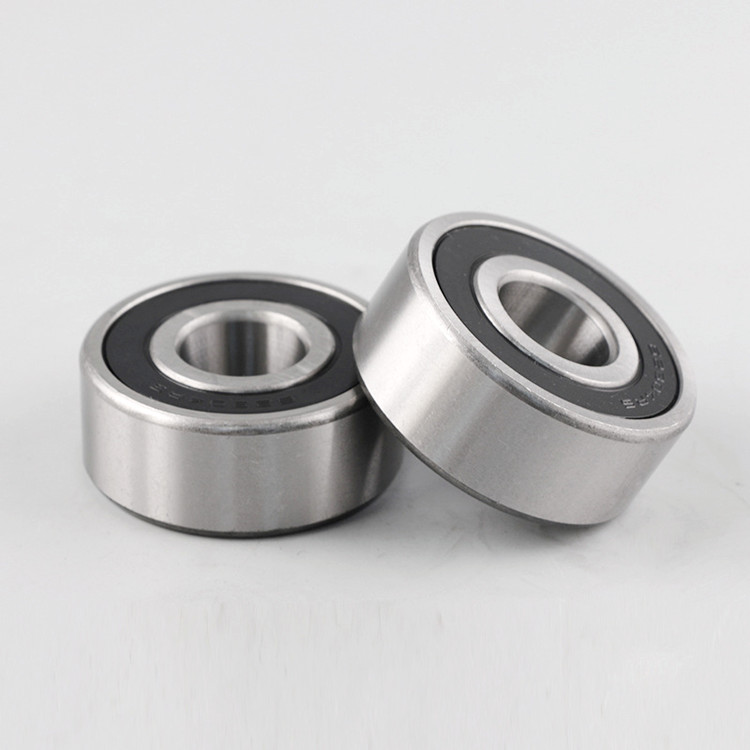

62300 Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

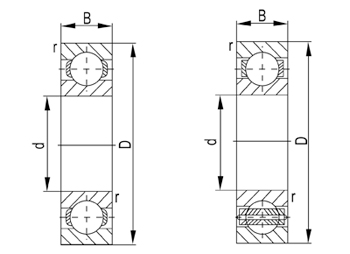

deep groove ball bearings gongcheng.jpg


Bearing No.Boundary dimensionsBasic load ratings (kN)BallLimiting speedMass
dDBrs minDynamicStatic
rpmKg
mm inmm inmm inmm CrCorQty.Size.mmGreaseOil≈
62300100.3937351.378170.66930.68.23.567.14423000270000.073
62301120.4724371.4567170.669319.74.267.93820000240000.0814
62302150.5906421.6535170.6693111.45.4577.93817000210000.105
62303170.6693471.8504190.748113.56.5578.73116000190000.146
62304200.7874522.0472210.82671.115.97.979.52514000170000.195
62305250.9843622.4409240.94481.121.210.9711.512000140000.306
62306301.1811722.8346271.0631.126.71571210000120000.478
62307351.3779803.1496311.22041.533.519.1813.4948800100000.647
62308401.5748903.5433331.29921.540.524815.081780092000.885
62309451.77161003.937361.41731.55332817.462700082001.156
62310501.9651104.3307401.574826238.5819.05640075001.498
62311552.16531204.7244431.6929271.545820.638580068001.918
62312602.3621305.1181461.8112.18252822.225540063002.422
62313652.5591405.7187481.88982.192.56082449005800
62314702.75591505.9055512.00782.110468825.446005400
62315752.95281606.2992552.16542.111377826.98843005000
62316803.14961706.6929582.2835212386.5828.57540004700
62317853.34541807.0866602.362313397830.162538004500
62318903.54331907.1803642.51973143107831.7536004200
62319953.74022007.874672.6378315311983433003900
