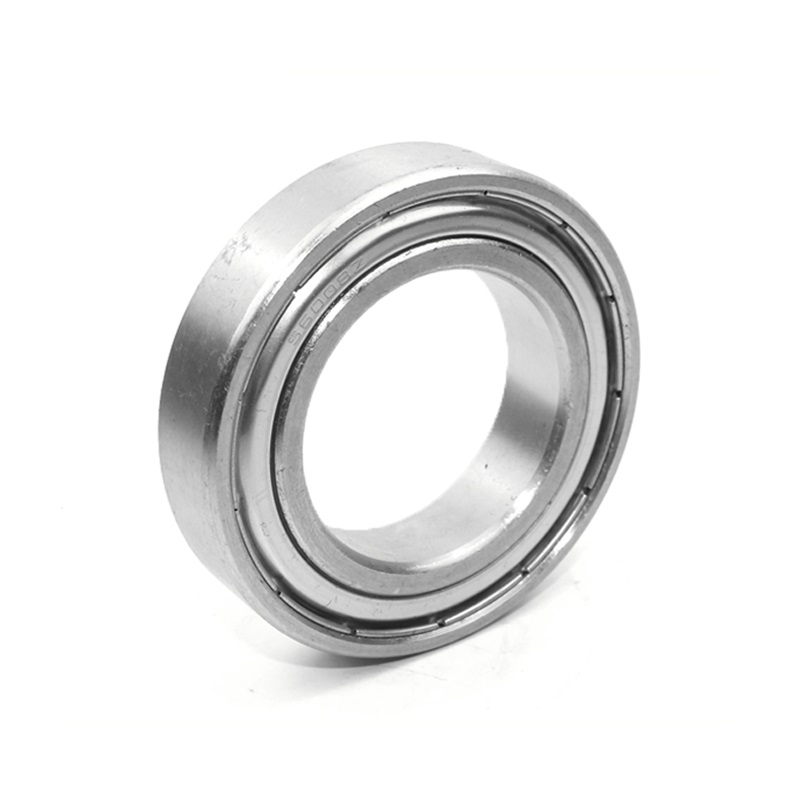

608ZZ, 608 2RS

625ZZ, 625 2RS

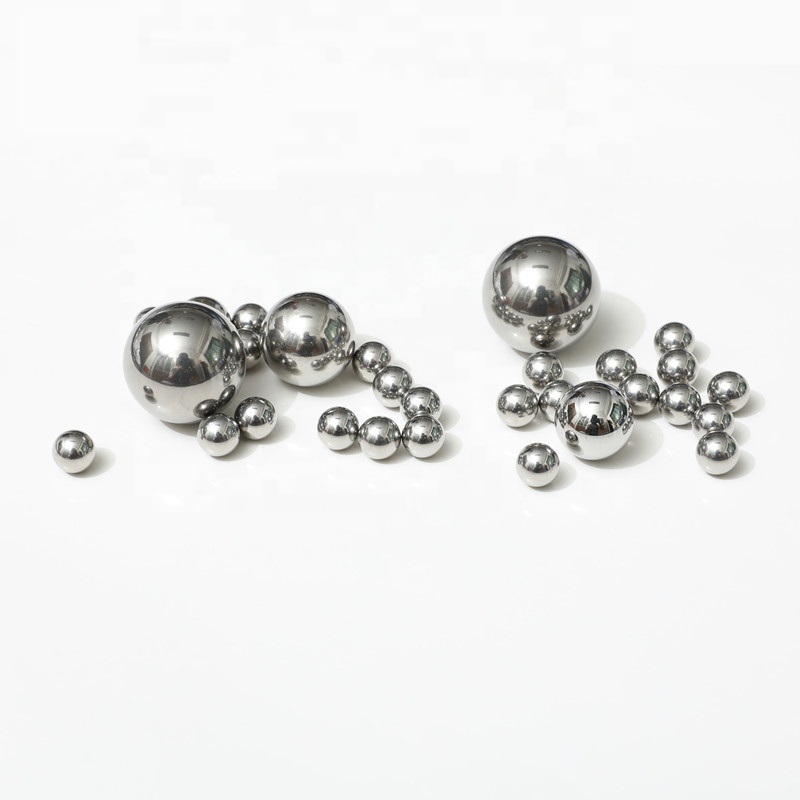

Chrome steel balls

Carbon steel balls

Stainless steel balls

Inner rings IR40X50X22

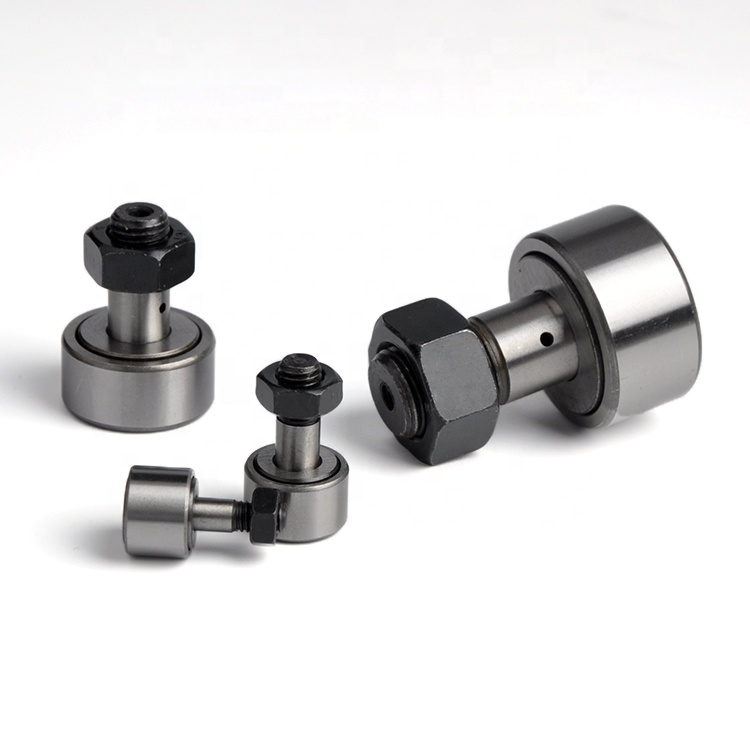

Cam followers KR22PP

NJ2208E, NJ2208EM

608ZZ, 608 2RS

625ZZ, 625 2RS

Chrome steel balls

Carbon steel balls

Stainless steel balls

Inner rings IR40X50X22

Cam followers KR22PP

NJ2208E, NJ2208EM

608ZZ, 608 2RS

625ZZ, 625 2RS

Chrome steel balls

Carbon steel balls

Stainless steel balls

Inner rings IR40X50X22

Cam followers KR22PP

NJ2208E, NJ2208EM

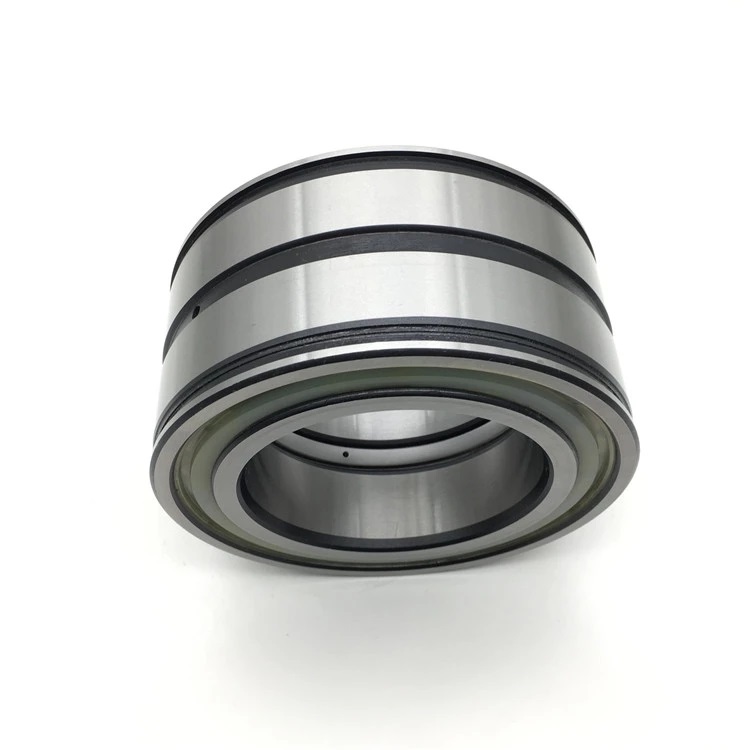

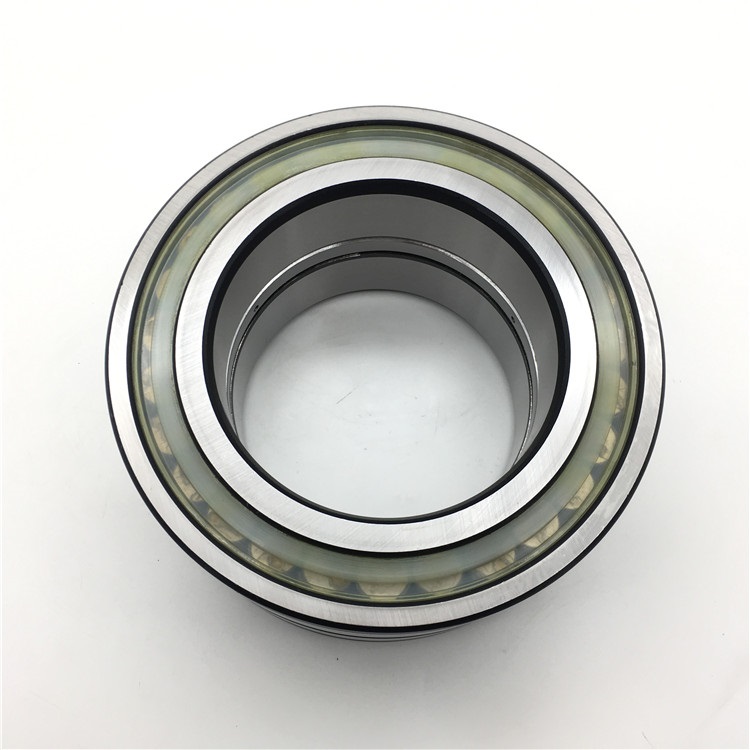

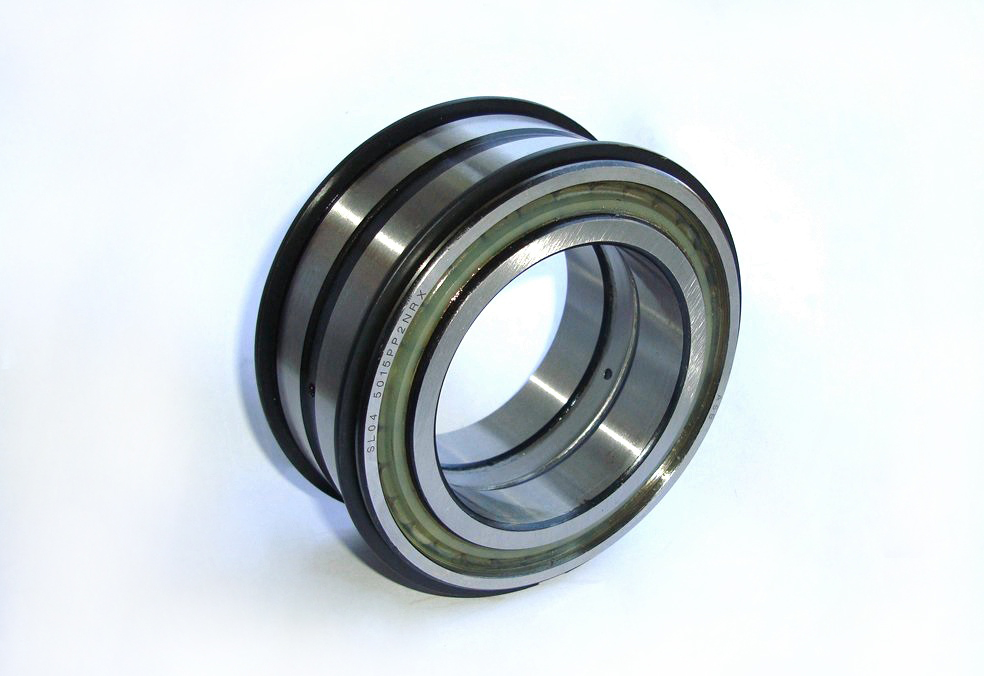

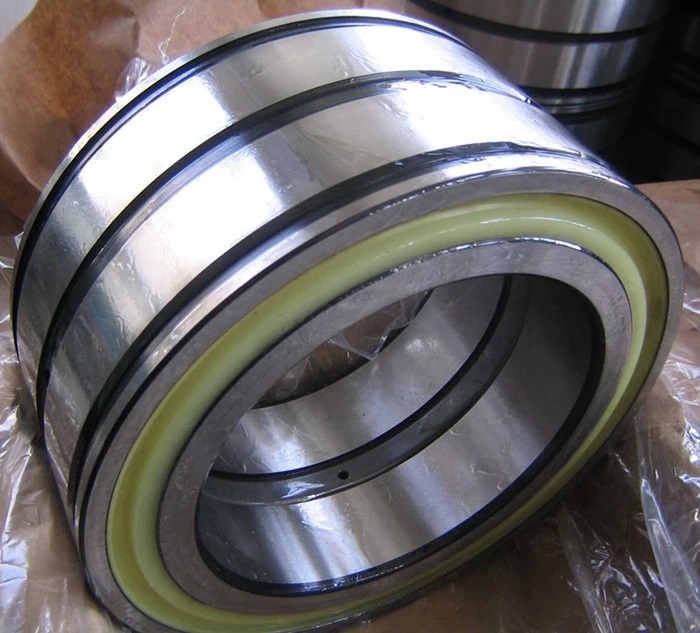

SL045026PP 2NR SL045026PP Double Row Full Complement Roller Bearings

Unit Price: Negotiable.
Minimium Order Quantity: 10 PCS.
Place of Origin: Sichuan, China.
Production Capacity: 50,000 PCS / month.
Mark: Neutral, TIK or your mark.
Package: Industrial packing, single plastic bag/single box/carton/pallet.
Certification: ISO9001:2015.
Lead Time: 3-60 days.
Loading Port: Shanghai, Ningbo, Tianjin, Qingdao.
Samples: Free samples are available.
Payment: Western Union, T/T, D/P, L/C.
Quantity in stock: 2500 pcs.

Request a Quote

Product Description

Full complement cylindrical roller bearings have solid outer and inner rings together with rib-guided cylindrical rollers.

Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs.

Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.

Full complement cylindrical roller bearings are in the form of semi-locating bearings.

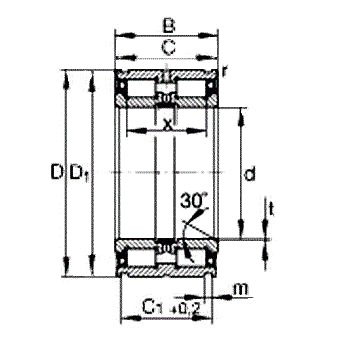

SL04...pp drawing.jpg

Bearing Number:	SL045026 PP
Interchanged No.:	NNF5026 ADA-2LSV
Brand:	TIK, Neutral or OEM
Size (mm):	130 x 200 x 95
Material:	GCr15 bearing steel
Precision:	P0 P6 P5 P4
Clearence:	C2 C0 C3 C4 C5
Cage:	No cage
Weight (Kg):	10.5
Country of Origin:	CHINA
Certification:	ISO9001:2015

Basic Bearing No.		Main Dimension				Load rating / KN		maximum speed	Weight
Basic No.	with snap ring	d	D	B	r min	Dynamic	Static		approx.
Basic No.	with snap ring	mm	mm	mm	mm	Cr	Cor		KG
SL04 5004 PP	SL04 5004 PP 2NR	20	42	30	0.3	40.5	49	4000	0.2
SL04 5005 PP	SL04 5005 PP 2NR	25	47	30	0.3	44.5	58	3600	0.24
SL04 5006 PP	SL04 5006 PP 2NR	30	55	34	0.3	50	67	3000	0.37
SL04 5007 PP	SL04 5007 PP 2NR	35	62	36	0.3	63	88	2600	0.48
SL04 5008 PP	SL04 5008 PP 2NR	40	68	38	0.6	76	103	2400	0.56
SL04 5009 PP	SL04 5009 PP 2NR	45	75	40	0.6	92	130	2200	0.7
SL04 5010 PP	SL04 5010 PP 2NR	50	80	40	0.6	97	142	2000	0.76
SL04 5011 PP	SL04 5011 PP 2NR	55	90	46	0.6	115	175	1800	1.18
SL04 5012 PP	SL04 5012 PP 2NR	60	95	46	0.6	120	189	1700	1.26
SL04 5013 PP	SL04 5013 PP 2NR	65	100	46	0.6	125	203	1600	1.33
SL04 5014 PP	SL04 5014 PP 2NR	70	110	54	0.6	168	265	1400	1.87
SL04 5015 PP	SL04 5015 PP 2NR	75	115	54	0.6	194	300	1400	1.96
SL04 5016 PP	SL04 5016 PP 2NR	80	125	60	0.6	203	325	1300	2.71
SL04 5017 PP	SL04 5017 PP 2NR	85	130	60	0.6	211	350	1200	2.83
SL04 5018 PP	SL04 5018 PP 2NR	90	140	67	0.6	305	510	1100	3.71
SL04 5019 PP	SL04 5019 PP 2NR	95	145	67	0.6	315	530	1100	3.88
SL04 5020 PP	SL04 5020 PP 2NR	100	150	67	0.6	330	550	1000	3.95
SL04 5022 PP	SL04 5022 PP 2NR	110	170	80	0.6	395	680	900	6.57
SL04 5024 PP	SL04 5024 PP 2NR	120	180	80	0.6	410	740	900	7.04
SL04 5026 PP	SL04 5026 PP 2NR	130	200	95	0.6	540	960	800	10.5
SL04 130 PP	SL04 130 PP 2NR	130	190	80	0.6	430	790	800	7.5
SL04 5028 PP	SL04 5028 PP 2NR	140	210	95	0.6	610	1100	750	11.1
SL04 140 PP	SL04 140 PP 2NR	140	200	80	0.6	445	840	750	8
SL04 5030 PP	SL04 5030 PP 2NR	150	225	100	0.6	710	1260	700	13.3
SL04 150 PP	SL04 150 PP 2NR	150	210	80	0.6	465	920	700	8.4
SL04 5032 PP	SL04 5032 PP 2NR	160	240	109	0.6	740	1360	650	16.6
SL04 160 PP	SL04 160 PP 2NR	160	220	80	0.6	480	970	700	8.8
SL04 5034 PP	SL04 5034 PP 2NR	170	260	122	0.6	960	1750	600	22.6
SL04 170 PP	SL04 170 PP 2NR	170	230	80	0.6	490	1030	650	9.3
SL04 5036 PP	SL04 5036 PP 2NR	180	280	136	0.6	1140	2130	550	30.1
SL04 180 PP	SL04 180 PP 2NR	180	240	80	0.6	500	1080	600	9.8
SL04 5038 PP	SL04 5038 PP 2NR	190	290	136	0.6	1160	2210	550	31.5
SL04 190 PP	SL04 190 PP 2NR	190	260	80	0.6	520	1130	550	12.7
SL04 5040 PP	SL04 5040 PP 2NR	200	310	150	0.6	1350	2600	500	40.8
SL04 200 PP	SL04 200 PP 2NR	200	270	80	0.6	540	1210	550	13.2
SL04 5044 PP	SL04 5044 PP 2NR	220	340	160	1	1570	3050	480	52.5
SL04 220 PP	SL04 220 PP 2NR	220	300	95	1	700	1550	480	19.5
SL04 5048 PP	SL04 5048 PP 2NR	240	360	160	1	1630	3300	440	56
SL04 240 PP	SL04 240 PP 2NR	240	320	95	1	740	1700	480	21
SL04 5052 PP	SL04 5052 PP 2NR	260	400	190	1.1	2380	4700	400	84.5
SL04 260 PP	SL04 260 PP 2NR	260	340	95	1	840	1990	440	22.5
SL04 5056 PP	SL04 5056 PP 2NR	280	420	190	1.1	2600	5200	380	90
SL04 5060 PP	SL04 5060 PP 2NR	300	460	218	1.1	3000	5800	340	126
SL04 300 PP	SL04 300 PP 2NR	300	380	95	1	900	2250	380	25.5
