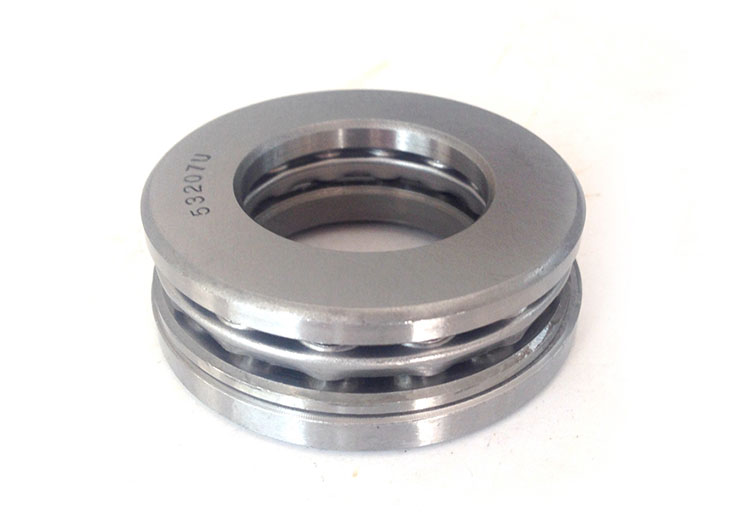

53207U Thrust Ball Bearings With Aligning Blocks
Thrust ball bearings are separable which makes the assembling quite simple.
The design of thrust ball bearing makes it only possible to carry axial load. It can not carry any radial load.

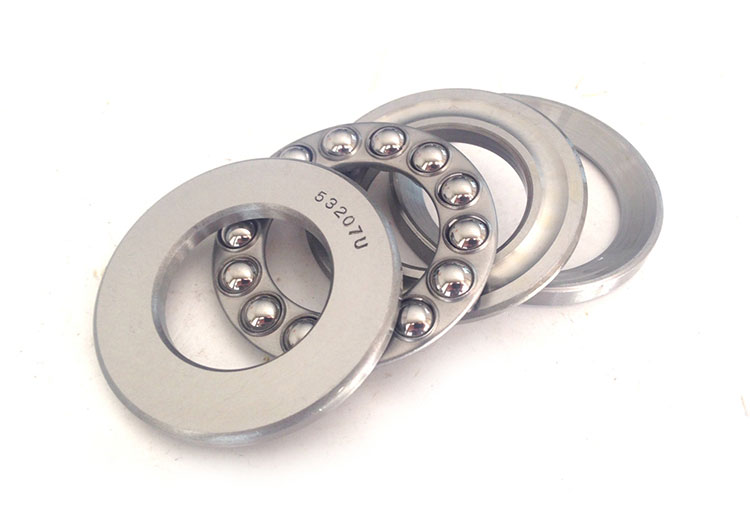

Bearings of this type consist of the washers with raceway and the assembly of ball and cage. The washer that contacts the shaft is called shaft washer, and the one attached to the housing is called housing washer. Thrust bearings in double directions have a central washer connected to the shaft. Single-direction bearings can carry axial load in one direction, and double-direction bearings can carry axial load in two directions. The bearings with housing washer which has spherical mounting surface is self-alignable, which can reduce the effects of mounting error. Applications of these bearings can be found in steering mechanism of automobiles and machine tool spindles.
Request a Quote
Product Description

Features

Thrust ball bearings are separable which makes the assembling quite simple. The design of thrust ball bearing makes it only possible to carry axial load. It can not carry any radial load.

Single-direction thrust ball bearings are composed of washer-like bearing rings with raceway grooves. The ring attached to the shaft is called the shaft washer (or inner ring) while that attached to the housing is called the housing washer (or outer ring).

In double-direction thrust ball bearings, there are three rings with the middle one (center ring) being fixed to the shaft.

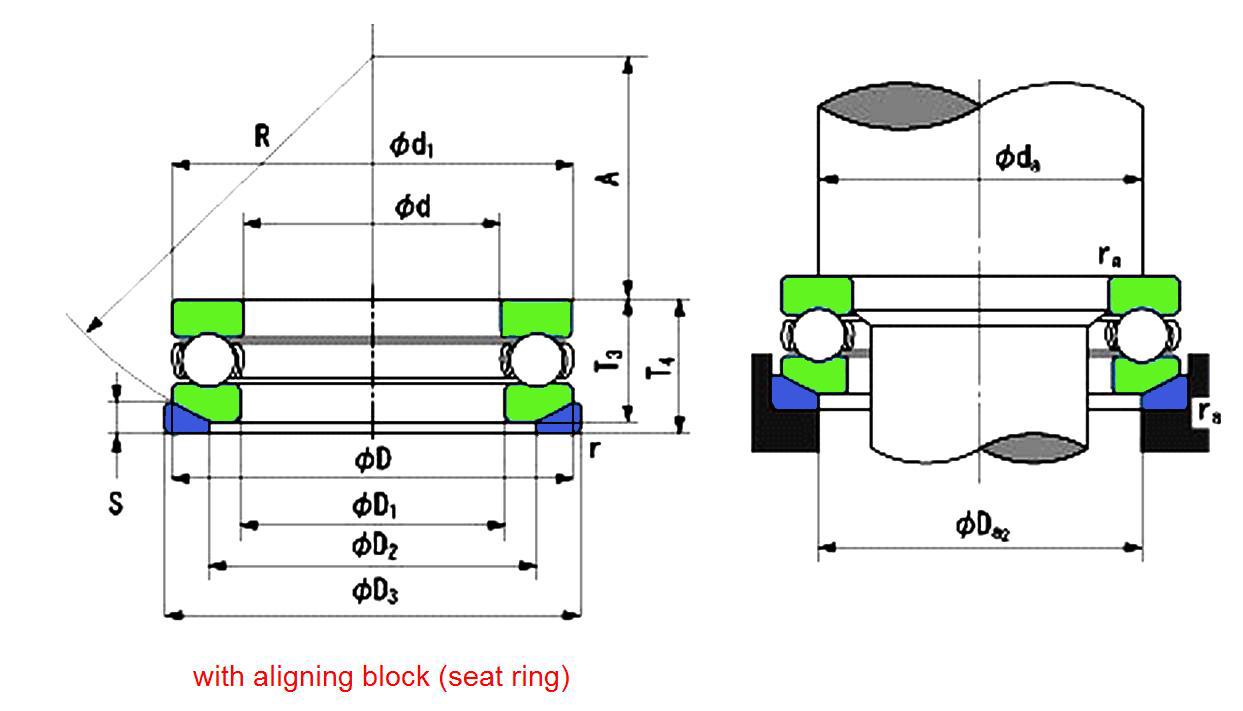

There are also thrust ball bearings with an aligning seat washer beneath the housing washer in order to compensate for shaft misalignment or mounting error.

Pressed steel cages are usually used in the smaller bearings and machined cages in the larger ones.





Bearing itemMain dimension / mmLoad rating/KNLimiting speedWeight
New itemOld itemdDT4CrCorgreaseoilKg
53201U182011228131319540083000.045
53202U182021532151724.8490075000.063
53203U182031735151727.3490075000.071
53220U1822010015045147410120019002.84
53222U1822211016045136395130019002.92
53224U1822412017046154472110017003.07
53226U182261301905320362297015004.85
53228U182281402005521566994014505.45
53320U183201001706423659694014505.98
53322U183221101907228075481012509.2
53324U1832412021080325931710110012.14
53326U18326130225863461030650100015.2
53328U1832814024092367113062095018
53330U1833015025092377120058090019.83
53420U1842010021098

950140018
53426U18426130270128



35.3
51420U1842010021098



17.9
54320U48320100175115



11.1
54324U48324120220143



23
