SUPERIOR RAW MATERIALS, FIRST CLASS WORKMANSHIP,
HIGH QUALITY BEARINGS

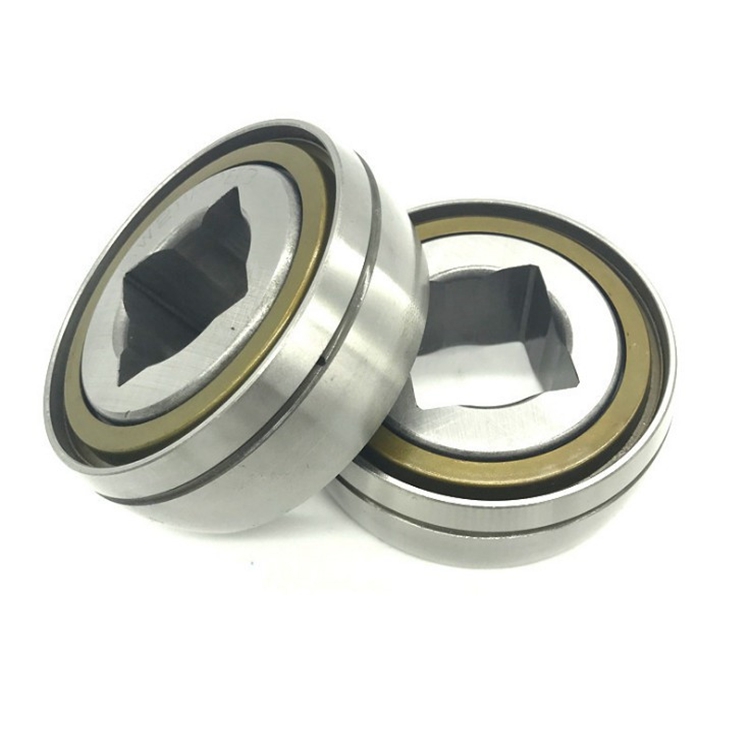

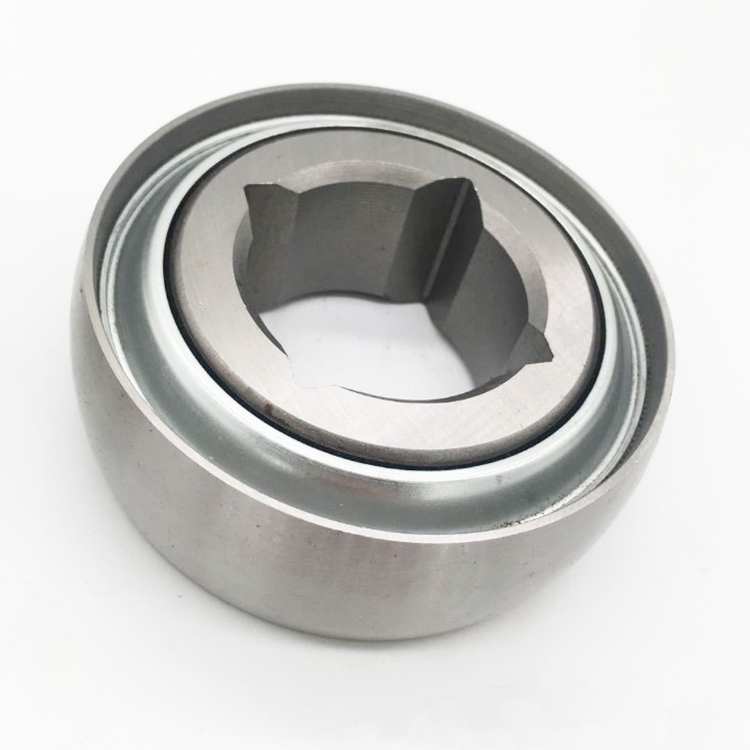

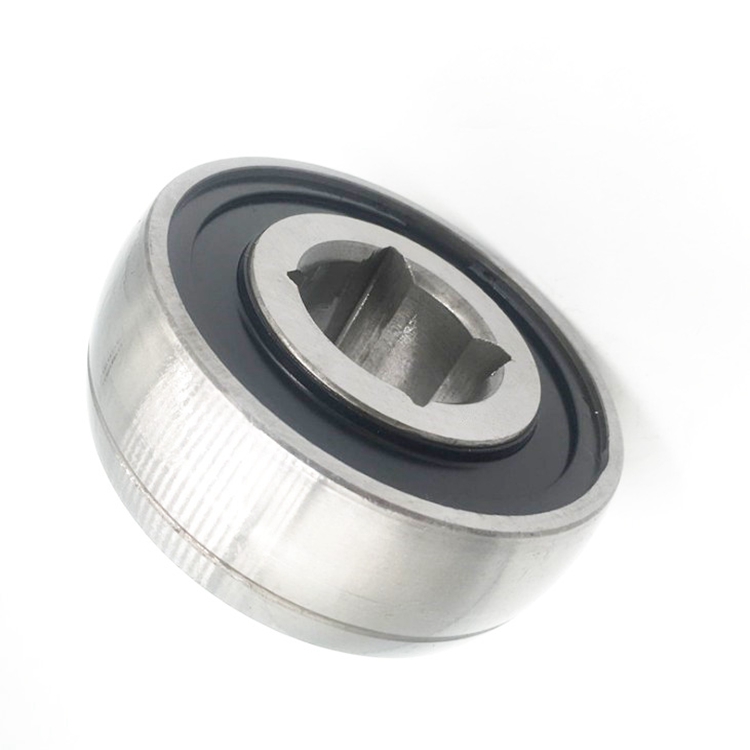

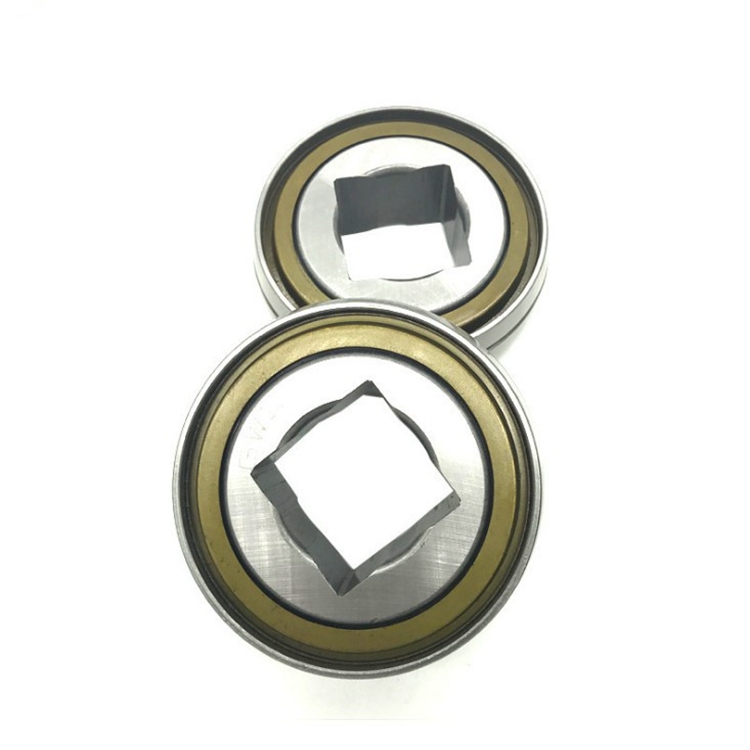

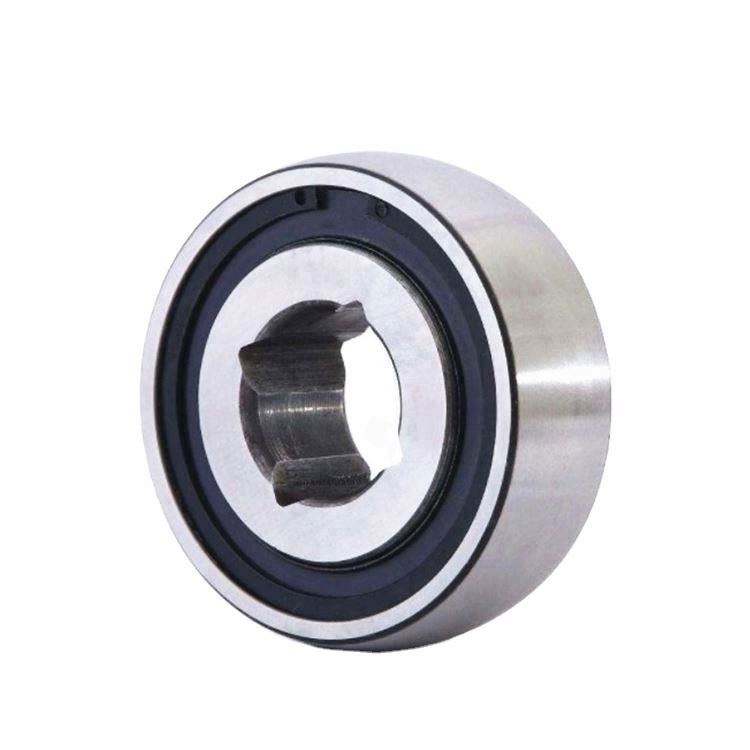

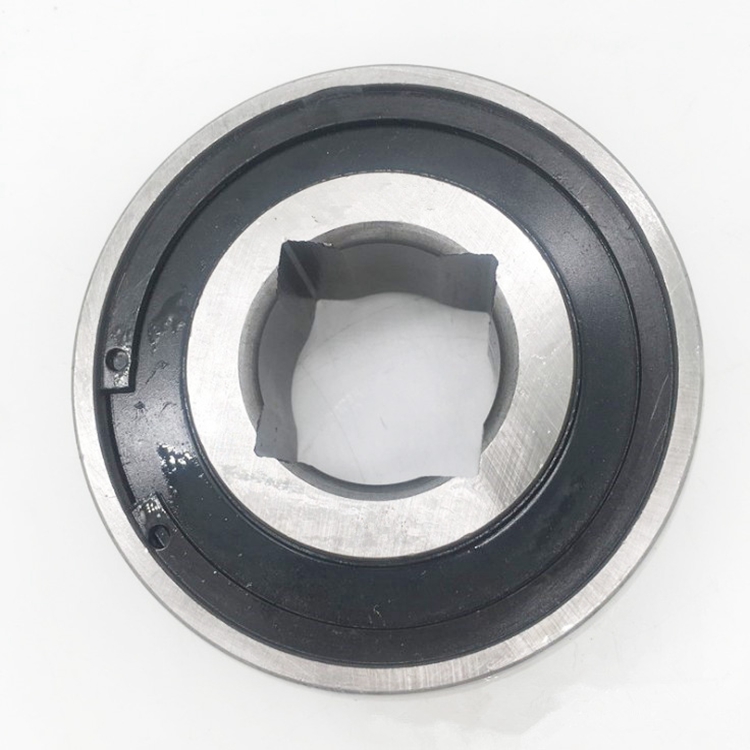

Square Bore and Spherical O.D. Series
Agricultural machinery needs to work very productively and reliably under extremely difficult conditions and often round the clock. In the summer, the dust makes it necessary for the bearing arrangements to be well sealed. In the spring and fall, hard soil conditions put the mechanical stability of the machine parts to a hard test. Constant vibrations and jarring shocks make for constant strain in all seasons. Agricultural machinery requires robust and dependable bearing supports that are sufficiently protected against environmental conditions such as dirt, impacts, rocks, dryness, and moisture.

Application solutions from TIK are especially designed for this. Our bearings are widely applicable in various agricultural machinery such as tractor, combine harvester, seed drill etc.
Request a Quote
Product Description

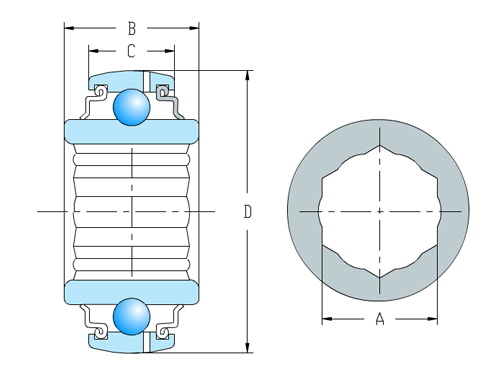

square bore and spherical O.D..jpg


Bearing No.Boundary dimensions(in)Basic load ratings(N)Mass
dDBCCr (Kg)
GW208PPB51-1/83.14961.4370.708262000.67
GW208PPB81-1/83.14961.4371.189262000.75
GW209PPB51-1/43.34641.4371.189292000.79
GW209PPB81-1/43.34641.4370.748292000.75
GW210PPB41-1/83.54331.1891.189315000.96
GW211PPB111-1/23.9371.750.984391001.02
GW211PPB31-1/23.9371.3111.311391001.21
GW211PPB61-1/24.1251.751.437391001.86
W208PPB117/83.4281.4371.189262000.93
W208PPB121-1/83.4281.4371.189262000.85
W208PPB137/83.14961.4370.708262000.73
W208PPB187/83.43851.4371.189262000.93
W208PPB191-1/83.43851.4371.189262000.85
W208PPB51-1/83.14961.4370.708262000.67
W208PPB81-1/83.14961.4371.189262000.75
W208PPB913.14961.4371.189262000.79
W209PPB51-1/43.34641.4371.189292000.79
W209PPB71-1/4343801.4371.189292000.84
W209PPB81-1/43.34641.4370.748292000.75
W210PPB41-1/83.54331.1891.189315000.96
W210PPB61-1/83.54331.4371.189315001.02
W211PPB31-1/23.9371.3111.311391001.21
W211PPB61-1/24.1251.751.437391001.86
