Home / Products / Spherical Plain Bearing & Rod End
GEEW...ES Series

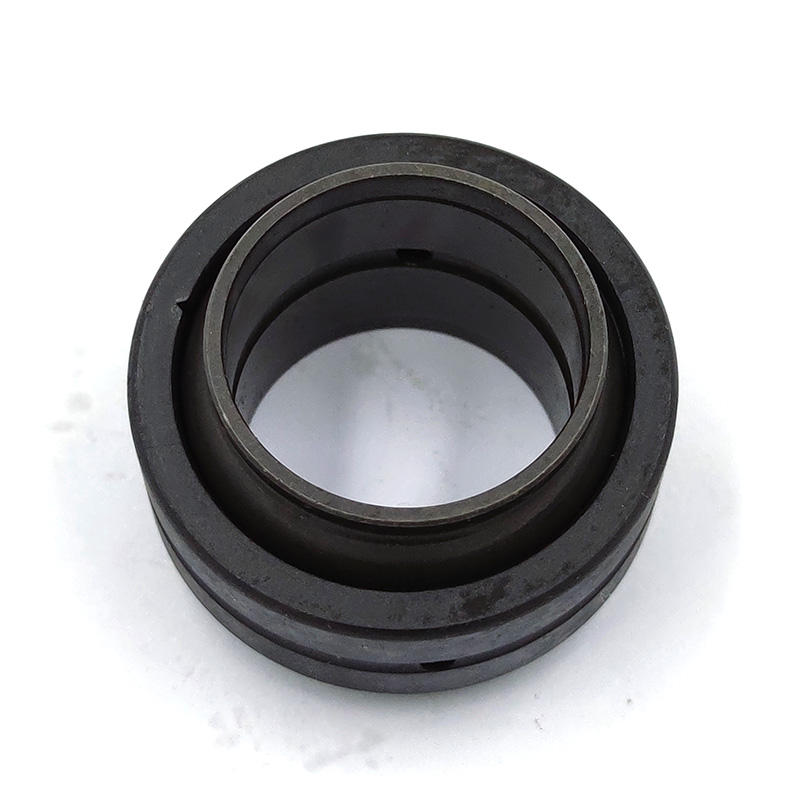

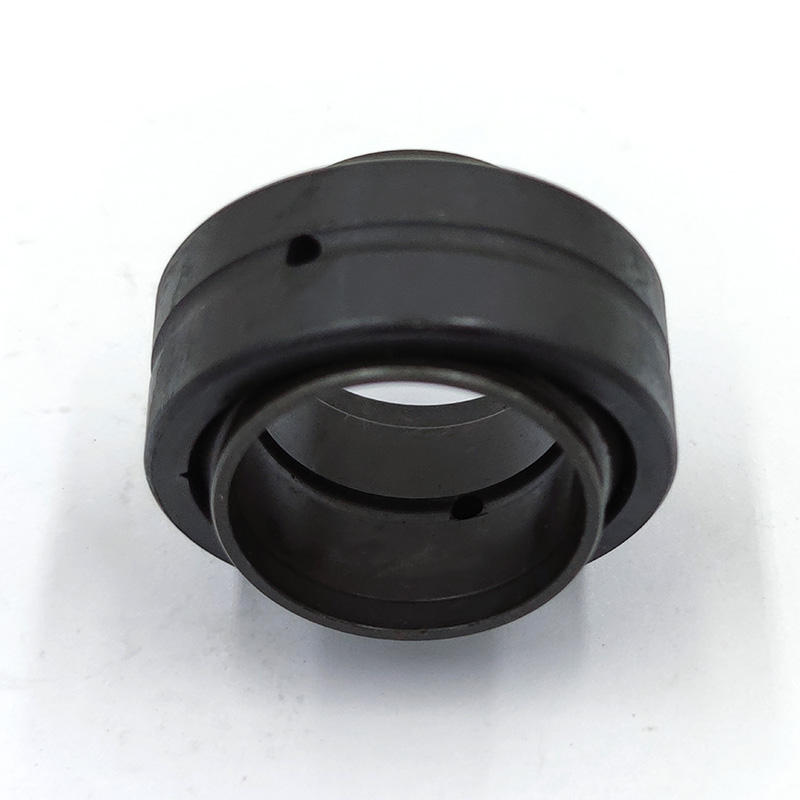

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
Request a Quote
Product Description

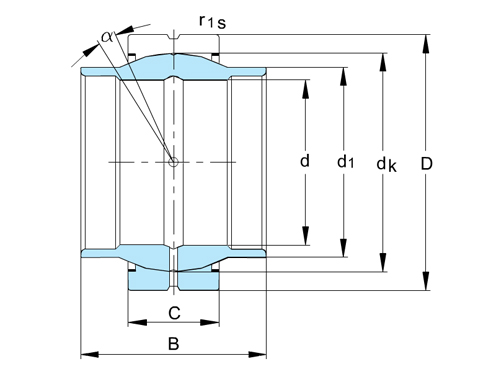

Bearing No.Boundary dimensions(mm)Mass
dDBCd1dkrsr1sα°Kg
maxminmin≈≈
GEEW12ES122212715.5180.30.340.022
GEEW15ES 152615918.5220.30.350.031
GEEW16ES162816920230.30.340.035
GEEW17ES1730171021250.30.370.044
GEEW20ES2035201225290.30.340.071
GEEW25ES2542251630.535.50.60.640.131

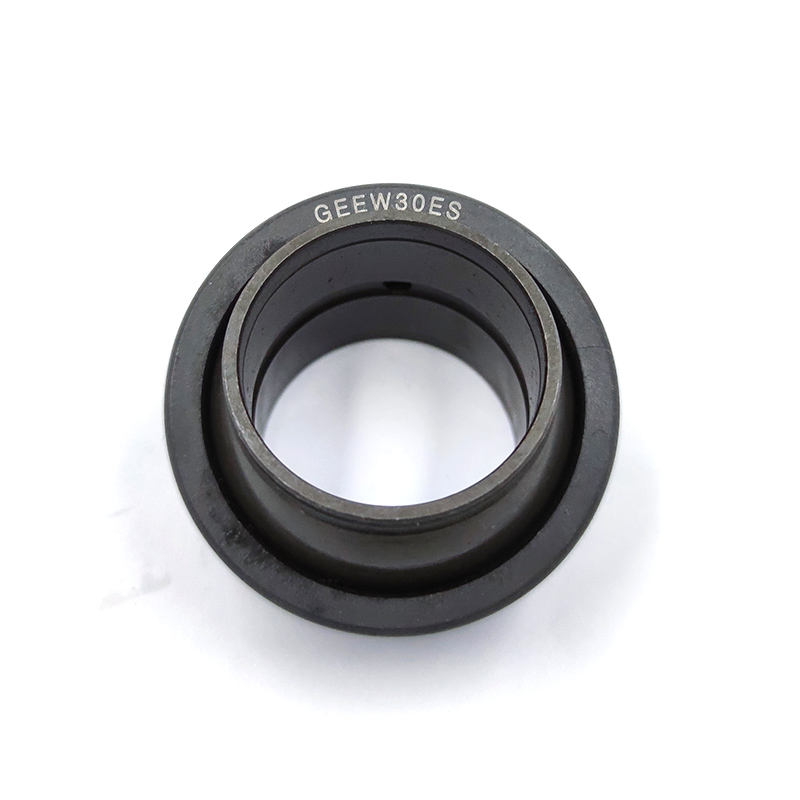

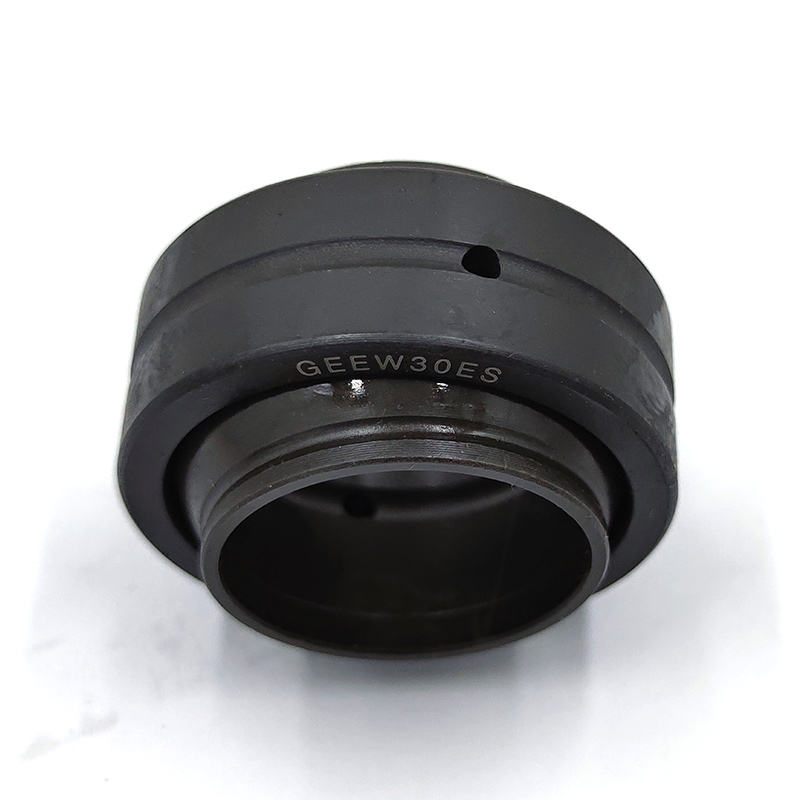

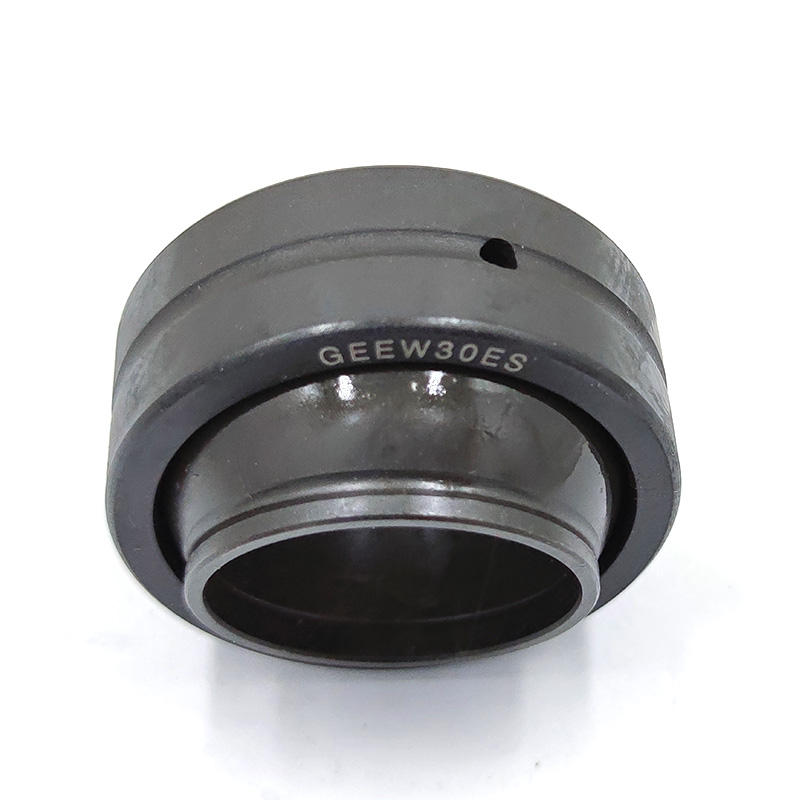

GEEW30ES304730183440.70.60.640.168
GEEW32ES3252321837440.6140.182
GEEW35ES3555352040470.6140.253
GEEW40ES4062402246530.6140.338
GEEW45ES4568452552600.6140.481
GEEW50ES5075502857660.6140.558
GEEW60ES6090603668801141.15
GEEW63ES6395633671.5831141.25
GEEW70ES70105704078921141.71
GEEW80ES801208045911051142.39
GEEW90ES901309050991151143.21
GEEW100ES100150100551131301144.79
GEEW110ES110160110551241401145.78
GEEW125ES125180125701381601148.49
GEEW160ES1602301608017720011416.5
GEEW200ES2002902001002212501.11.1432.1
GEEW250ES2504002501203173501.11.1499.1
GEEW320ES3205203201604054501.11.14225
