Home / Products / Spherical Plain Bearing & Rod End

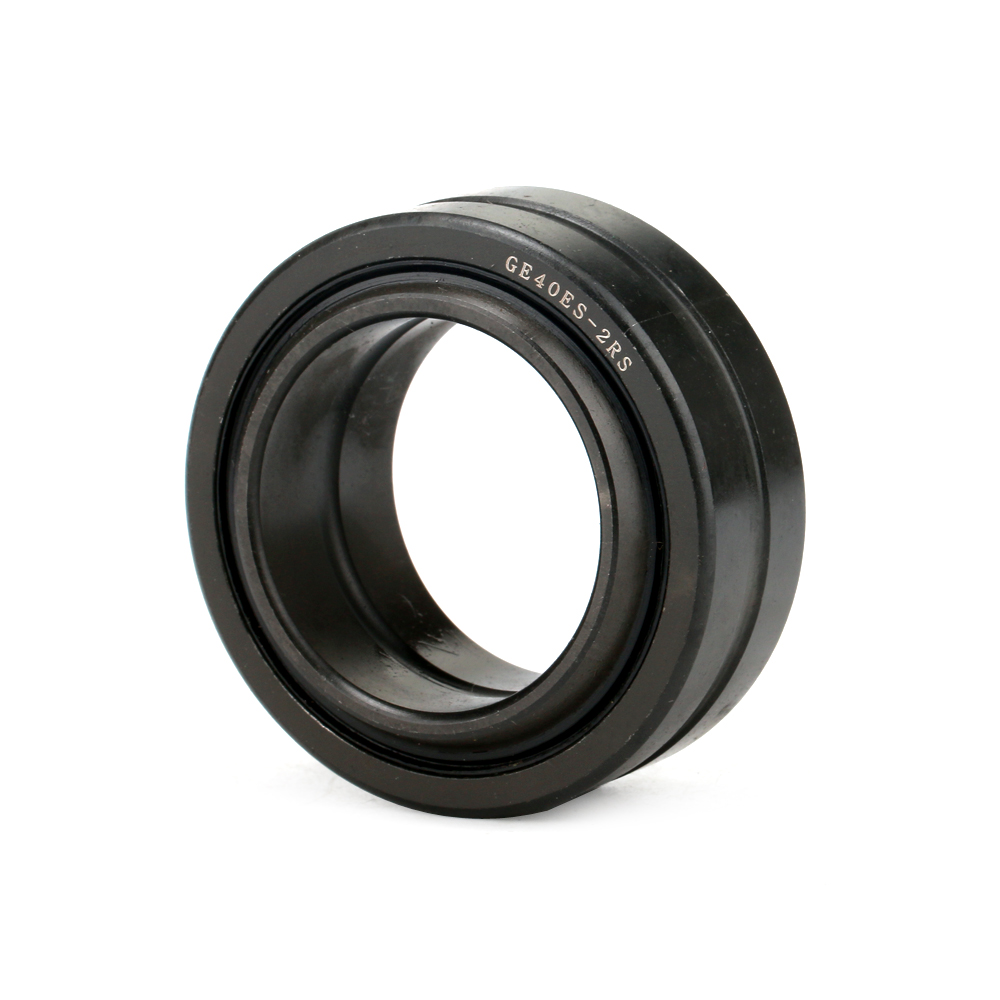

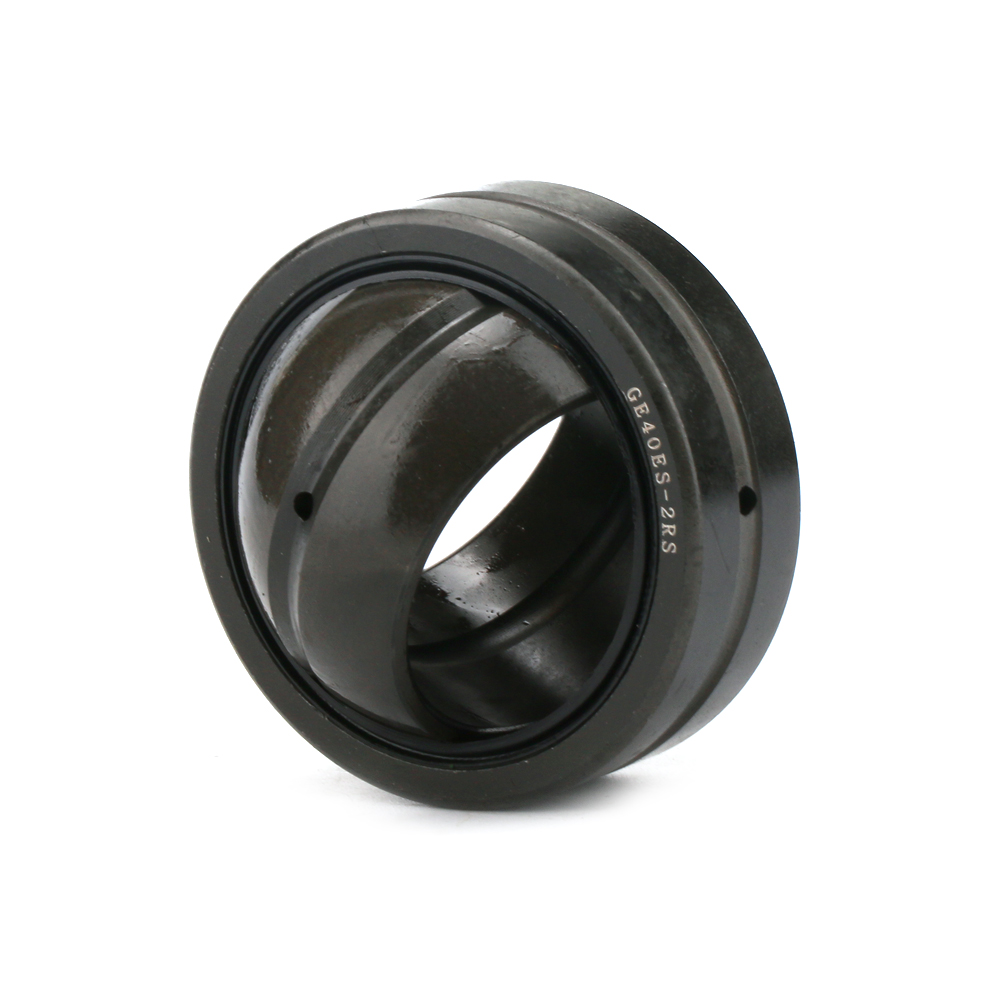

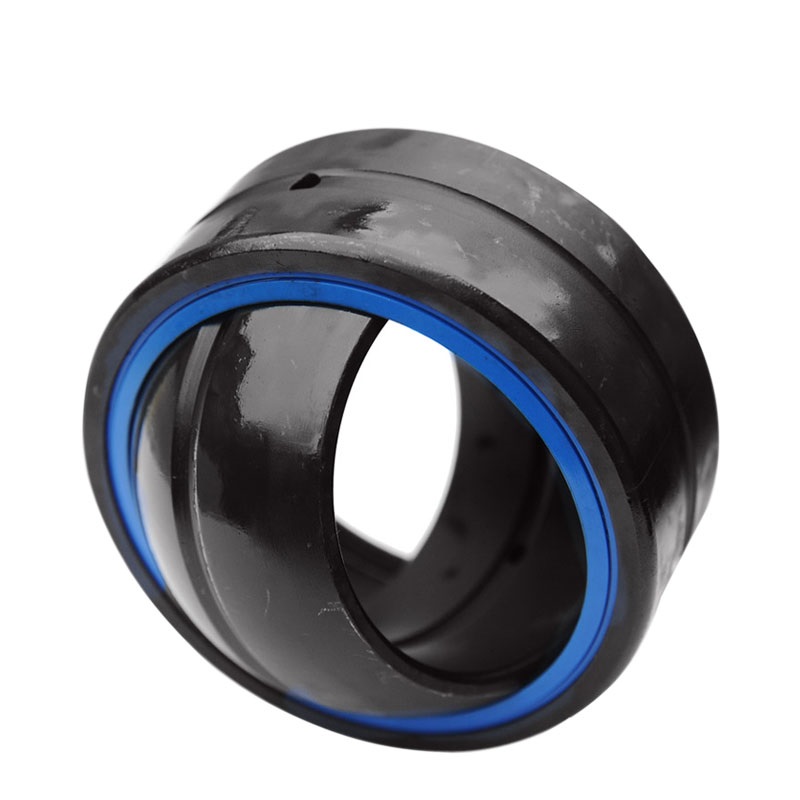

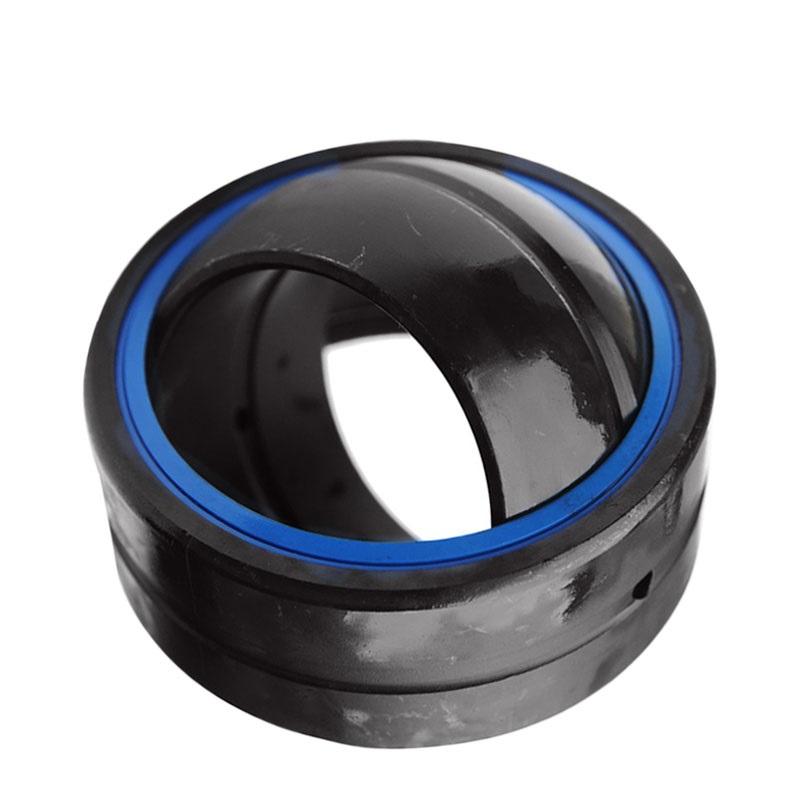

GE...ES 2RS Series
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
Request a Quote
Product Description

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.

Features

Designed for radial and combined radial and axial loads.

Long service life.

Minimal maintenance.

Suitable for heavy static, alternating or impact loads.

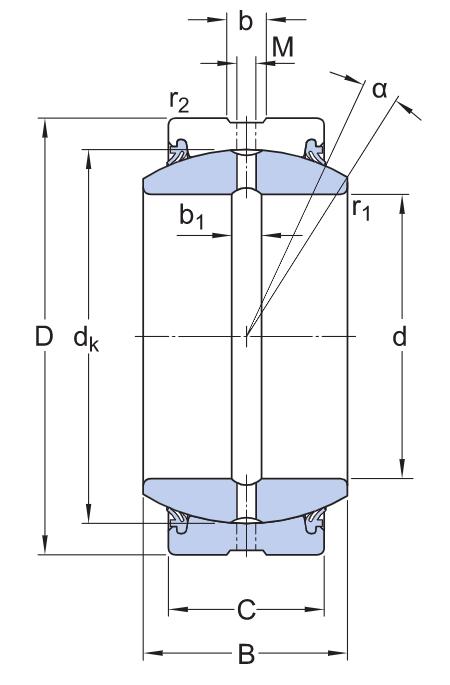

GE...ES 2RS.jpg



Bearing No.Boundary dimensions(mm)Mass
dDBCdkr1r2α°Kg
minmin≈≈
GE15ES-2RS1526129220.30.380.027
GE17ES-2RS17301410250.30.3100.041
GE20ES-2RS20351612290.30.390.066
GE25ES-2RS2542201635.50.60.670.119
GE30ES-2RS3047221840.70.60.660.153
GE35ES-2RS35552520470.6160.233
GE40ES-2RS40622822530.6170.306
GE45ES-2RS45683225600.6170.427
GE50ES-2RS50753528660.6160.546
GE55ES-2RS55854032740.6170.939
GE60ES-2RS60904436801161.04
GE70ES-2RS701054940921161.55
GE80ES-2RS8012055451051162.31
GE90ES-2RS9013060501151152.75
GE100ES-2RS10015070551301174.45
GE110ES-2RS11016070551401164.82
GE120ES-2RS12018085701601168.05
GE140ES-2RS140210907018011711.02
GE160ES-2RS1602301058020011814.01
GE180ES-2RS180260105802251.11.1618.65
GE200ES-2RS2002901301002501.11.1728.03
GE220ES-2RS2203201351002751.11.1835.51
GE240ES-2RS2403401401003001.11.1839.91
GE260ES-2RS2603701501103251.11.1751.54
GE280ES-2RS2804001551203501.11.1665.06
GE300ES-2RS3004301651203751.11.1778.07
