Home / Products / Spherical Plain Bearing & Rod End

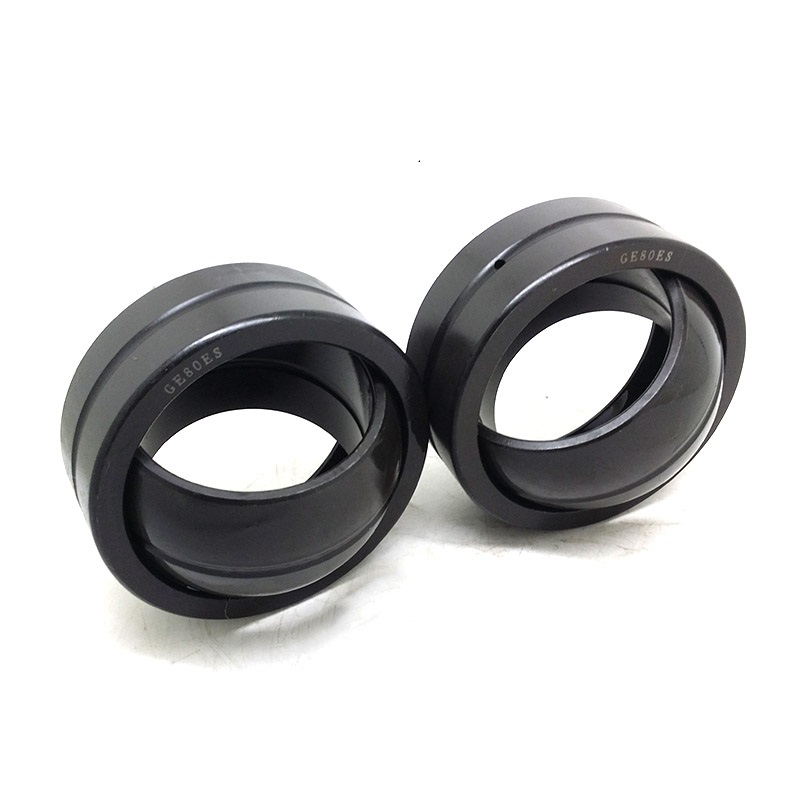

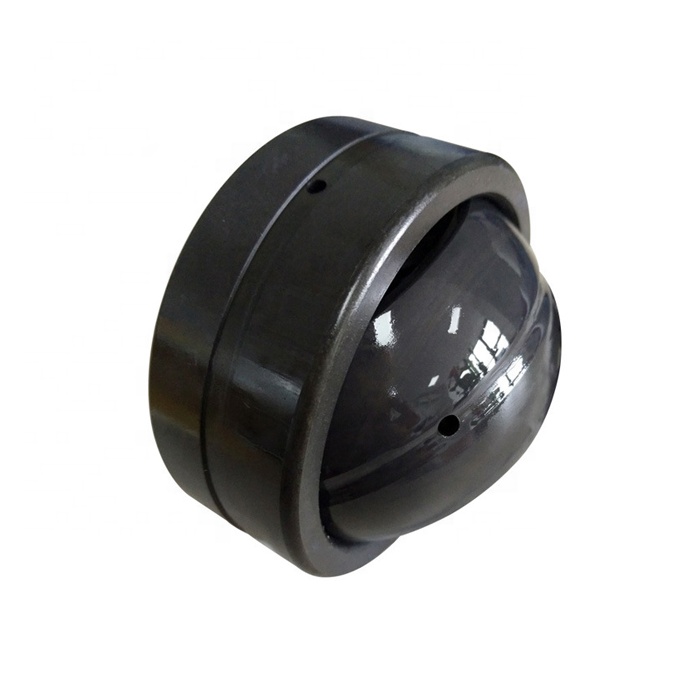

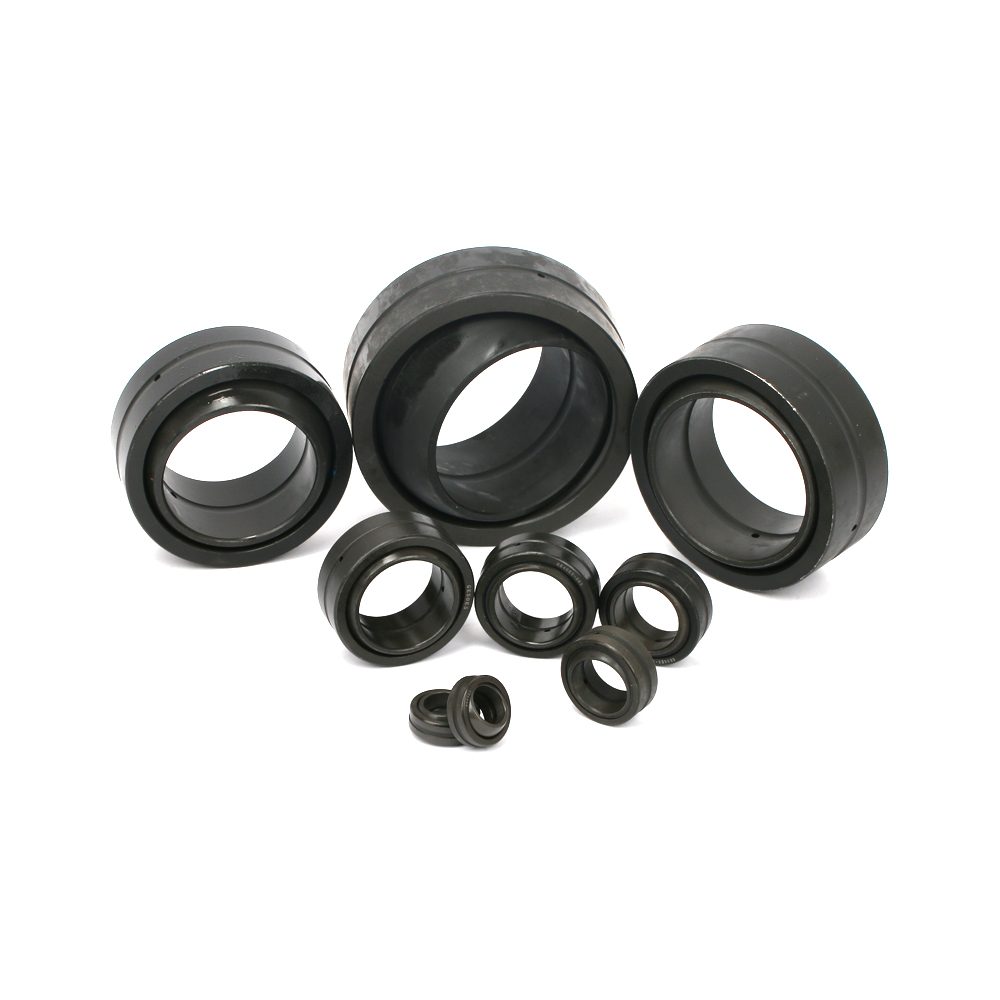

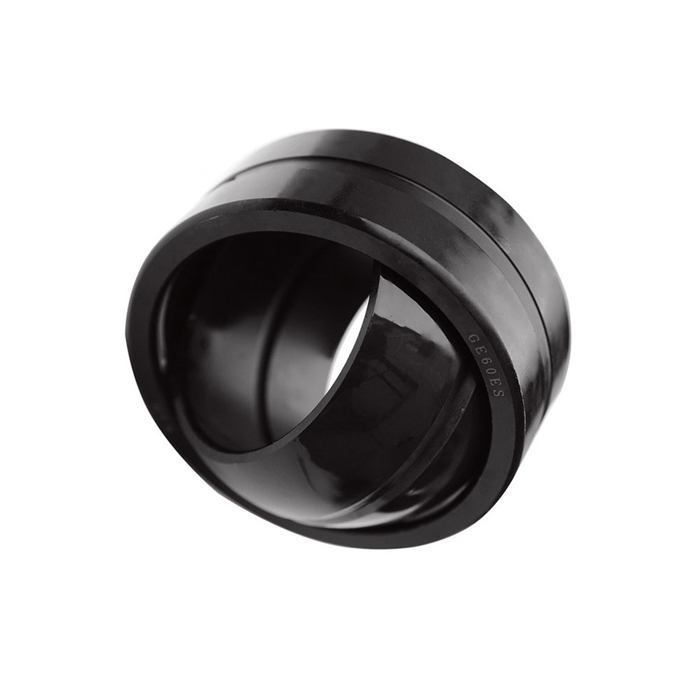

GE...ES Series
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
Request a Quote
Product Description

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.

Features

Designed for radial and combined radial and axial loads.

Suitable for heavy static, alternating or impact loads.

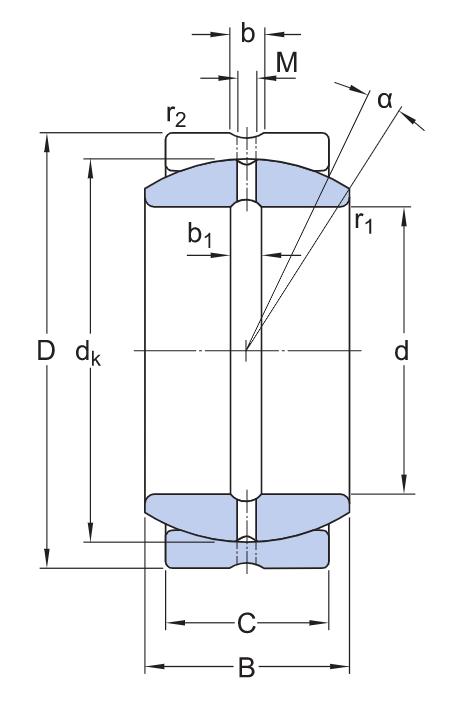

Bearing No.Boundary dimensions(mm)Mass
dDBCdkr1r2α°Kg
minmin≈≈
GE15ES1526129220.30.380.027
GE17ES17301410250.30.3100.041
GE20ES20351612290.30.390.066
GE25ES2542201635.50.60.670.119
GE30ES3047221840.70.60.660.153
GE35ES35552520470.6160.233
GE40ES40622822530.6170.306
GE45ES45683225600.6170.427
GE50ES50753528660.6160.546
GE55ES55854032740.6170.939
GE60ES60904436801161.04
GE70ES701054940921161.55
GE80ES8012055451051162.31
GE90ES9013060501151152.75
GE100ES10015070551301174.45
GE110ES11016070551401164.82
GE120ES12018085701601168.05
GE140ES140210907018011711.02
GE160ES1602301058020011814.01
GE180ES180260105802251.11.1618.65
GE200ES2002901301002501.11.1728.03
GE220ES2203201351002751.11.1835.51
GE240ES2403401401003001.11.1839.91
GE260ES2603701501103251.11.1751.54
GE280ES2804001551203501.11.1665.06
GE300ES3004301651203751.11.1778.07
