UC Series
Radial insert ball bearings are ready-to-fit machine elements. In combination with drawn shafts, they are particularly easy to fit and suitable for the design of economical bearing arrangements. They are highly suitable where predominantly radial loads must be supported.

The outer rings of radial insert ball bearings have a spherical or cylindrical outside surface. Radial insert ball bearings are available with a metric or inch size bore. Black Series radial insert ball bearings with a Durotect BS coating have basic anti-corrosion resistance. Corrosion-resistant radial insert ball bearings are available in a high grade steel version or with a Corrotect coating.

Location of radial insert ball bearings on the shaft is by means of an eccentric locking collar, grub screws in the inner ring, an adapter sleeve, a drive slot, fit or profiled bore.

In combination with a housing matched to the design, bearings with a spherical outside surface can compensate for static misalignment of the shaft.
Request a Quote
Product Description

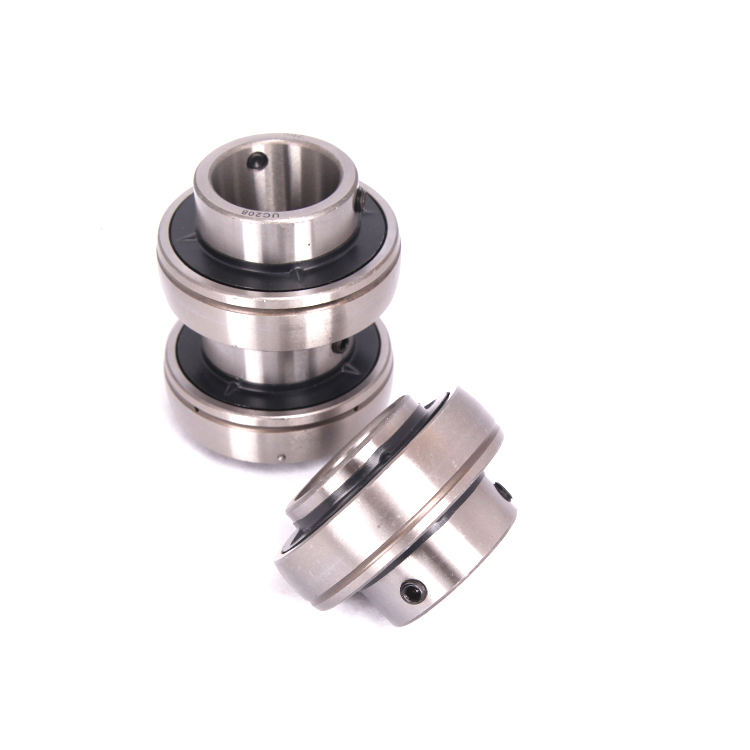

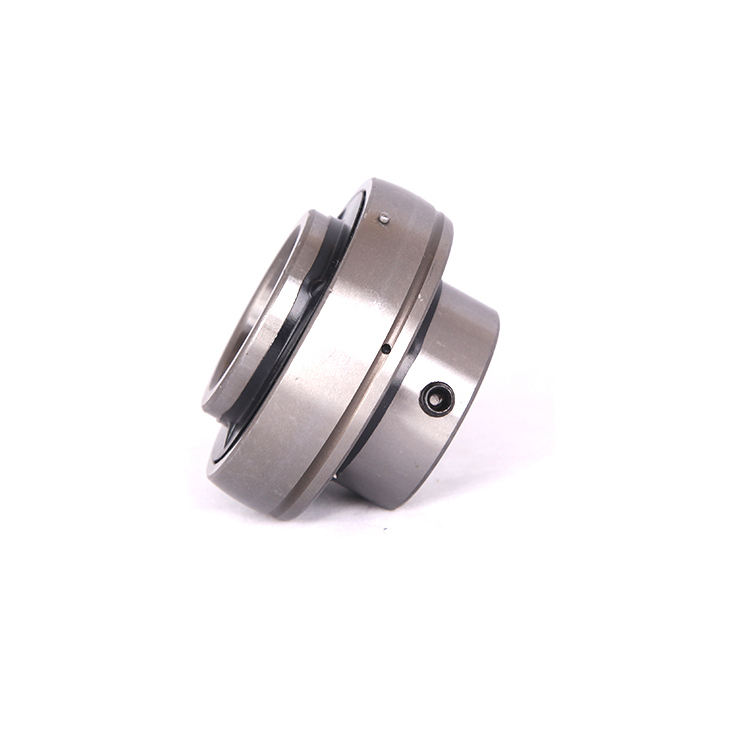

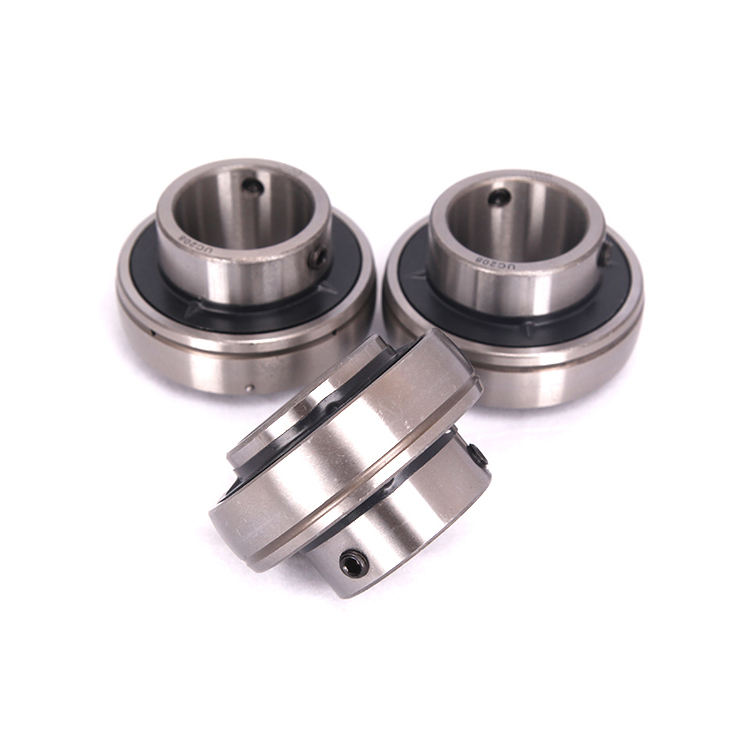

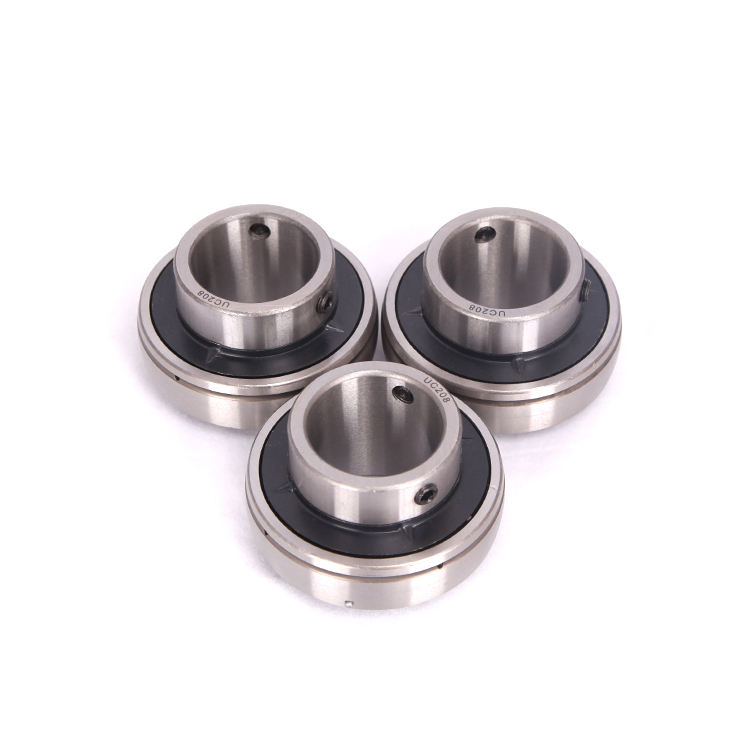

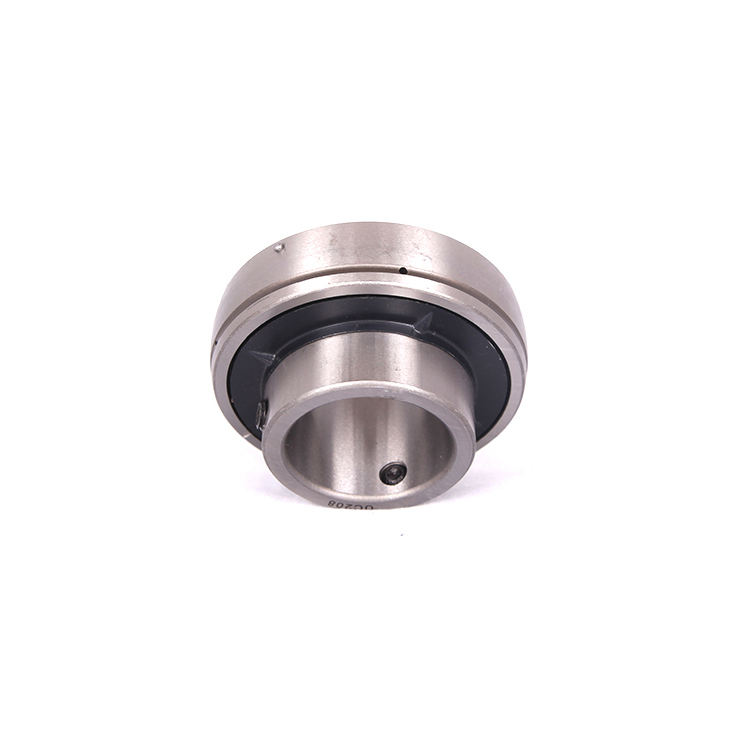

Radial insert ball bearings UC, spherical outer ring, location by grub screws, RS seals on both sides.

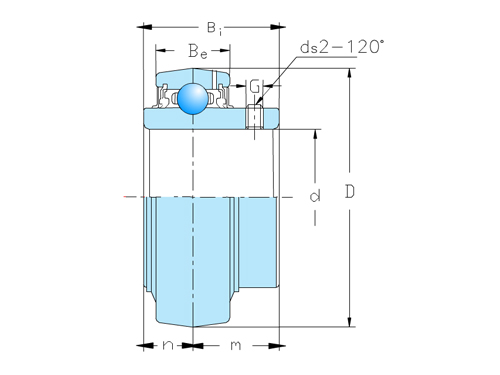

UC gongchengtu.jpg


Bearing No.Shaft DiaBoundary dimensions(mm)Basic load ratingsMass(Kg)
in.mmDBiBenmGdsCCo≈
UC201
1247311612.718.35M6x1.01289064900.21
UC201-81/2
47311612.718.351/4-28UNF1289064900.21
UC202
1547311612.718.35M6x1.01289064900.2
UC202-105/8
47311612.718.351/4-28UNF1289064900.19
UC203
1747311612.718.35M6x1.01289064900.18
UC204
2047311612.718.35M6x1.01289064900.17
UC204-123/4
47311612.718.351/4-28UNF1289064900.18
UC205
2552341714.319.75.5M6x1.01400075600.2
UC205-147/8
52341714.319.75.51/4-28UNF1400075600.23
UC205-1515/16
52341714.319.75.51/4-28UNF1400075600.21
UC205-161
52341714.319.75.51/4-28UNF1400075600.2
UC206
306238.11915.922.26M6x1.019510111600.33
UC206-171-1/16
6238.11915.922.261/4-28UNF19510111600.37
UC206-181-1/8
6238.11915.922.261/4-28UNF19510111600.35
UC206-191-3/16
6238.11915.922.261/4-28UNF19510111600.33
UC206-201-1/4
6238.11915.922.261/4-28UNF19510111600.3
UC207
357242.92017.525.46.5M8x1.025640153300.4
UC207-201-1/4
7242.92017.525.46.55-16/24UNF25640153300.55
UC207-211-5/16
7242.92017.525.46.55-16/24UNF25640153300.52
UC207-221-3/8
7242.92017.525.46.55-16/24UNF25640153300.49
UC207-231-7/16
7242.92017.525.46.55-16/24UNF25640153300.46
UC208
408049.2211930.28M8x1.028890171100.65
UC208-241-1/2
8049.2211930.285-16/24UNF28890171100.69
UC208-251-9/16
8049.2211930.285-16/24UNF28890171100.67
UC209
458549.2221930.28M8x1.032670182200.7
UC209-261-5/8
8549.2221930.285-16/24UNF32670182200.8
UC209-271-11/16
8549.2221930.285-16/24UNF32670182200.76
UC209-281-3/4
8549.2221930.285-16/24UNF32670182200.71
UC210
509051.6241932.69M10x1.2535110208400.8
UC210-301-7/8
9051.6241932.693/8-24UNF35110208400.87
UC210-311-15/16
9051.6241932.693/8-24UNF35110208400.82
UC210-322
9051.6241932.693/8-24UNF35110208400.77
UC211
5510055.62522.233.49M10x1.2543330260001.08
UC211-322
10055.62522.233.493/8-24UNF43330260001.23
UC211-342-1/8
10055.62522.233.493/8-24UNF43330260001.18
UC211-352-3/16
10055.62522.233.493/8-24UNF43330260001.06
UC212
6011065.12725.439.710.5M10x1.2551110360001.53
UC212-362-1/4
11065.12725.439.710.53/8-24UNF51110360001.66
UC212-382-3/8
11065.12725.439.710.53/8-24UNF51110360001.51
UC212-392-7/16
11065.12725.439.710.53/8-24UNF51110360001.44
UC213
6512065.12825.439.712M10x1.2556890395601.85
UC213-402-1/2
12065.12825.439.7123/8-24UNF56890395601.94
UC214
7012574.63030.244.412M12x1.2562220440002.1
UC214-432-11/16
12574.63030.244.4127/16-20UNF62220440002.2
UC214-442-3/4
12574.63030.244.4127/16-20UNF62220440002.11
UC215
7513077.83033.344.512M12x1.2566220488902.35
UC215-472-15/16
13077.83033.344.5127/16-20UNF66220488902.39
UC215-483
13077.83033.344.5127/16-20UNF66220488902.26
