Home / Products / Cylindrical Roller Thrust Bearing
K89400 Series
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

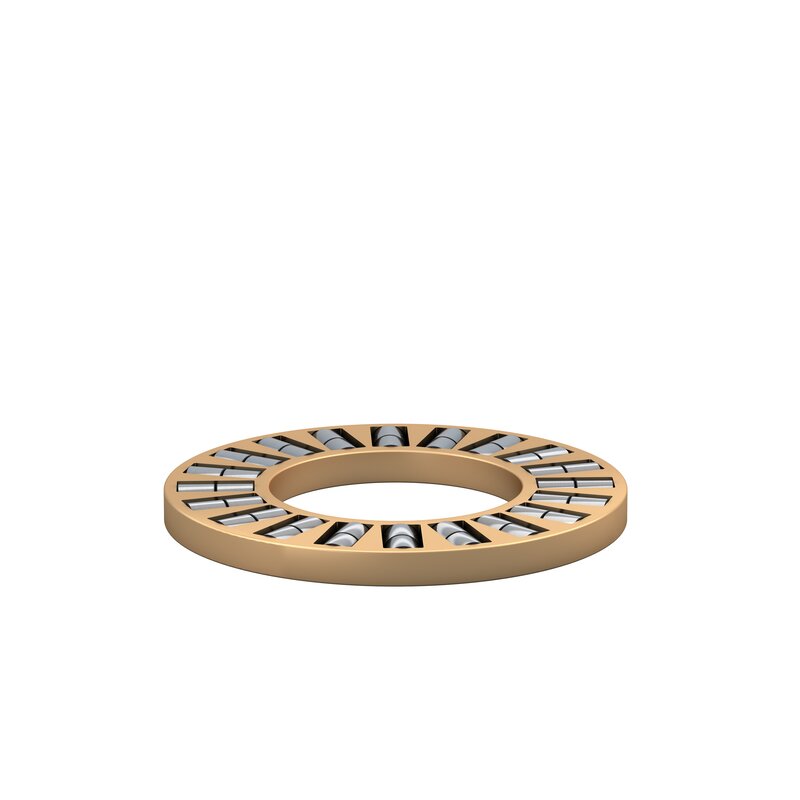

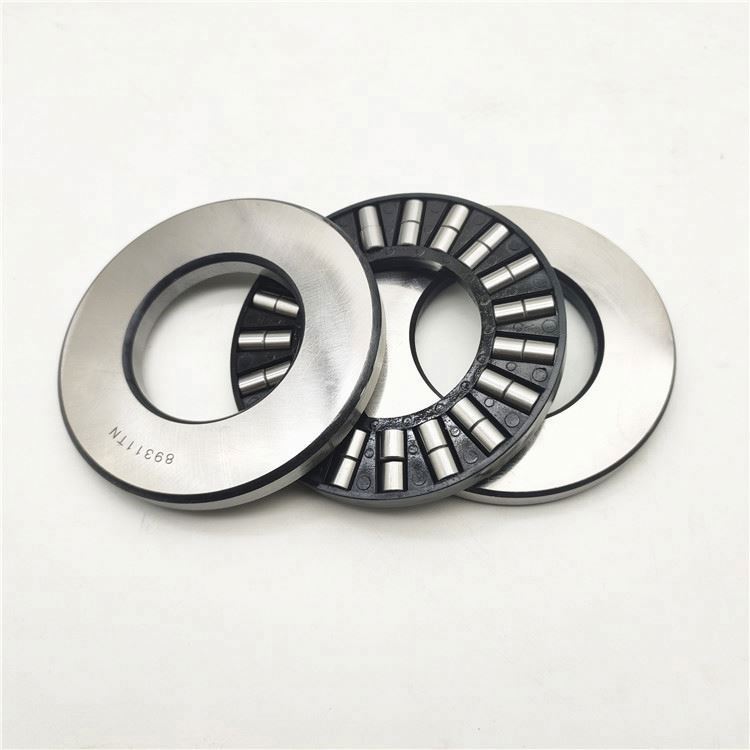

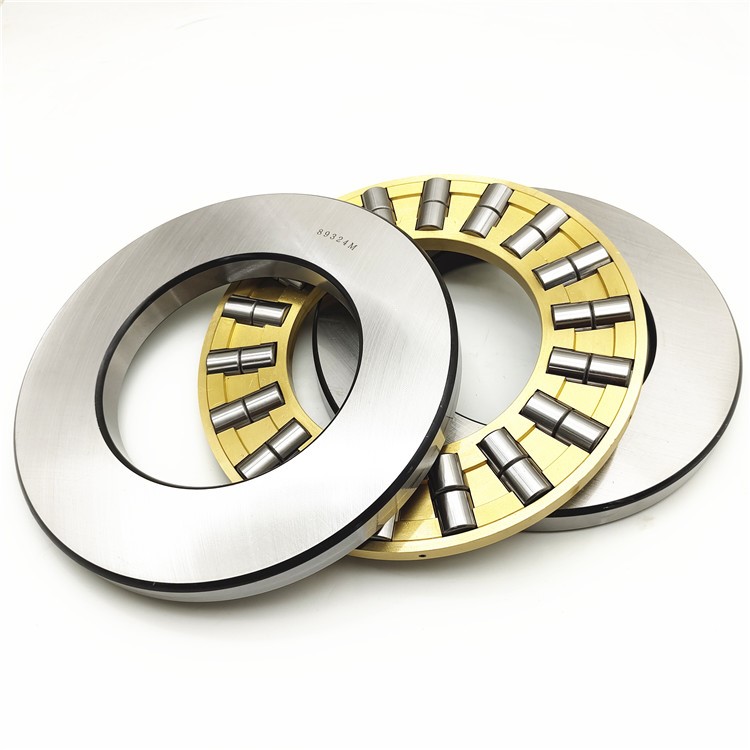

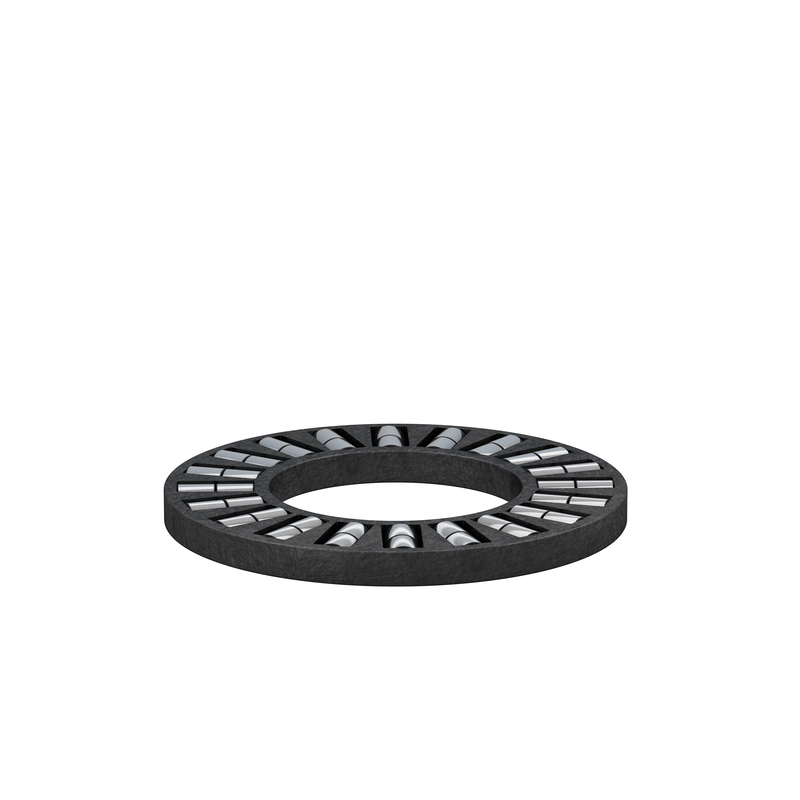

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.


K89400 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  K 89412 TN  60  130
  14  310  1 180  1 200  2 400
  K 89413 TN  65  140
  15  355  1 370  1 100  2 200
  K 89414 TN  70  150
  16  380  1 460  1 000  2 000
  K 89415 M  75  160
  17  400  1 530  950  1 900
  K 89416 M  80  170
  18  440  1 730  900  1 800
  K 89417 M  85  180
  19  490  1 930  850  1 700
  K 89418 M  90  190
  20  540  2 120  800  1 600
  K 89420 M  100  210
  22  680  2 800  700  1 400
  K 89422 M  110  230
  24  800  3 350  630  1 300
  K 89424 M  120  250
  26  930  3 900  600  1 200
  K 89426 M  130  270
  28  1 060  4 500  530  1 100
  K 89428 M  140  280
  28  1 100  4 800  530  1 100
  K 89430 M  150  300
  30  1 250  5 600  500  1 000
  K 89432 M  160  320
  32  1 430  6 400  480  950
  K 89434 M  170  340
  34  1 600  7 200  430  850
  K 89436 M  180  360
  36  1 760  8 000  400  800
  K 89438 M  190  380
  38  1 960  9 000  380  750
  K 89440 M  200  400
  40  2 160  10 000  360  700
  K 89444 M  220  420
  40  2 320  11 200  340  700
