Home / Products / Cylindrical Roller Thrust Bearing

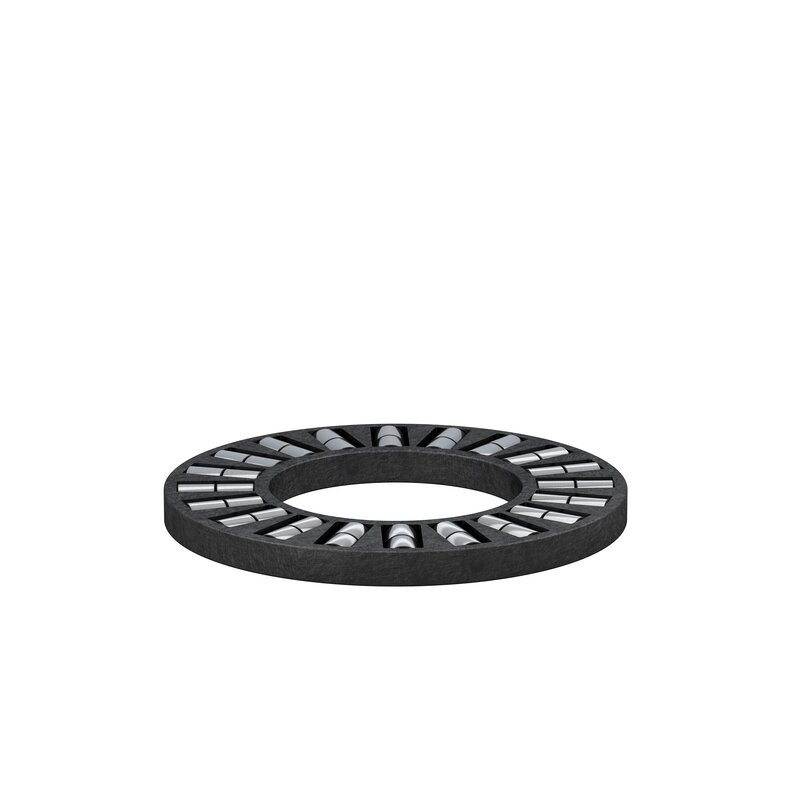

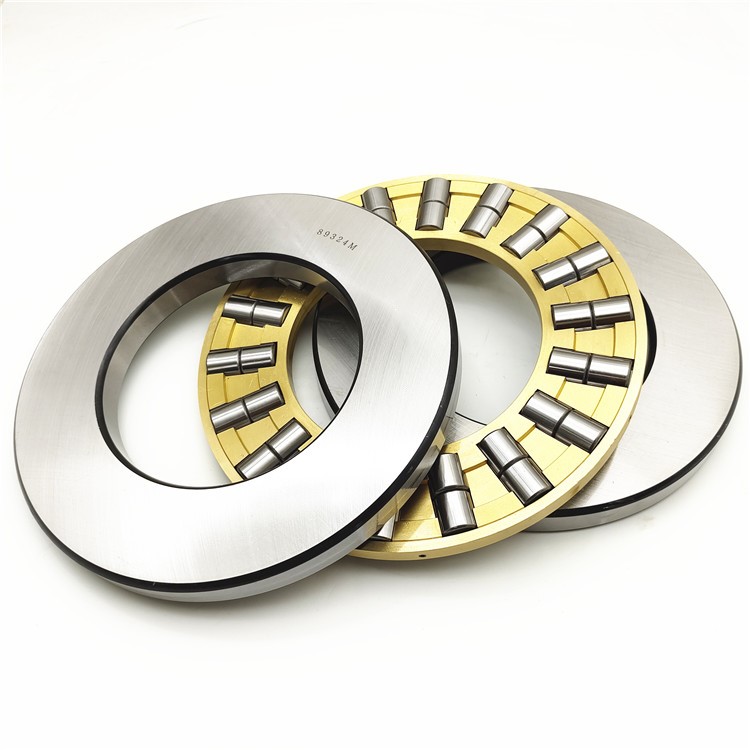

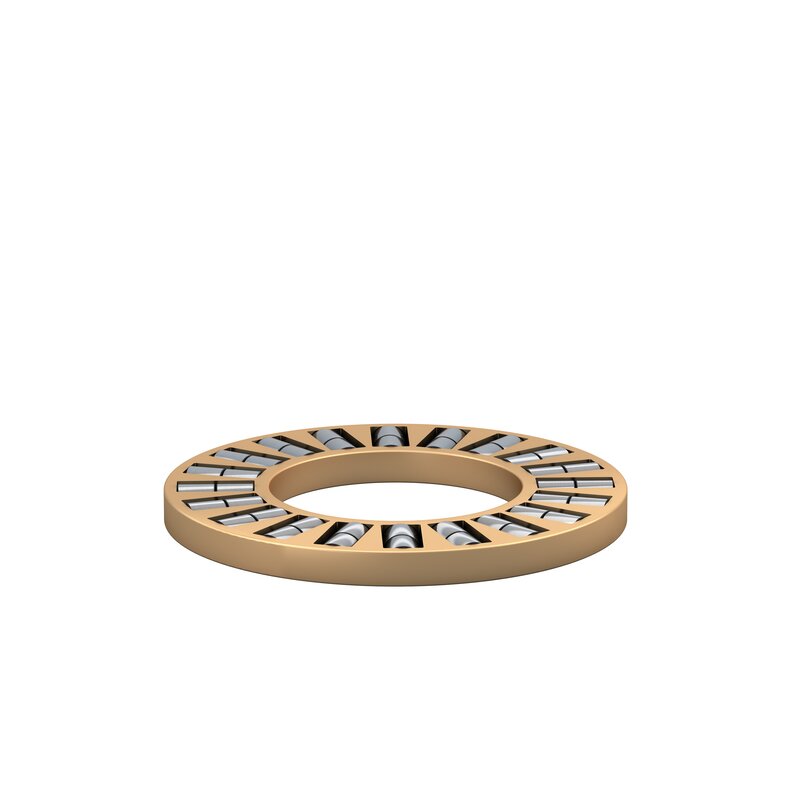

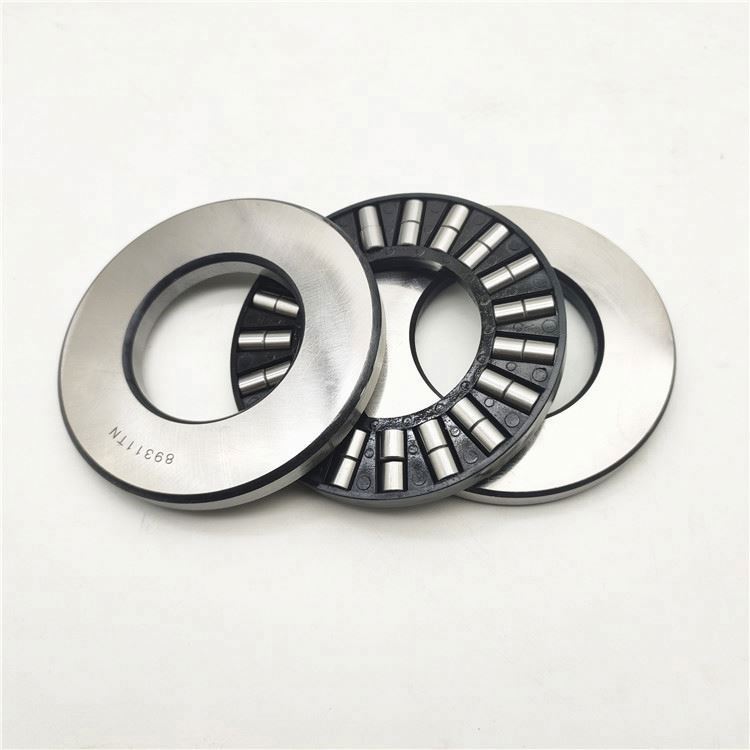

K89300 Series
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

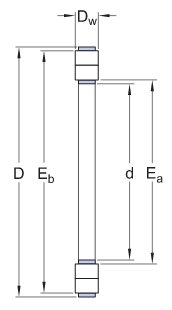

K89300 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  K 89306 TN  30  60
  5.5  52  183  2 600  5 300
  K 89307 TN  35  68
  6  62  220  2 400  4 800
  K 89309 TN  45  85
  7.5  108  425  1 800  3 600
  K 89310 TN  50  95
  8  132  530  1 600  3 200
  K 89311 TN  55  105
  9  143  570  1 500  3 000
  K 89312 TN  60  110
  9  153  640  1 400  2 800
  K 89313 TN  65  115
  9  153  640  1 400  2 800
  K 89314 TN  70  125
  10  186  800  1 300  2 600
  K 89315 TN  75  135
  11  228  965  1 200  2 400
  K 89316 TN  80  140
  11  240  1 060  1 200  2 400
  K 89317 M  85  150
  12  255  1 100  1 100  2 200
  K 89318 M  90  155
  12  265  1 160  1 000  2 000
  K 89320 M  100  170
  13  300  1 370  950  1 900
  K 89322 M  110  190
  15  400  1 830  850  1 700
  K 89324 M  120  210
  17  510  2 360  750  1 500
  K 89326 M  130  225
  18  560  2 650  700  1 400
  K 89328 M  140  240
  19  640  3 100  670  1 300
  K 89330 M  150  250
  19  670  3 250  630  1 300
