Home / Products / Cylindrical Roller Thrust Bearing

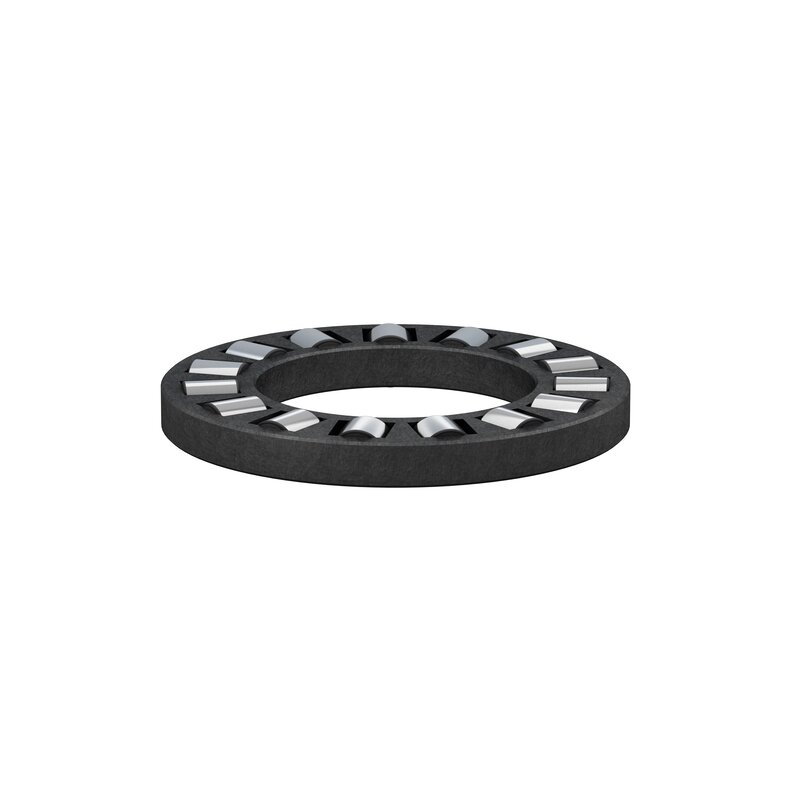

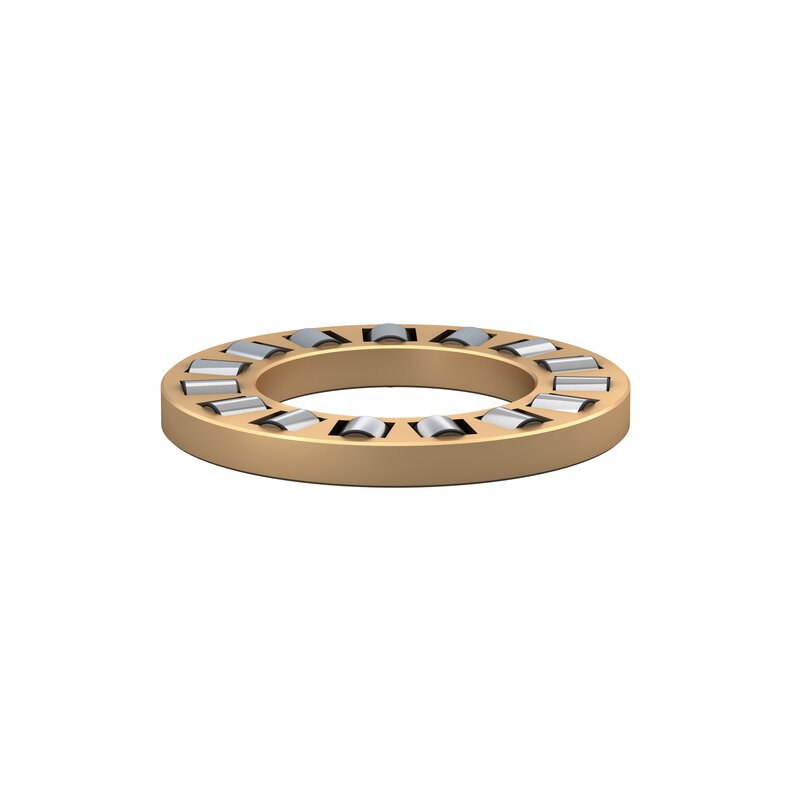

K81200 Series

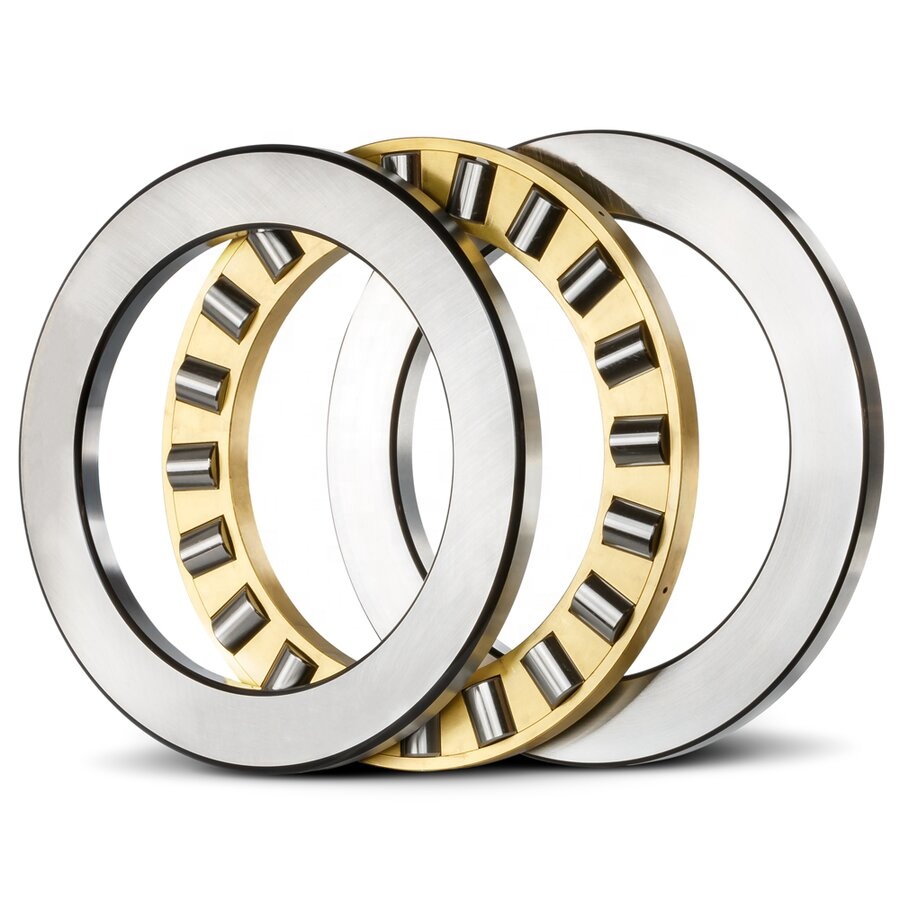

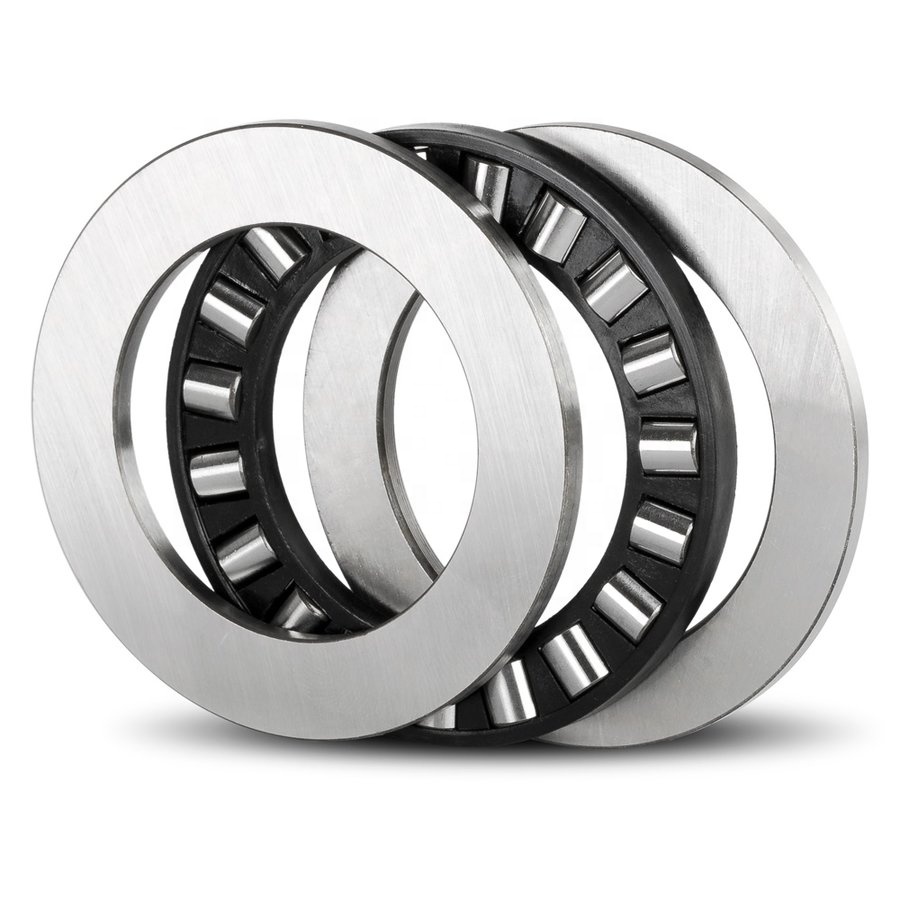

Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

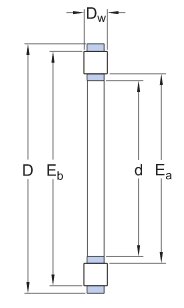

K81210 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  K 81206 TN  30  52
  7.5  50  134  2 400  4 800
  K 81207 TN  35  62
  7.5  62  190  2 000  4 000
  K 81208 TN  40  68
  9  83  255  1 900  3 800
  K 81209 TN  45  73
  9  83  255  1 800  3 600
  K 81210 TN  50  78
  9  91.5  300  1 700  3 400
  K 81211 TN  55  90
  11  122  390  1 400  2 800
  K 81212 TN  60  95
  11  137  465  1 400  2 800
  K 81213 TN  65  100
  11  140  490  1 300  2 600
  K 81214 TN  70  105
  11  146  530  1 300  2 600
  K 81215 TN  75  110
  11  137  490  1 200  2 400
  K 81216 TN  80  115
  11  160  610  1 200  2 400
  K 81217 TN  85  125
  12  170  640  1 100  2 200
  K 81218 TN  90  135
  14  232  865  1 000  2 000
  K 81228 M  140  200
  19  360  1 400  700  1 400
  K 81230 M  150  215
  21  465  1 900  630  1 300
  K 81232 M  160  225
  21  480  2 000  600  1 200
  K 81234 M  170  240
  22  540  2 280  560  1 100
  K 81236 M  180  250
  22  550  2 400  560  1 100
  K 81238 M  190  270
  26  695  2 900  500  1 000
  K 81240 M  200  280
  26  720  3 100  500  1 000
  K 81244 M  220  300
  26  750  3 350  480  950
  K 81252 M  260  360
  32  1 140  5 300  380  750
  K 81256 M  280  380
  32  1 160  5 500  360  750
  K 81260 M  300  420
  38  1 530  7 200  320  630
