Home / Products / Cylindrical Roller Thrust Bearing

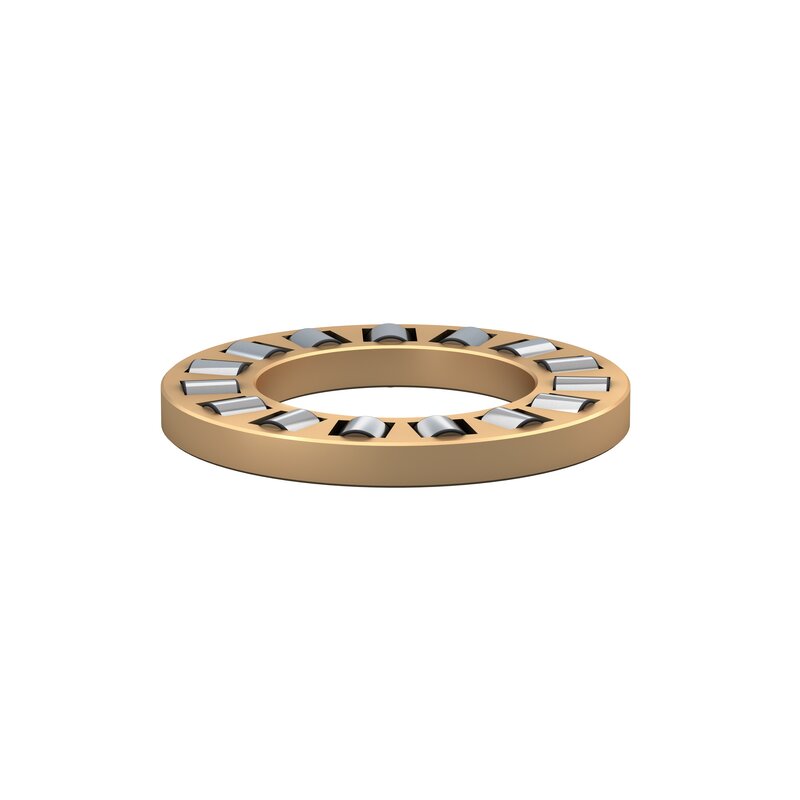

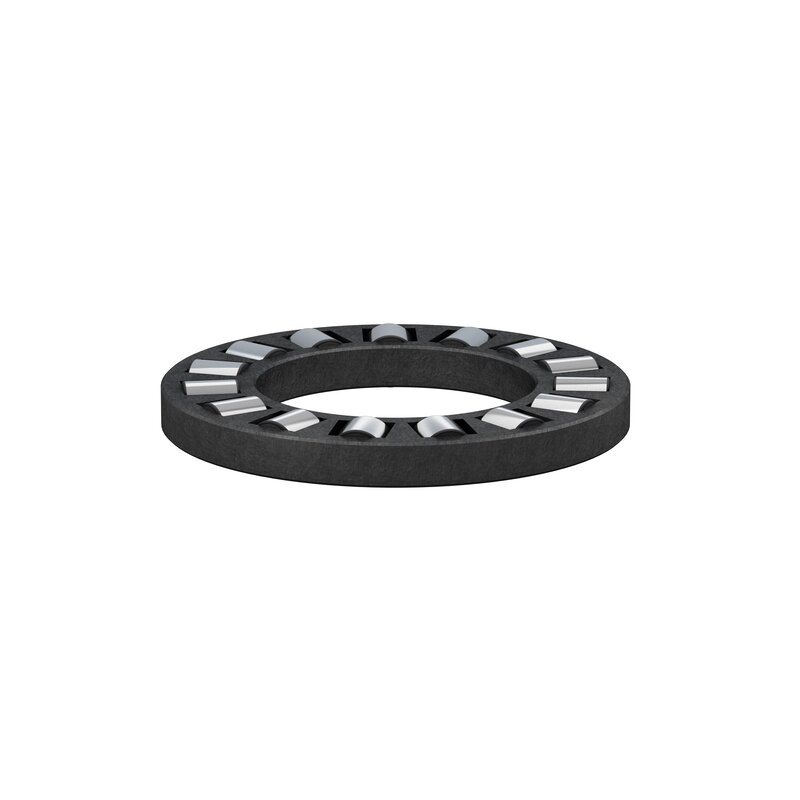

K81100 Series

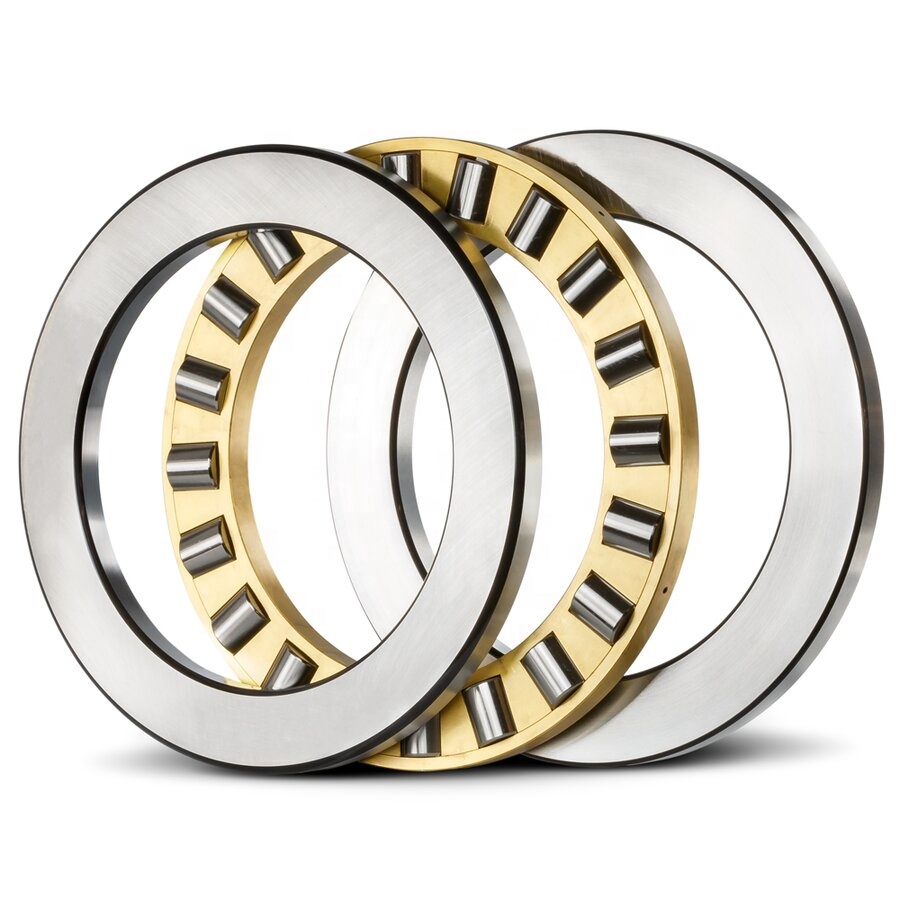

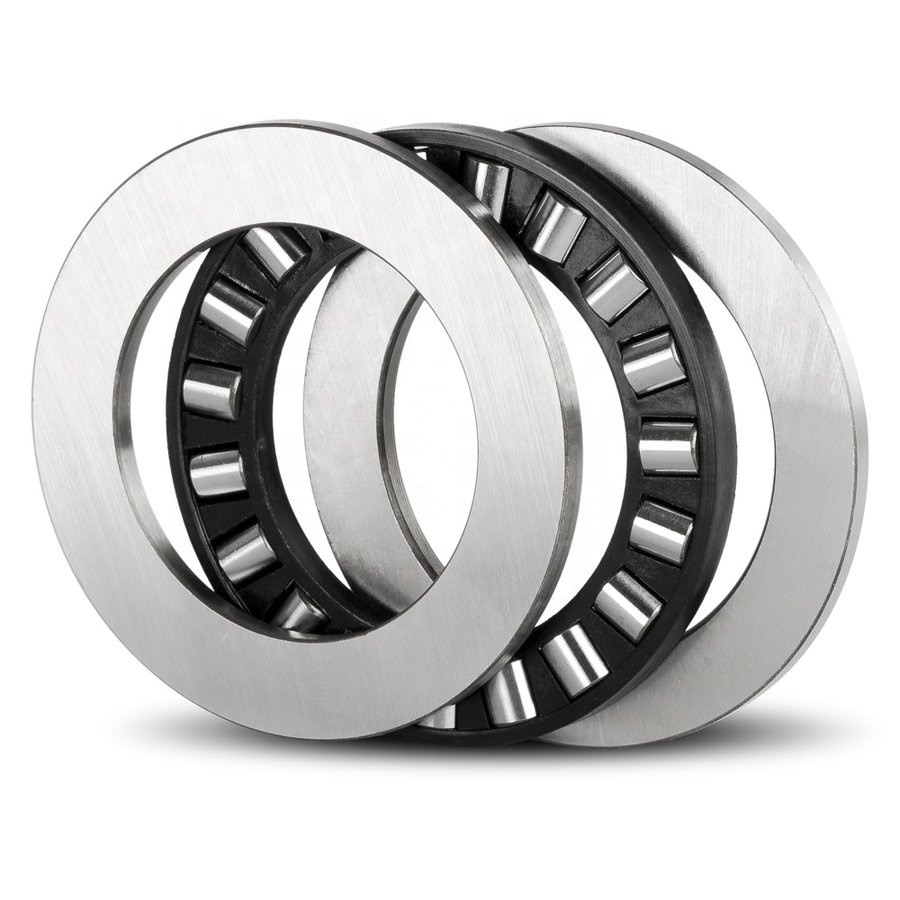

Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

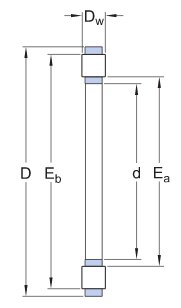

K81100 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  K 81102 TN  15  28
  3.5  11.2  27  4 300  8 500
  K 81103 TN  17  30
  3.5  12.2  31.5  4 300  8 500
  K 81104 TN  20  35
  4.5  18.6  48  3 800  7 500
  K 81105 TN  25  42
  5  25  69.5  3 200  6 300
  K 81106 TN  30  47
  5  27  78  3 000  6 000
  K 81107 TN  35  52
  5  29  93  2 800  5 600
  K 81108 TN  40  60
  6  43  137  2 400  5 000
  K 81109 TN  45  65
  6  45  153  2 200  4 500
  K 81110 TN  50  70
  6  47.5  166  2 200  4 300
  K 81111 TN  55  78
  6  69.5  285  1 900  3 800
  K 81112 TN  60  85
  7.5  80  300  1 800  3 600
  K 81113 TN  65  90
  7.5  83  320  1 700  3 400
  K 81114 TN  70  95
  7.5  86.5  345  1 700  3 400
  K 81115 TN  75  100
  7.5  83  335  1 600  3 200
  K 81116 TN  80  105
  7.5  81.5  335  1 500  3 000
  K 81117 TN  85  110
  7.5  88  365  1 500  3 000
  K 81118 TN  90  120
  9  110  450  1 300  2 600
  K 81120 TN  100  135
  11  156  630  1 200  2 400
  K 81122 TN  110  145
  11  163  680  1 100  2 200
  K 81124 TN  120  155
  11  170  735  1 100  2 200
  K 81128 TN  140  180
  12  208  930  900  1 800
  K 81130 TN  150  190
  12  212  1 000  850  1 700
  K 81132 TN  160  200
  12  216  1 020  850  1 700
  K 81134 TN  170  215
  14  285  1 340  800  1 600
  K 81136 M  180  225
  14  270  1 270  750  1 500
  K 81138 M  190  240
  15  310  1 460  700  1 400
  K 81140 M  200  250
  15  310  1 500  700  1 400
  K 81144 M  220  270
  15  335  1 700  670  1 300
  K 81148 M  240  300
  18  475  2 450  560  1 100
  K 81152 M  260  320
  18  490  2 600  530  1 100
  K 81156 M  280  350
  22  680  3 550  480  950
  K 81160 M  300  380
  25  850  4 400  430  850
  K 81168 M  340  420
  25  900  4 900  380  800
