Home / Products / Cylindrical Roller Thrust Bearing
89100 Series
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

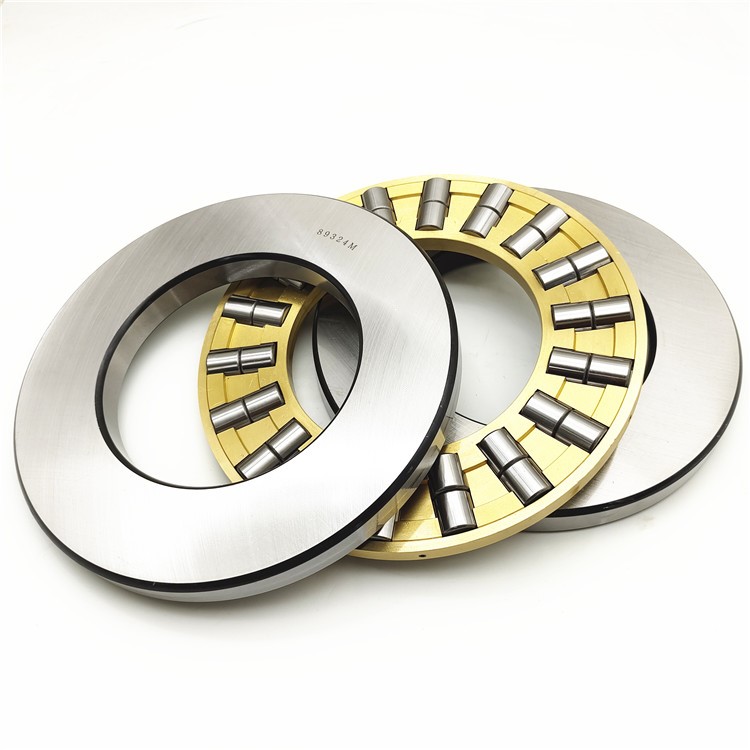

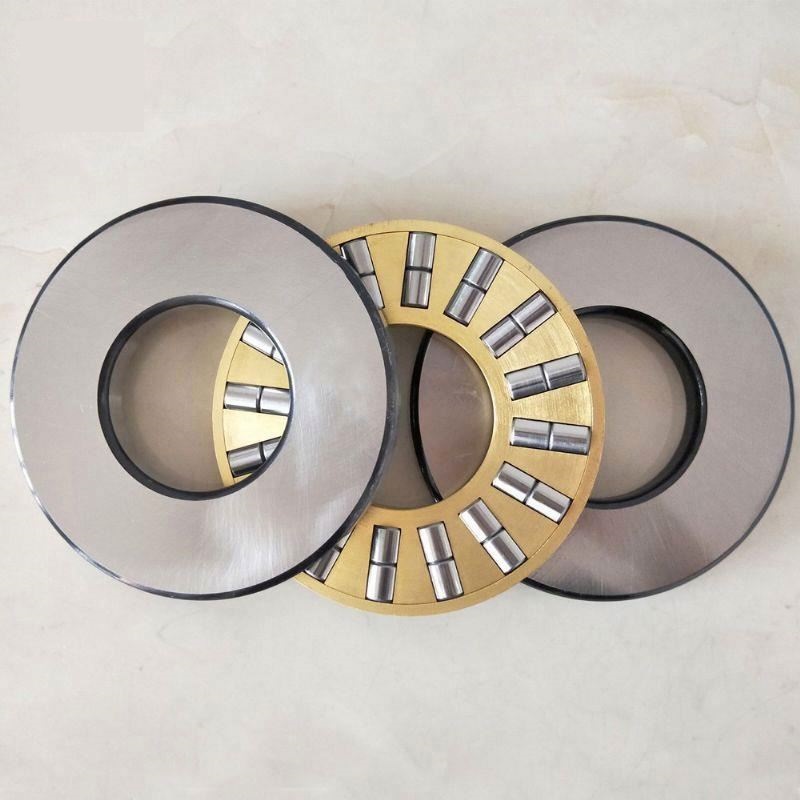

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

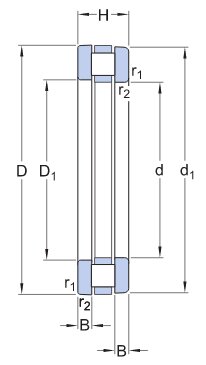

89100 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  89172 M  360  440  48
  680  4 150  400  800
  89176 M  380  460  48
  710  4 400  400  800
  89180 M  400  480  48
  735  4 650  400  800
  89184 M  420  500  48
  765  4 900  380  750
  89188 M  440  540  60
  1 040  6 400  320  630
  89192 M  460  560  60
  1 080  6 700  320  630
  89196 M  480  580  60
  1 100  6 950  320  630
  891/500 M  500  600  60
  1 220  8 150  300  600
  891/530 M  530  640  67
  1 370  8 800  280  560
  891/560 M  560  670  67
  1 370  9 150  280  530
  891/600 M  600  710  67
  1 430  9 650  260  530
  891/630 M  630  750  73
  1 630  11 200  240  480
  891/670 M  670  800  78
  2 000  13 400  220  450
  891/710 M  710  850  85
  2 200  15 000  200  400
  891/750 M  750  900  90
  2 400  16 600  190  380
  891/800 M  800  950  90
  2 500  18 000  190  380
  891/850 M  850  1 000  90
  2 600  19 000  180  360
  891/900 M  900  1 060  95
  3 050  22 000  170  340
  891/950 M  950  1 120  103
  3 450  25 000  160  300
  891/1000 M  1 000  1 180  109
  3 900  28 500  150  280
  891/1060 M  1 060  1 250  115
  4 150  31 000  140  260
  891/1120 M  1 120  1 320  122
  4 900  36 500  130  260
