Home / Products / Cylindrical Roller Thrust Bearing
89400 Series
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

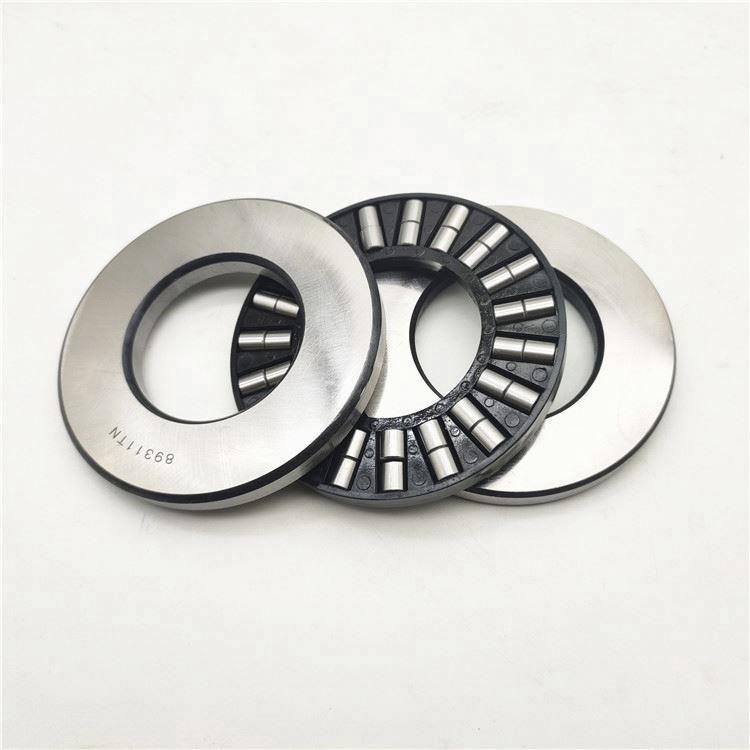

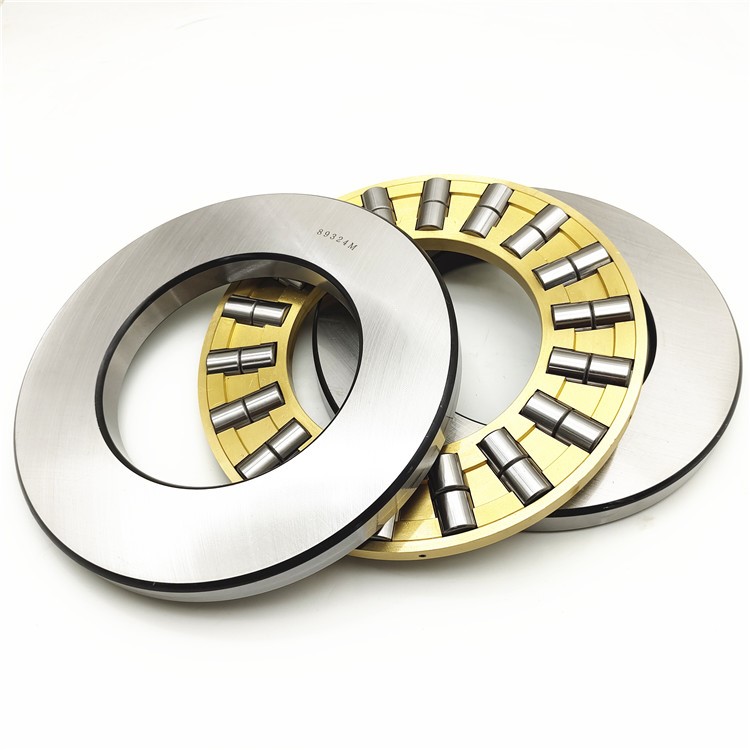

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

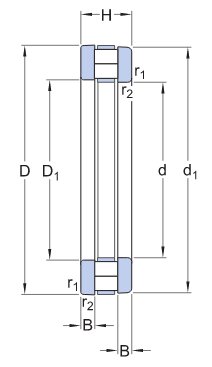

89400 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  89412 TN  60  130  42
  310  1 180  1 200  2 400
  89413 TN  65  140  45
  355  1 370  1 100  2 200
  89414 TN  70  150  48
  380  1 460  1 000  2 000
  89415 M  75  160  51
  400  1 530  950  1 900
  89416 M  80  170  54
  440  1 730  900  1 800
  89417 M  85  180  58
  490  1 930  850  1 700
  89418 M  90  190  60
  540  2 120  800  1 600
  89420 M  100  210  67
  680  2 800  700  1 400
  89422 M  110  230  73
  800  3 350  630  1 300
  89424 M  120  250  78
  930  3 900  600  1 200
  89426 M  130  270  85
  1 060  4 500  530  1 100
  89428 M  140  280  85
  1 100  4 800  530  1 100
  89430 M  150  300  90
  1 250  5 600  500  1 000
  89432 M  160  320  95
  1 430  6 400  480  950
  89434 M  170  340  103
  1 600  7 200  430  850
  89436 M  180  360  109
  1 760  8 000  400  800
  89438 M  190  380  115
  1 960  9 000  380  750
  89440 M  200  400  122
  2 160  10 000  360  700
  89444 M  220  420  122
  2 320  11 200  340  700
  89448 M  240  440  122
  2 400  12 000  340  670
  89452 M  260  480  132
  2 850  14 300  300  630
  89456 M  280  520  145
  3 550  15 300  280  560
  89460 M  300  540  145
  3 450  18 000  280  530
