Home / Products / Cylindrical Roller Thrust Bearing

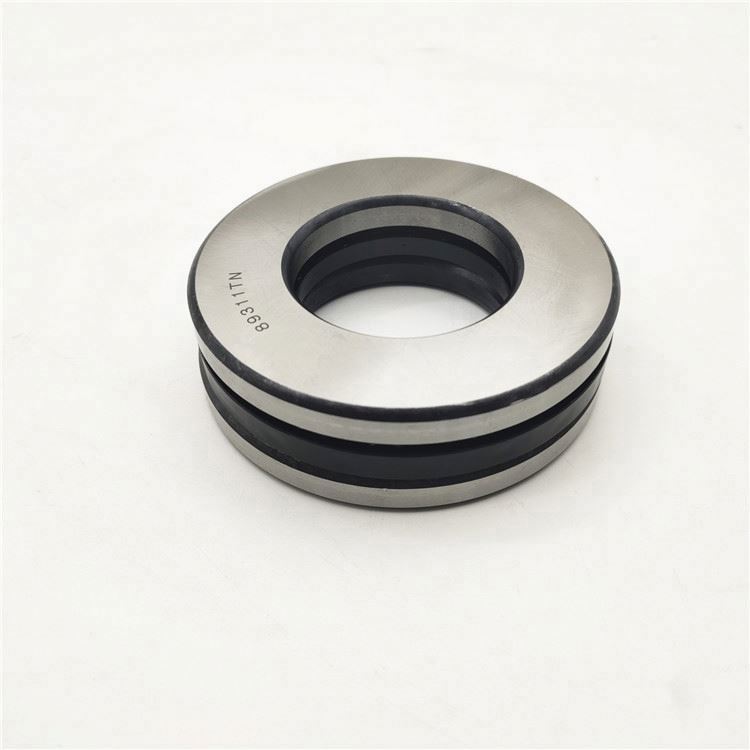

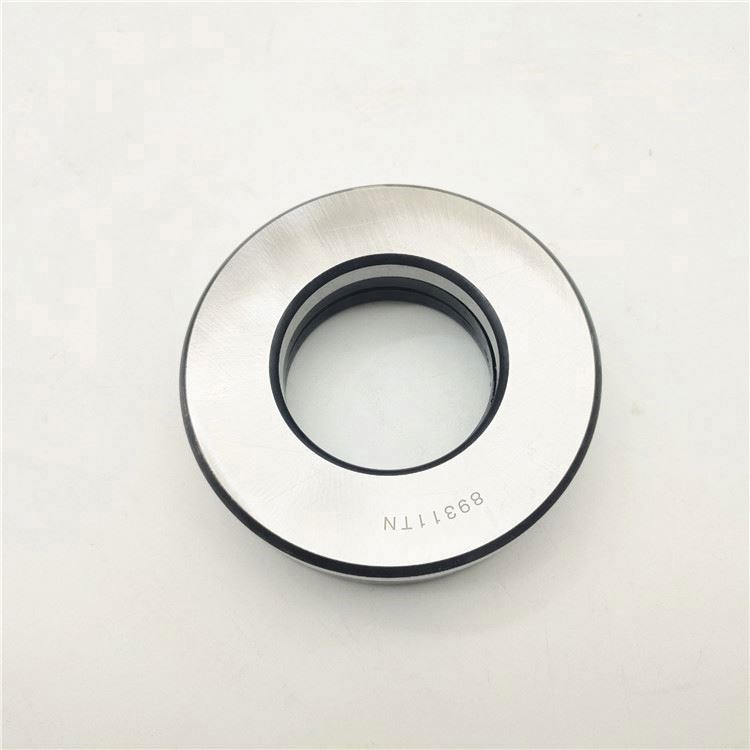

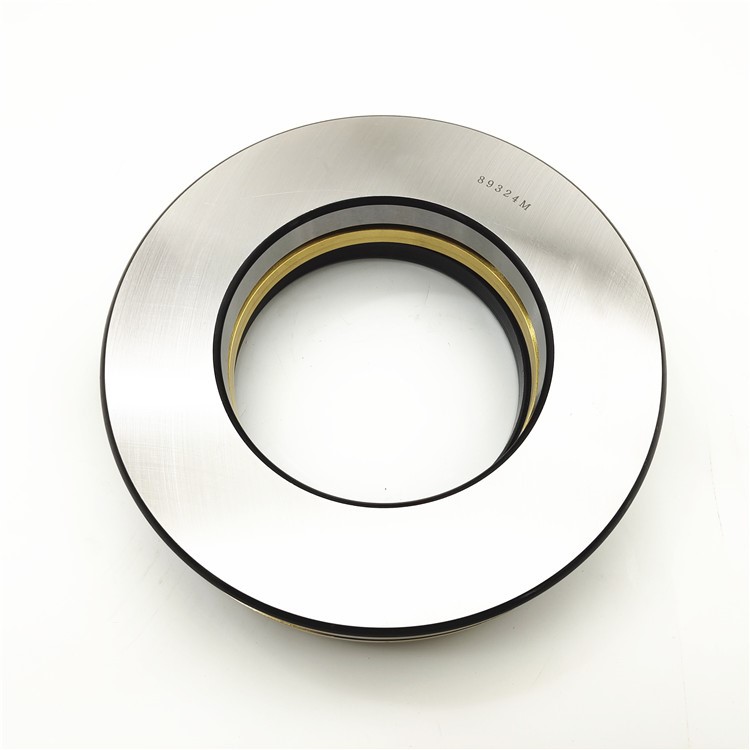

89300 Series
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

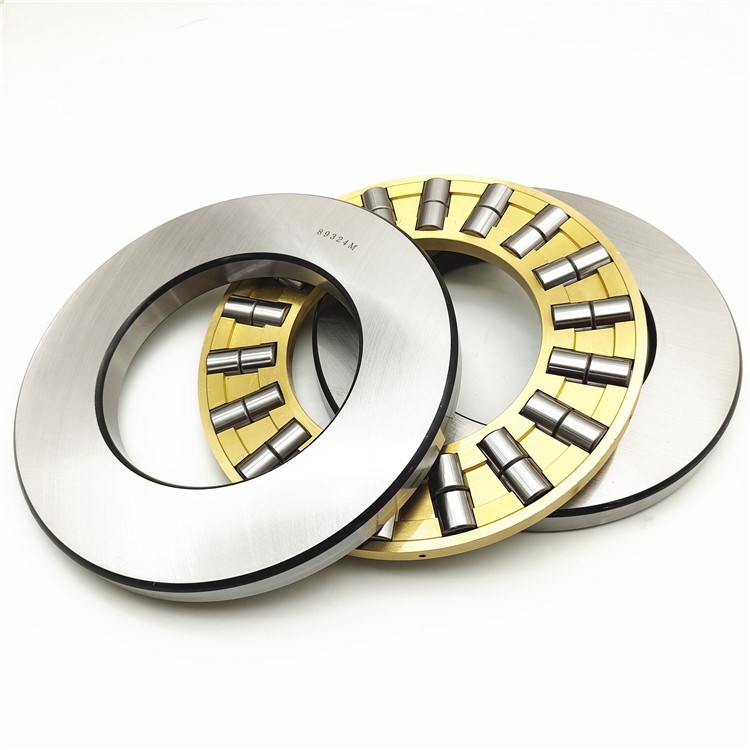

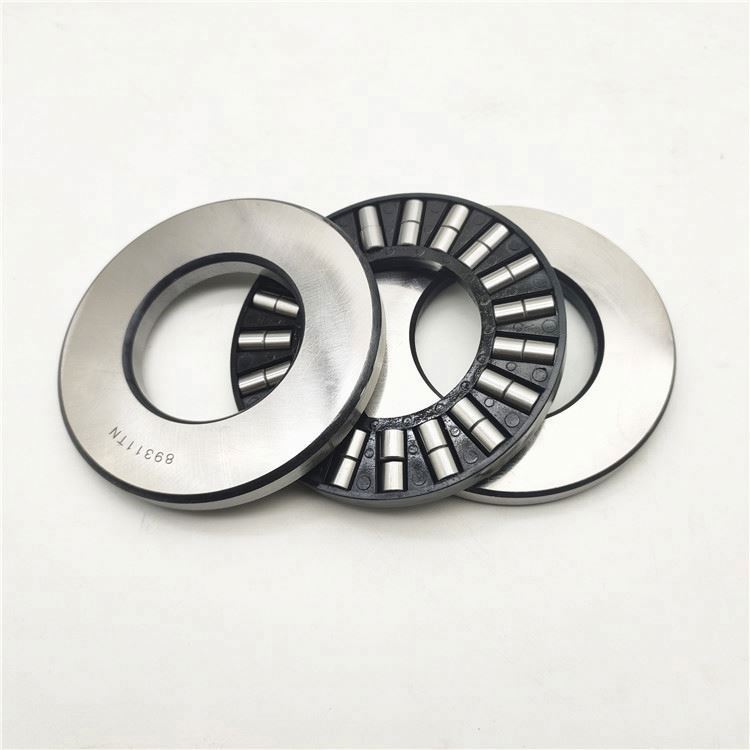

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

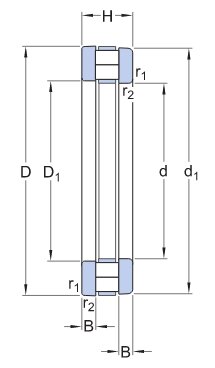

89300 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  89306 TN  30  60  18
  52  183  2 600  5 300
  89308 TN  40  78  22
  95  365  2 000  4 000
  89309 TN  45  85  24
  108  425  1 800  3 600
  89311 TN  55  105  30
  143  570  1 500  3 000
  89312 TN  60  110  30
  153  640  1 400  2 800
  89313 TN  65  115  30
  153  640  1 400  2 800
  89314 TN  70  125  34
  186  800  1 300  2 600
  89315 TN  75  135  36
  228  965  1 200  2 400
  89316 TN  80  140  36
  240  1 060  1 200  2 400
  89317 M  85  150  39
  255  1 100  1 100  2 200
  89318 M  90  155  39
  265  1 160  1 000  2 000
  89322 M  110  190  48
  400  1 830  850  1 700
  89326 M  130  225  58
  560  2 650  700  1 400
  89328 M  140  240  60
  640  3 100  670  1 300
  89330 M  150  250  60
  670  3 250  630  1 300
