Home / Products / Cylindrical Roller Thrust Bearing

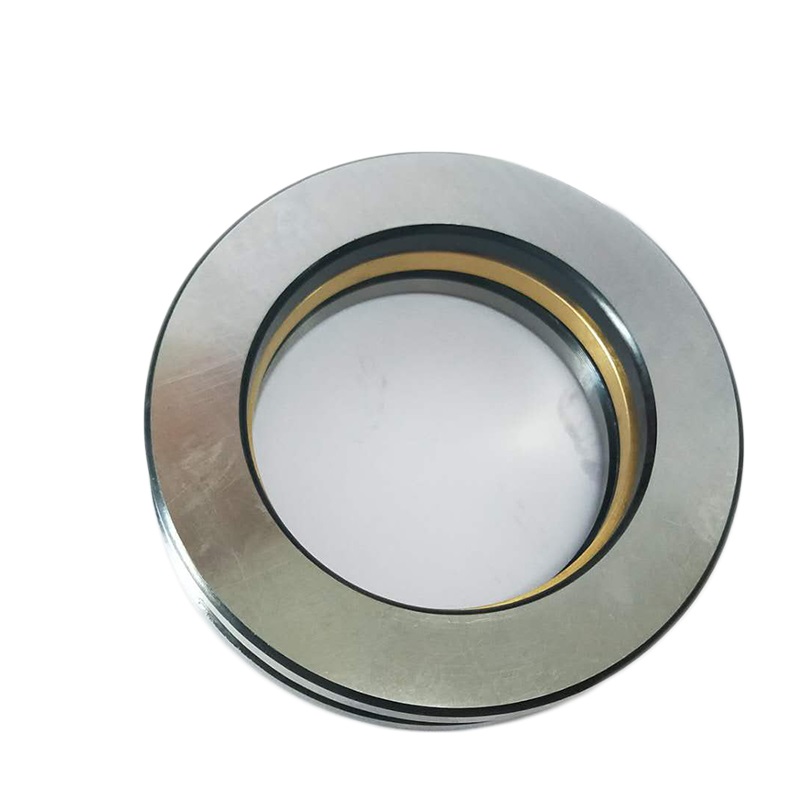

81200 Series
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

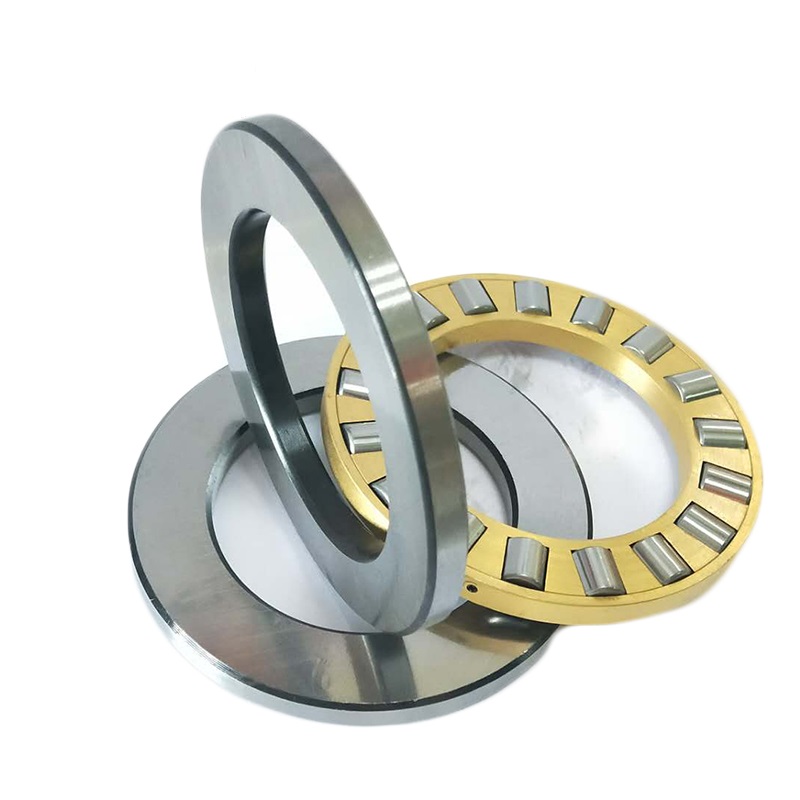

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

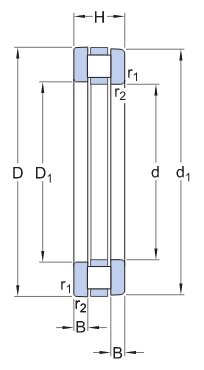

81200 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  81206 TN  30  52  16
  50  134  2 400  4 800
  81207 TN  35  62  18
  62  190  2 000  4 000
  81208 TN  40  68  19
  83  255  1 900  3 800
  81209 TN  45  73  20
  83  255  1 800  3 600
  81210 TN  50  78  22
  91.5  300  1 700  3 400
  81211 TN  55  90  25
  122  390  1 400  2 800
  81212 TN  60  95  26
  137  465  1 400  2 800

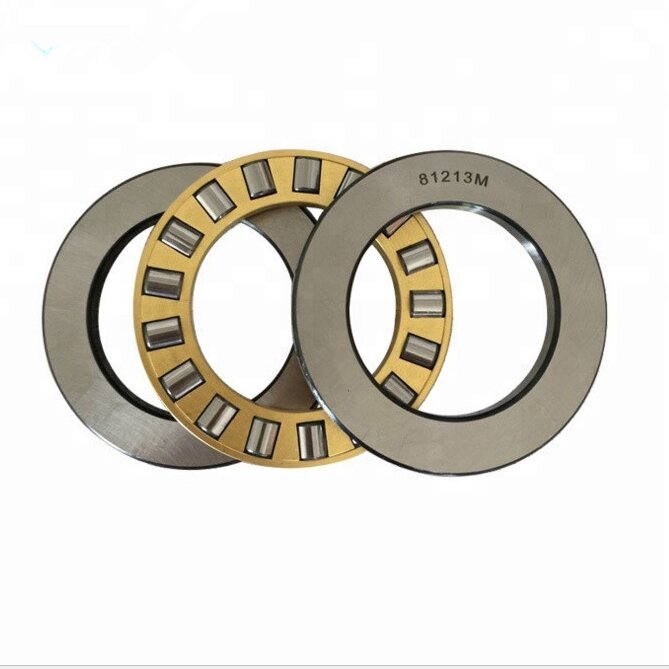

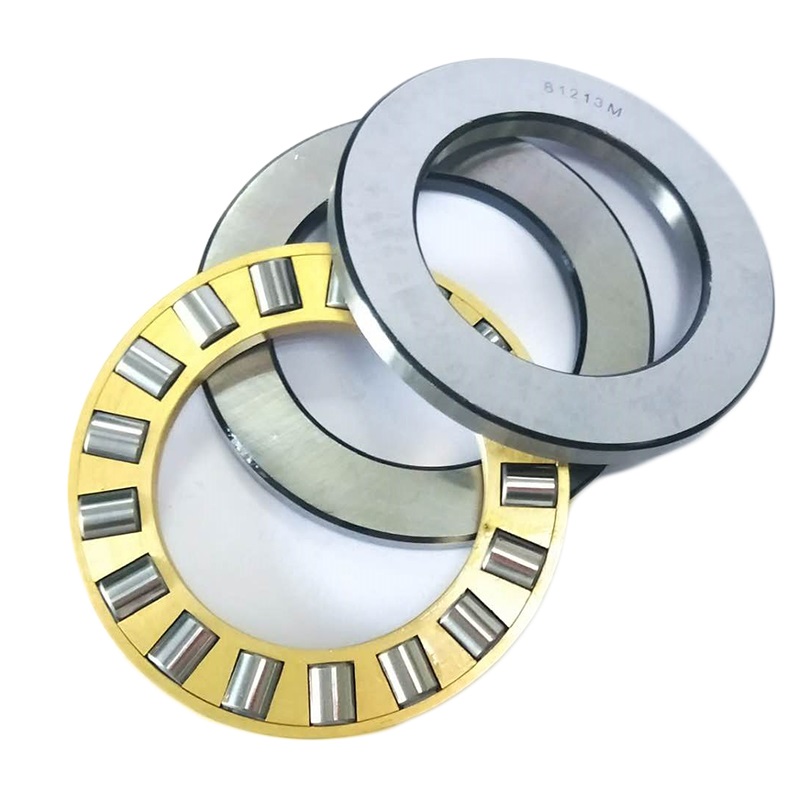

  81213 TN  65  100  27
  140  490  1 300  2 600
  81214 TN  70  105  27
  146  530  1 300  2 600
  81215 TN  75  110  27
  137  490  1 200  2 400
  81216 TN  80  115  28
  160  610  1 200  2 400
  81217 TN  85  125  31
  170  640  1 100  2 200
  81218 TN  90  135  35
  232  865  1 000  2 000
  81220 TN  100  150  38
  270  1 060  900  1 800
  81222 TN  110  160  38
  260  1 000  850  1 700
  81224 TN  120  170  39
  255  1 000  800  1 600
  81226 TN  130  190  45
  380  1 460  700  1 400
  81228 M  140  200  46
  360  1 400  700  1 400
  81230 M  150  215  50
  465  1 900  630  1 300
  81232 M  160  225  51
  480  2 000  600  1 200
  81234 M  170  240  55
  540  2 280  560  1 100
  81236 M  180  250  56
  550  2 400  560  1 100
  81238 M  190  270  62
  695  2 900  500  1 000
  81240 M  200  280  62
  720  3 100  500  1 000
  81244 M  220  300  63
  750  3 350  480  950
  81248 M  240  340  78
  1 100  4 900  400  800
  81252 M  260  360  79
  1 140  5 300  380  750
  81264 M  320  440  95
  1 530  7 200  300  600
  81268 M  340  460  96
  1 600  7 800  300  600
  81272 M  360  500  110
  2 040  9 650  260  530
  81276 M  380  520  112
  2 080  10 000  260  500
  81280 M  400  540  112
  2 120  10 400  240  500
  81288 M  440  600  130
  2 900  14 600  220  430
  81292 M  460  620  130
  2 700  13 400  200  430
  81296 M  480  650  135
  3 350  17 000  200  400
  812/500 M  500  670  135
  3 200  16 300  190  380
  812/530 M  530  710  140
  3 650  18 600  180  360
  812/560 M  560  750  150
  3 800  20 000  170  340
  812/600 M  600  800  160
  4 400  24 000  160  320
  812/630 M  630  850  175
  4 800  26 000  140  280
  812/670 M  670  900  180
  5 700  30 500  140  280
  812/710 M  710  950  190
  5 850  32 000  130  260
  812/750 M  750  1 000  195
  6 550  36 000  120  240
  812/800 M  800  1 060  205
  7 350  40 500  110  220
  812/850 M  850  1 120  212
  8 150  45 500  110  220
  812/900 M  900  1 180  220
  8 500  49 000  100  200
  812/950 M  950  1 250  236
  10 000  58 500  90  180
  812/1000 M  1 000  1 320  250
  10 200  60 000  85  170
  812/1060 M  1 060  1 400  265
  12 000  71 000  75  150
