Home / Products / Cylindrical Roller Thrust Bearing

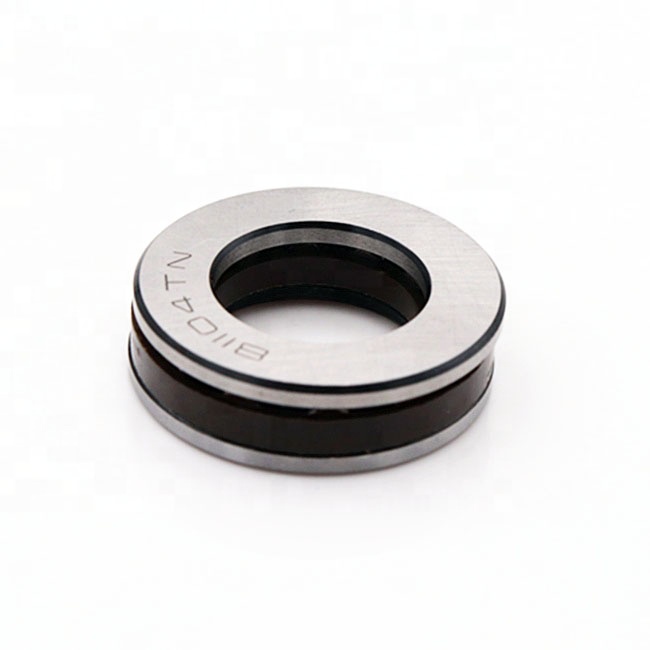

81100 Series
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Request a Quote
Product Description

Features

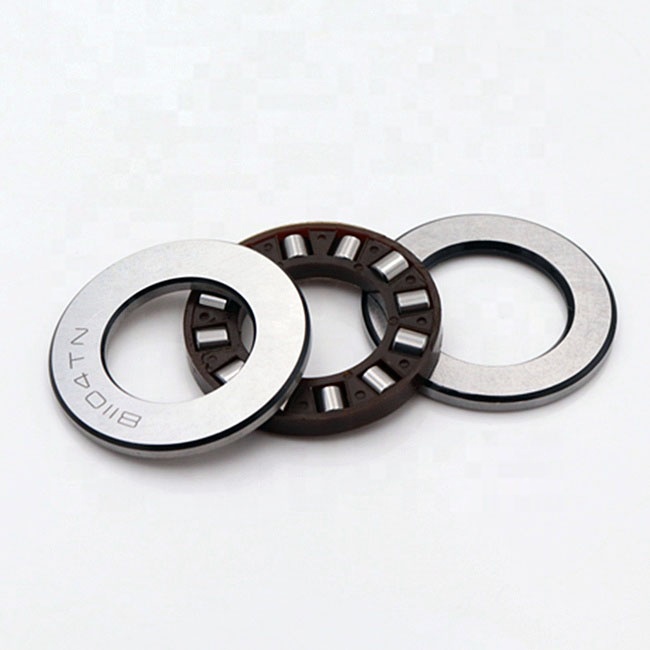

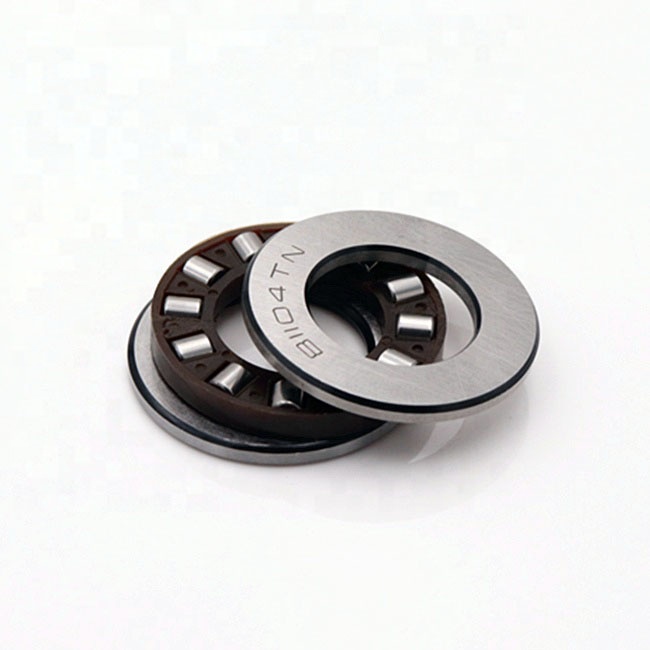

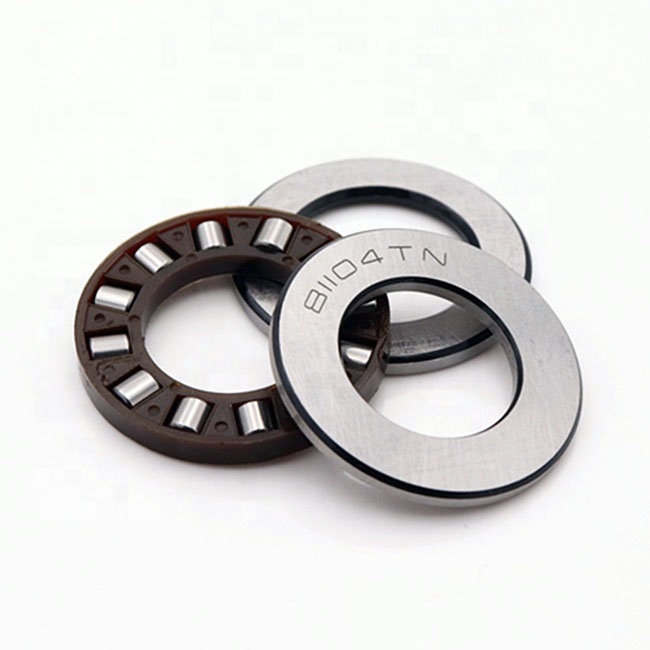

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

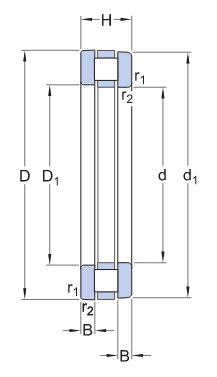

81100 gongchengtu.jpg


Bearing No.Boundary dimensionsBasic load ratingsSpeed ratings
mmDynamicStaticReference speedLimiting speed
dDHDwC[kN]C0[kN][r/min][r/min]
  81102 TN  15  28  9
  11.2  27  4 300  8 500
  81103 TN  17  30  9
  12.2  31.5  4 300  8 500
  81104 TN  20  35  10
  18.6  48  3 800  7 500
  81105 TN  25  42  11
  25  69.5  3 200  6 300
  81106 TN  30  47  11
  27  78  3 000  6 000
  81107 TN  35  52  12
  29  93  2 800  5 600
  81108 TN  40  60  13
  43  137  2 400  5 000
  81109 TN  45  65  14
  45  153  2 200  4 500
  81110 TN  50  70  14
  47.5  166  2 200  4 300
  81111 TN  55  78  16
  69.5  285  1 900  3 800
  81112 TN  60  85  17
  80  300  1 800  3 600
  81113 TN  65  90  18
  83  320  1 700  3 400
  81114 TN  70  95  18
  86.5  345  1 700  3 400
  81115 TN  75  100  19
  83  335  1 600  3 200
  81116 TN  80  105  19
  81.5  335  1 500  3 000
  81117 TN  85  110  19
  88  365  1 500  3 000
  81118 TN  90  120  22
  110  450  1 300  2 600
  81120 TN  100  135  25
  156  630  1 200  2 400
  81122 TN  110  145  25
  163  680  1 100  2 200
  81124 TN  120  155  25
  170  735  1 100  2 200
  81126 TN  130  170  30
  200  880  950  1 900
  81128 TN  140  180  31
  208  930  900  1 800
  81130 TN  150  190  31
  212  1 000  850  1 700
  81132 TN  160  200  31
  216  1 020  850  1 700
  81134 TN  170  215  34
  285  1 340  800  1 600
  81136 M  180  225  34
  270  1 270  750  1 500
  81138 M  190  240  37
  310  1 460  700  1 400
  81140 M  200  250  37
  310  1 500  700  1 400
  81144 M  220  270  37
  335  1 700  670  1 300
  81148 M  240  300  45
  475  2 450  560  1 100
  81152 M  260  320  45
  490  2 600  530  1 100
  81156 M  280  350  53
  680  3 550  480  950
  81160 M  300  380  62
  850  4 400  430  850
  81164 M  320  400  63
  880  4 650  400  800
  81168 M  340  420  64
  900  4 900  380  800
  81172 M  360  440  65
  900  4 900  380  750
  81176 M  380  460  65
  900  5 000  360  750
  81184 M  420  500  65
  980  5 850  340  700
  81188 M  440  540  80
  1 430  8 000  300  600
  81192 M  460  560  80
  1 460  8 500  300  600
  81196 M  480  580  80
  1 460  8 500  280  560
  811/500 M  500  600  80
  1 560  9 300  280  560
  811/530 M  530  640  85
  1 730  10 600  260  530
  811/560 M  560  670  85
  1 760  11 000  260  500
  811/600 M/HB1  600  710  85
  1 800  11 600  240  500
  811/630 M  630  750  95
  2 160  13 700  220  450
  811/670 M  670  800  105
  2 550  16 300  200  400
  811/750 M  750  900  120
  3 250  21 200  170  340
  811/800 M  800  950  120
  3 450  22 000  170  340
  811/850 M  850  1 000  120
  3 450  23 200  160  320
  811/900 M  900  1 060  130
  4 000  27 000  150  300
  811/950 M  950  1 120  135
  4 400  30 000  140  280
  811/1000 M  1 000  1 180  140
  4 750  32 500  130  260
  811/1060 M  1 060  1 250  150
  5 300  37 500  120  240
  811/1120 M  1 120  1 320  160
  6 000  41 500  110  220
