Home / Products / Deep Groove Ball Bearing

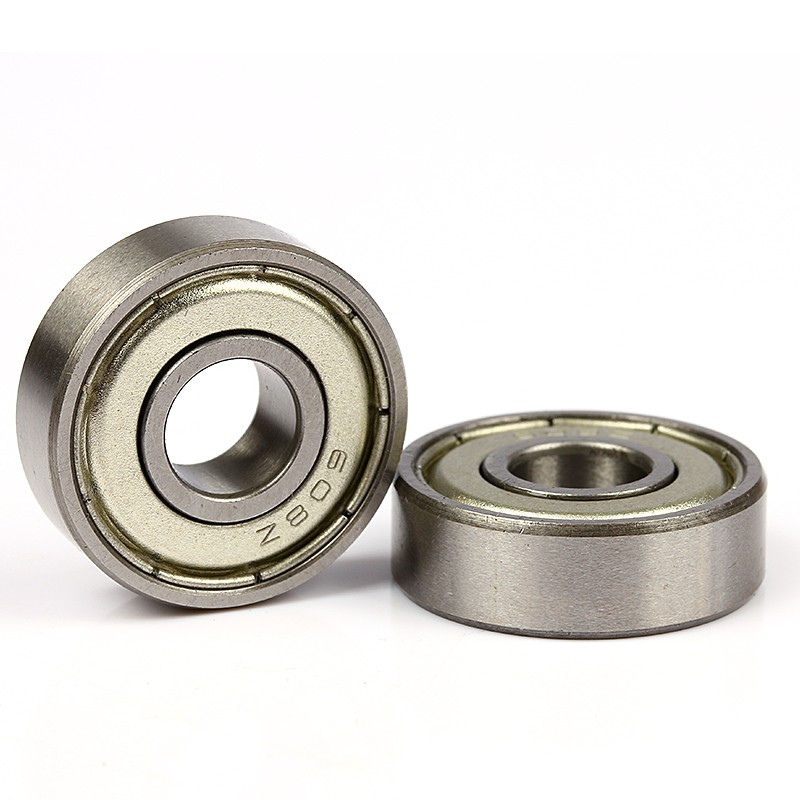

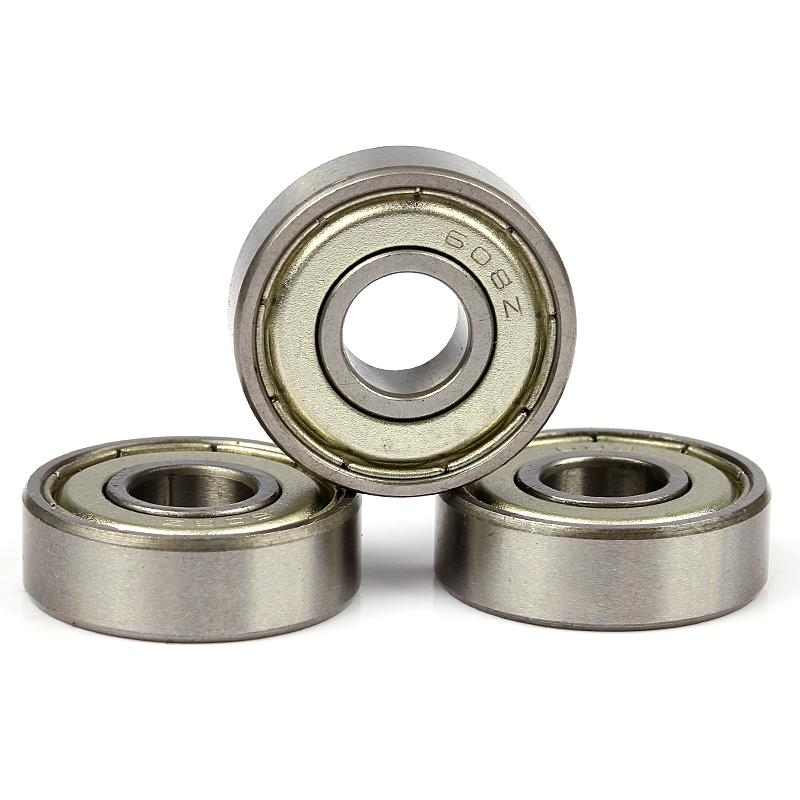

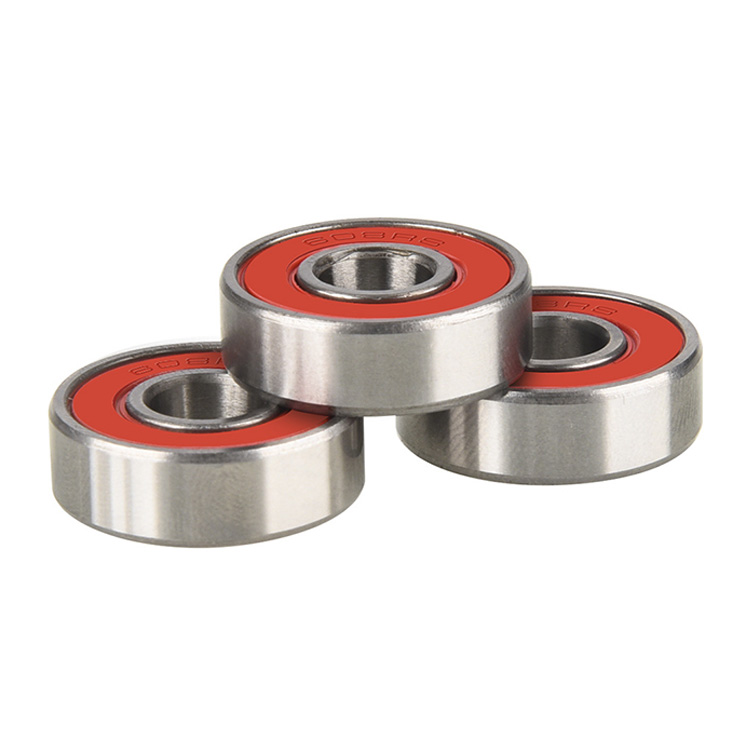

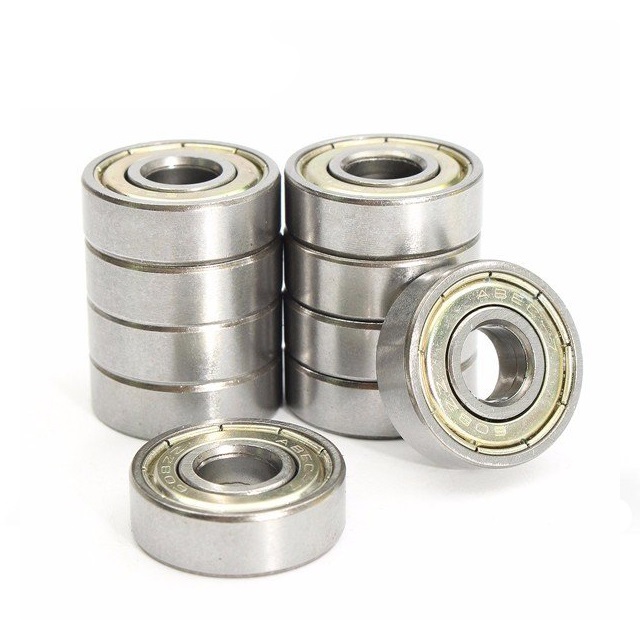

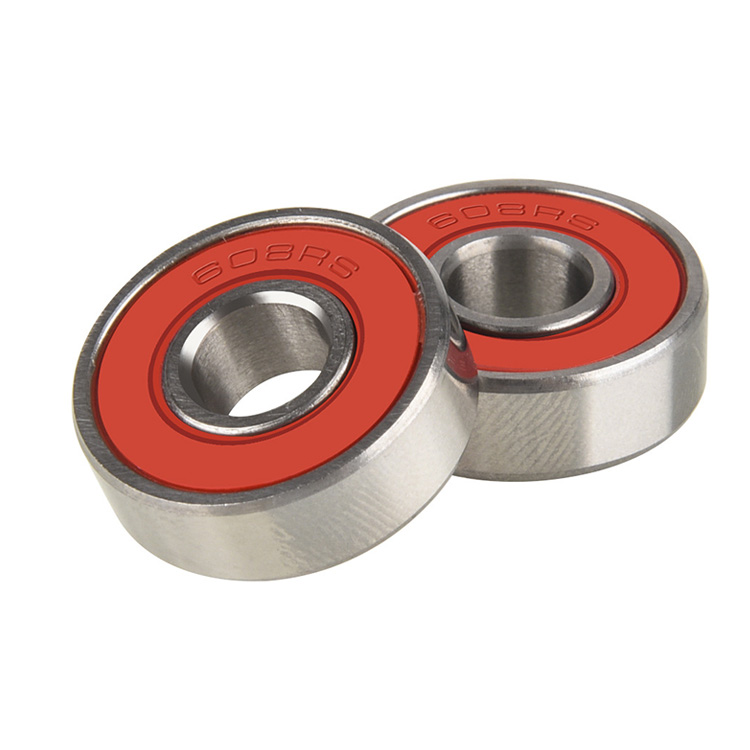

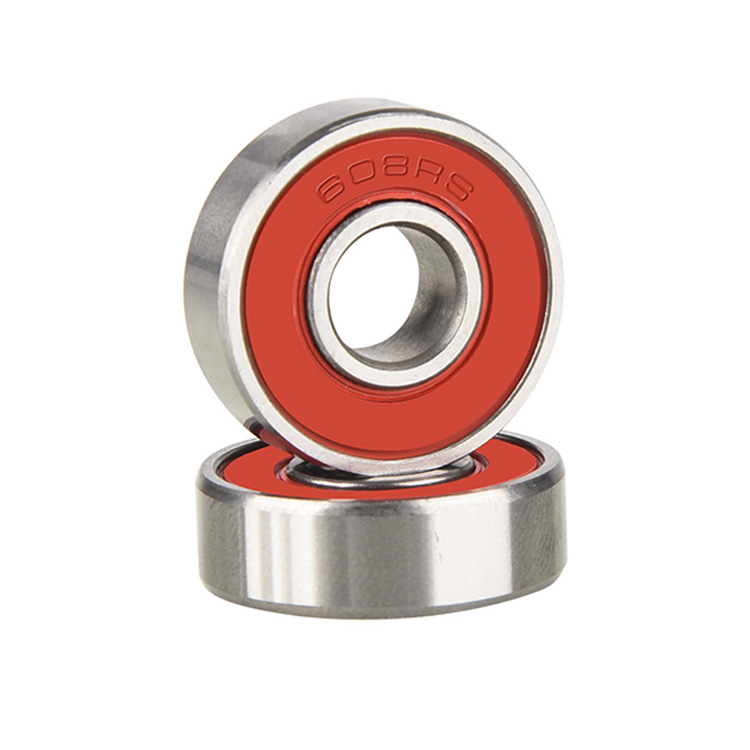

Miniature Series
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, besides open type bearings, shield or seals at both side can also be provided.
Request a Quote
Product Description

Features
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

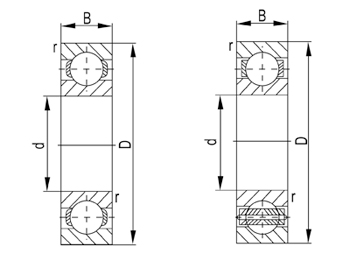

deep groove ball bearings gongcheng.jpg


Bearing No.Boundary dimensionsBasic load ratings (kN)Limiting speedMass
mmDynamicStaticrpmg
dDBrs minCrCorGreaseOil≈
60/1.51.562.50.152748671,00084,0000.350
602272.80.1538012562,00073,0000.540
60/2.52.582.80.1555017456,00066,0000.720
6033930.1563521950,00059,0000.920
60441240.297036043,00051,0002.100
60551450.21,33050539,00046,0003.500
60661760.32,19086535,00042,0006.000
60771960.32,24091034,00040,0008.000
60882270.33,3501,40032,00037,00012.000
60992470.33,4001,45031,00036,00014.000










62331040.1564022450,00058,0001.600
62441350.21,31049042,00049,0003.200
62551650.31,76068037,00044,0004.800
62661960.32,34088534,00040,0008.100
62772270.33,3501,40032,00037,00013.000
62882480.34,0001,59031,00036,00017.000
62992680.64,5501,96030,00035,00020.000










67/2.52.551.50.081535970,00082,0000.110
6733620.082429460,00071,0000.200
6744720.082228854,00063,0000.280
6755820.082179149,00057,0000.320
6766102.50.146519643,00051,0000.650
6777112.50.155526940,00047,0000.670
6788122.50.151525238,00045,0000.750
67991430.192046536,00042,0001.400










6811310.058022120,000140,0000.050
68/1.51.541.20.151022988,000100,0000.070
682251.50.081715174,00087,0000.130
68/2.52.561.80.082097365,00076,0000.220
6833720.139013058,00068,0000.330
684492.50.1564022449,00057,0000.670
68551130.1571528243,00051,0001.100
6866133.50.151,08044039,00046,0001.900
6877143.50.151,17050537,00044,0002.100
68881640.21,61071535,00041,0003.100
68991740.21,72082033,00039,0003.200










691141.60.11574396,000110,0000.110
69/1.51.5520.151715179,00093,0000.180
692262.30.152798967,00079,0000.310
69/2.52.572.50.152849659,00070,0000.430
6933830.1556018054,00063,0000.610
69441140.1571527645,00052,0001.800
69551340.21,08043040,00047,0002.400
69661550.21,35053037,00044,0003.800
69771750.31,61071535,00041,0005.200
69881960.31,99086533,00039,0007.300
69992060.32,4801,09032,00038,0008.200
